CB-17749:

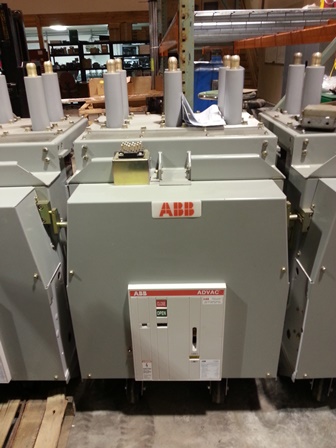

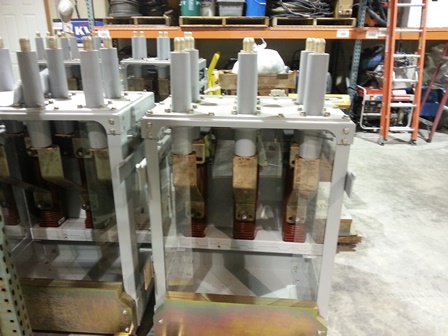

ONE (1) 1200 AMP ABB VACUUM RETRO-FIT CIRCUIT BREAKER FOR GE AM13.8-500-12
TYPE RADVAC
13.8 KV
15 KV MAX.
25 KA SHORT CIRCUIT @ 15 KV
1.0 K VOLTAGE RANGE FACTOR
95 KV BIL
50/60 HERTZ
3-5 CYCLE INTERRUPTING TIME
48 VDC CONTROL VOLTAGE
MFG. 2009
36 OPERATIONS
S/N 1VAFTENS0724005J09
415 KG.
WIRING DIAGRAM - MGEE50000
INST. BOOK 1VAF101304
CAPACITOR SWITCHING DETAILS -
250 AMP RATING
25 CABLE CHARGING
