CB-17963:

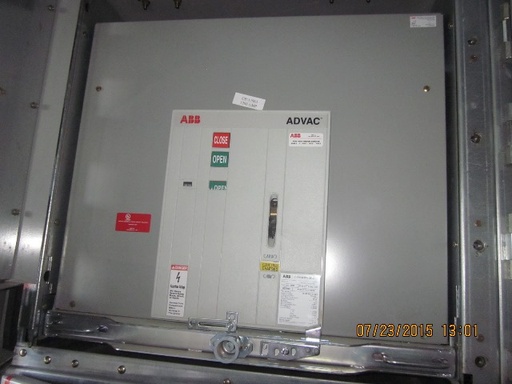

ONE (1) UNUSED 1200 AMP ABB ADVAC VACUUM CIRCUIT BREAKER

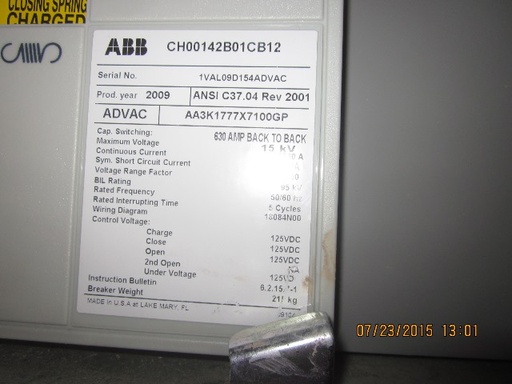

TYPE AA3K1777X7100GP
CH00142B01CB12
ANSI C37.04, REV. 2001
CAP. SWITCHING:
630 AMP BACK TO BACK
15 KV MAX. VOLTAGE
50 KA
1.0 K FACTOR
95 KV BIL
50/60 HERTZ
5 CYCLE
125 VDC CHARGE, OPEN & CLOSE
125 VDC UNDERVOLTAGE TRIP
S/N 1VAL09D154ADVAC
MFG. 2009
215 KG.
UL & DEFINITE PURPOSE CAPACITY SWITCHING BACK TO BACK
INSTRUCTION BULLETIN 6.2.15.7-1
