CB-18528 & ABC THRU CB-18531 & A

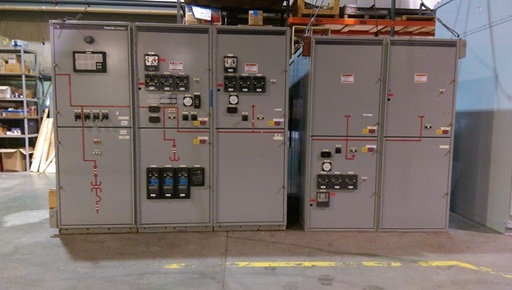

2000 AMP GENERAL ELECTRIC INDOOR SWITCHGEAR LINE-UP CONSISTING OF:
CB-18528C (BOTTOM COLUMN 1):
1 X FUSE DRAWER IN FRONT
3 X 4160 V, 120/24V, 25 KVA SINGLE PHASE CPT'S
1 X ENUNCIATOR PANEL
CB-18528B (BOTTOM COLUMN 2):
3 X GE JVM-3 PT DRAWER, 4160 V, SINGLE PHASE, 35:1
3 X TRANSFORMER TYPE STD DIFFERENTIAL RELAYS
1 X NGV RELAY
CB-18528 & A (TOP COLUMN 2);
1 X 2000 AMP GENERAL ELECTRIC TYPE VB1 4.16-250-3 VACUUM BREAKER
6 X 2000:5 CT'S
3 X IFC RELAYS
1 X DIFC RELAY
1 X PQM METER
1 X VOLT METER & CONTROL SWITCH
1 X 63X SUDDEN PRESSURE RELAY
1 X LOCKOUT RELAY
CB-18529& A (TOP COLUMN 3 - BOTTOM BLANK):
1 X 2000 AMP GENERAL ELECTRIC TYPE VB1 4.16-250-3 VACUUM BREAKER
3 X IFC RELAYS
1 X DIFC RELAY 55G
3 X 2000:5 CT'S
1 X 50:5A TYPE JCG-O CT
CB-18530 & A (BOTTOM COLUMN 4 - TOP BLANK):
1 X 2000 AMP GENERAL ELECTRIC TYPE VB1 4.16-250-3 VACUUM BREAKER
3 X IFC RELAYS
1 X DIFC RELAY
CB-18531 & A (TOP COLUMN 5 - BOTTOM BLANK):
1 X 1200 AMP GENERAL ELECTRIC TYPE VB1 4.16-250-3 VACUUM BREAKER
1 X 50:5A TYPE JCG-O CT
