CB-18486 & A:

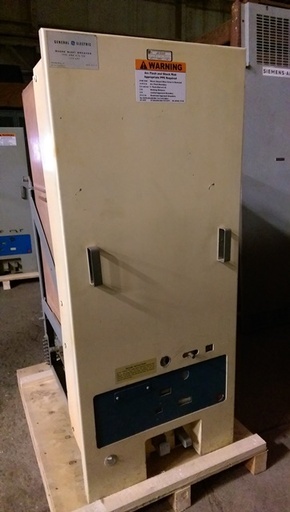

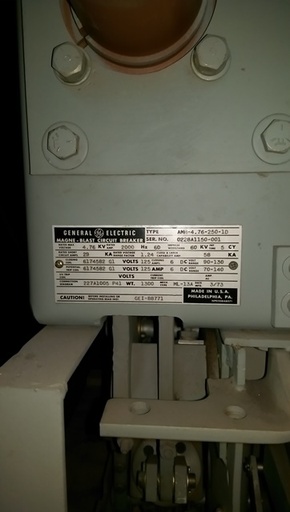

ONE (1) 2000 AMP GENERAL ELECTRIC MAGNE-BLAST CIRCUIT BREAKER
TYPE AMH-4.76-250-0D
SERIAL NO. 0228A1150-001
MAX RATING 4760 V
60 CYCLES
BIL 60 KV
INTERRUPTING TIME 5 CYCLE
RATED SHORT CIRCUIT AMPS 29000
RATED VOLTAGE RANGE FACTOR 1.24
CLOSE & LATCH 58 KA
MECHANISM ML-13A
125 VDC CLOSE AND TRIP
CONNECTION DIAGRAM 227A1005 P41
WEIGHT 1,300 LBS.
INSTRUCTION BOOKLET GEI-88771
CB-18486A:
INDOOR MAGNEBLAST SWITCHGEAR CABINET
1 X BREAKER CONTROL HANDLE
1 X SET OF INDICATING LIGHTS
