CB-18485:

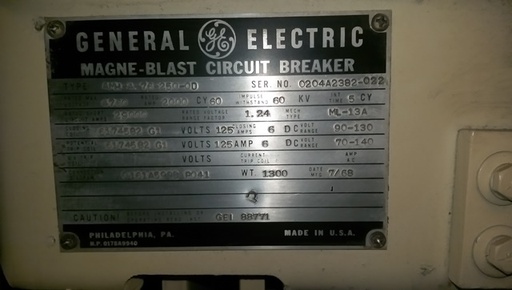

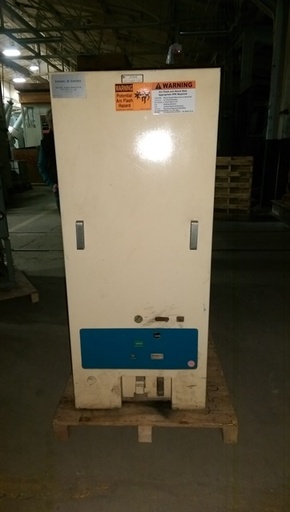

ONE (1) 2000 AMP GENERAL ELECTRIC MAGNE-BLAST CIRCUIT BREAKER
TYPE AMH-4.76-250-0D
SERIAL NO. 0204A2382-022
MAX RATING 4760 V
60 CYCLES
BIL 60 KV
INTERRUPTING TIME 5 CYCLE
RATED SHORT CIRCUIT AMPS 29000
RATED VOLTAGE RANGE FACTOR 1.24
MECHANISM ML-13A
125 VDC CLOSE AND TRIP
CONNECTION DIAGRAM 0161A5998 PO41
WEIGHT 1,300 LBS.
INSTRUCTION BOOKLET GEI88771
