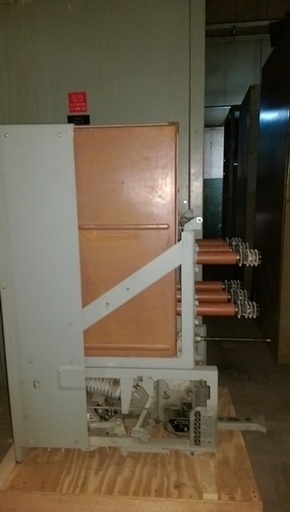

CB-18488:

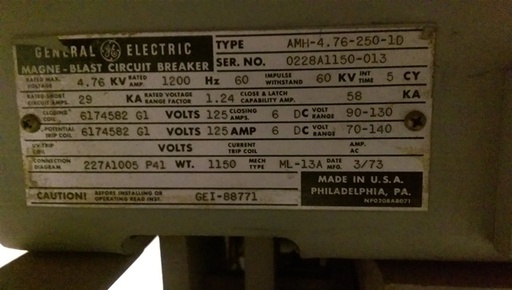

ONE (1) 1200 AMP GENERAL ELECTRIC MAGNE-BLAST CIRCUIT BREAKER
TYPE AMH-4.76-250-1D
MAX RATING 4760 VOLTS
60 HERTZ
BIL 60 KV
INTERRUPTING TIME 5 CYCLE
RATED SHORT CIRCUIT AMPS 29000
RATED VOLTAGE RANGE FACTOR 1.24
MECHANISM ML-13A
125 VDC CLOSE AND TRIP
CONNECTION DIAGRAM 227A1005 P41
WEIGHT 1,150 LBS.
INSTRUCTION BOOKLET GEI-88771
SERIAL NO. 0228A1150-013

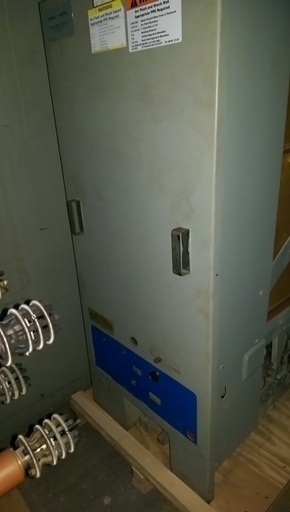

CB-18488A:
ONE COLUMN OF GE NEMA 1 SWITCHGEAR
MAGNEBLAST
4160 VOLT
1200 AMP
1 X BREAKER CONTROL HANDLE
1 X SET OF INDICATING LIGHTS
