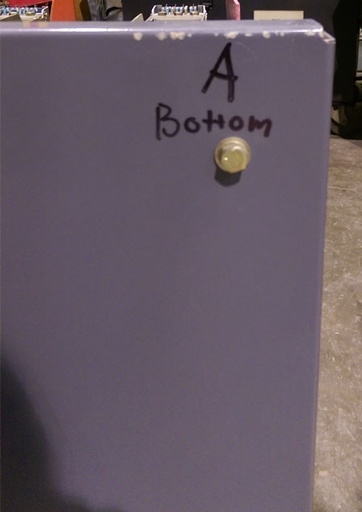

CB-18465 & A

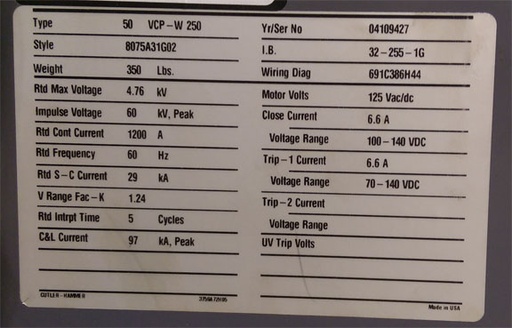

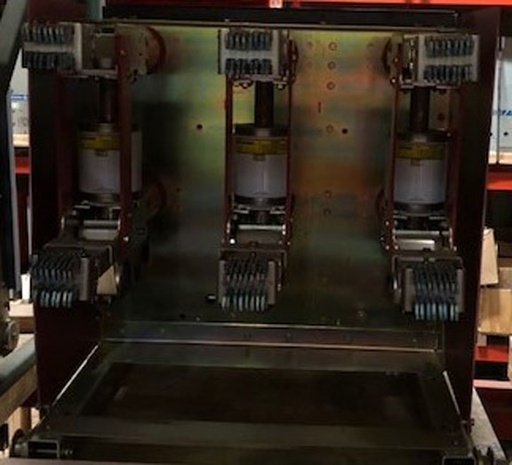

ONE (1) 1200 AMP CUTLER-HAMMER VACUUM CIRCUIT BREAKER
TYPE 50 VCP-W 250
STYLE 8075A31G02
S/N 04109427
4.76 KV
60 KV IMPULSE VOLTAGE
60 HERTZ
29 KA SHORT CIRCUIT
1.24 K FACTOR
5 CYCLE
97 KA CLOSE & LATCH
125 VAC/VDC MOTOR
125 VDC CLOSE & TRIP
MFG. 2004
INST. BOOK 32-255-1G
WIRING DIAGRAM 691C386H44
