CB-18002:

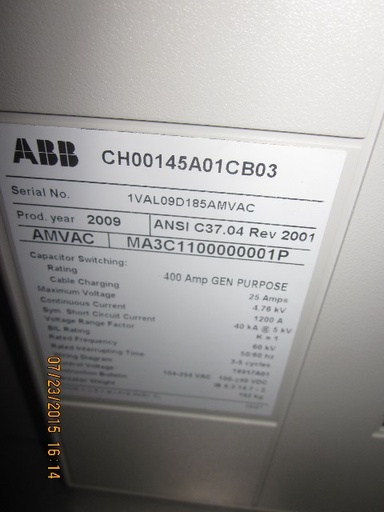

ONE (1) UNUSED 1200 AMP ABB AMVAC VACUUM CIRCUIT BREAKER
TYPE MA3C1100000001P
ABB CH00145A01CB03
ANSI C37.04 REV 2001
CAPACITOR SWITCHING -
400 AMP GEN. PURPOSE RATING
25 AMPS CABLE CHARGING
4.76 KV MAXIMUM VOLTAGE
1200 AMP CONTINUOUS CURRENT
40 KA SHORT CIRCUIT @ 5 KV
1.0 K FACTOR
60 KV BIL
50/60 HERTZ
3-5 CYCLE
104-254 VAC CONTROL VOLTAGE
100-280 VDC CONTROL VOLTAGE
UNDER VOLTAGE
192 KG.
MFG. 2009
S/N 1VAL09D185AMVAC
WIRING DIAGRAM 19917A01
INSTRUCTION IB 6.2.14.7-2
UL LISTED
