800 Amp, GENERAL ELECTRIC, WPX-08, 480 V. ELECTRICALLY OPERATED, DRAW-OUT:1   Our stock number: 41862

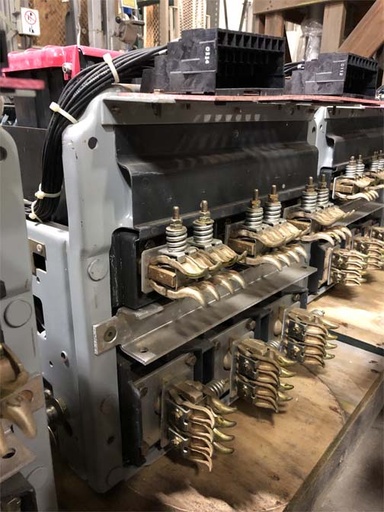

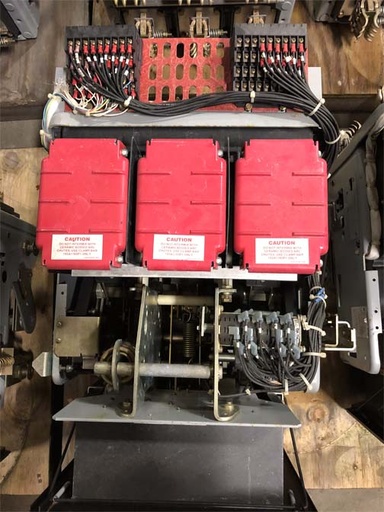

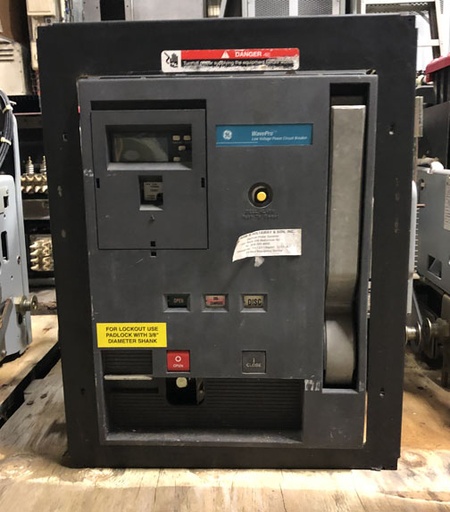

800 Amp, GENERAL ELECTRIC, WPX-08, 480 V. ELECTRICALLY OPERATED, DRAW-OUT:1

Click on picture below for larger version
800 Amp, GENERAL ELECTRIC, WPX-08, 480 V. ELECTRICALLY OPERATED, DRAW-OUT:1800 Amp, GENERAL ELECTRIC, WPX-08, 480 V. ELECTRICALLY OPERATED, DRAW-OUT:1800 Amp, GENERAL ELECTRIC, WPX-08, 480 V. ELECTRICALLY OPERATED, DRAW-OUT:1

CB-18714:

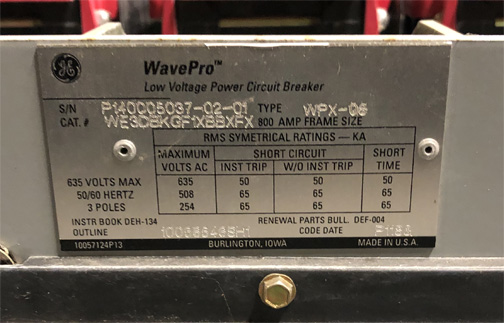

ONE (1) 800 AMP GENERAL ELECTRIC WAVEPRO AIR CIRCUIT BREAKER
WPX-08
VOLTS AC
635 V - 50 KA INST. TRIP
50 KA W/O INST. TRIP
50 KA SHORT TIME
508 V - 65 KA INST. TRIP
65 KA W/O INST. TRIP
65 KA SHORT TIME
254 V - 65 KA INST. TRIP
65 KA W/O INST. TRIP
65 KA SHORT TIME
120 VAC CLOSE & TRIP
50/60 HERTZ
3 POLE
CAT. #WE3DBKGF1XBBXFX
INST. BOOK DEH-134
OUTLINE 10056546SH1
RENEWAL PARTS BULLETIN DEF-004
MICRO-VERSA TRIP PLUS TRIP UNIT
S/N RMS9D052743
CAT. #K808LIGMR
800 AMP TRIP
800 AMP SENSOR
UL LISTED
BELL ALARM
S/N P140005037-02-01
