800 Amp, GENERAL ELECTRIC, WPS-08, 480 V. MANUALLY OPERATED, DRAW-OUT:1   Our stock number: 41853

800 Amp, GENERAL ELECTRIC, WPS-08, 480 V. MANUALLY OPERATED, DRAW-OUT:1

Click on picture below for larger version
800 Amp, GENERAL ELECTRIC, WPS-08, 480 V. MANUALLY OPERATED, DRAW-OUT:1800 Amp, GENERAL ELECTRIC, WPS-08, 480 V. MANUALLY OPERATED, DRAW-OUT:1800 Amp, GENERAL ELECTRIC, WPS-08, 480 V. MANUALLY OPERATED, DRAW-OUT:1

CB-18697:

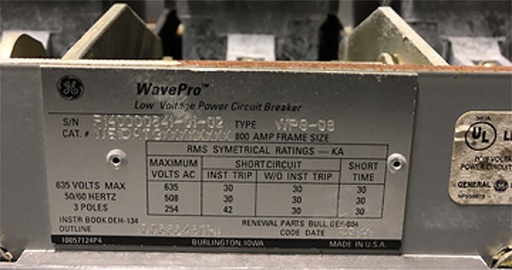

ONE (1) 800 AMP GENERAL ELECTRIC WAVEPRO AIR CIRCUIT BREAKER
WPS-08
VOLTS AC
635 V - 30 KA INST. TRIP
30 KA W/O INST. TRIP
30 KA SHORT TIME
508 V - 30 KA INST. TRIP
30 KA W/O INST. TRIP
30 KA SHORT TIME
254 V - 42 KA INST. TRIP
30 KA W/O INST. TRIP
30 KA SHORT TIME
50/60 HERTZ
3 POLE
CAT. #WE1DATGXXXXXXXX
INST. BOOK DEH-134
OUTLINE 10056546SH1
RENEWAL PARTS BULLETIN DEF-004
MICRO-VERSA TRIP PLUS TRIP UNIT
S/N RMS9D014831
CAT. #K808LSIGZ2
800 AMP TRIP
800 AMP SENSOR
UL LISTED
S/N P140000541-01-06
