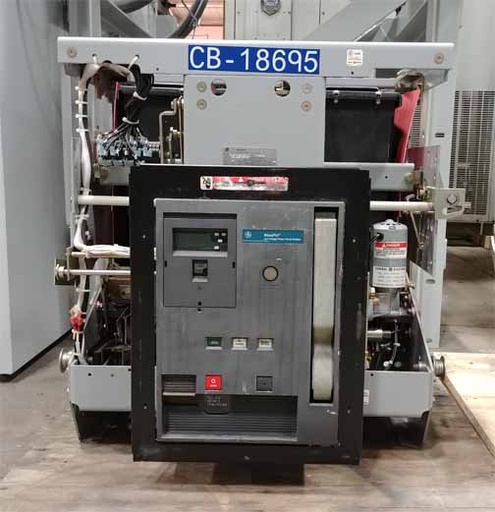

CB-18695:

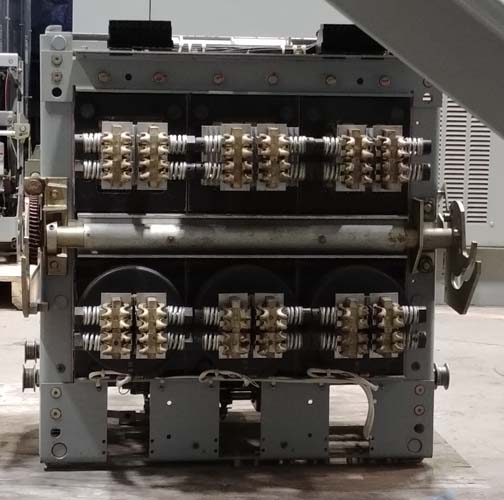

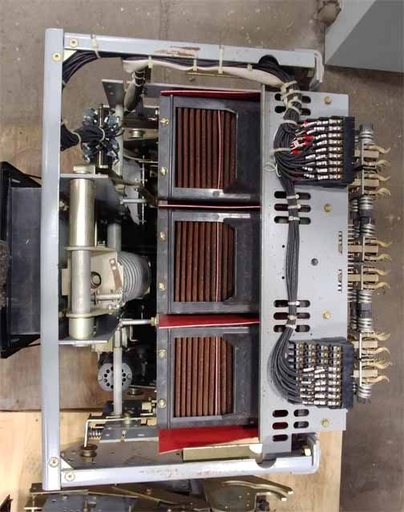

ONE (1) 3200 AMP GENERAL ELECTRIC WAVEPRO LOW VOLTAGE CIRCUIT BREAKER

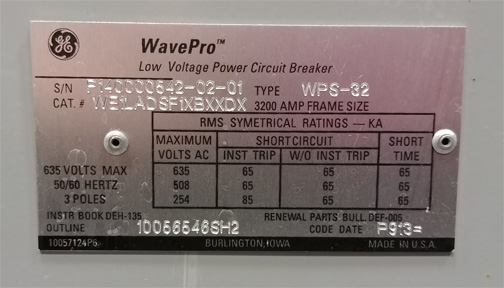

TYPE WPS-32
635 & 508 VOLT
65 KA TRIP INST. & W/O INST.
65 KA SHORT TIME
254 VOLT
85 KA INST. TRIP
65 KA W/O INST. & SHORT TIME
50/60 HERTZ
3 POLES
CAT. #WE1LADSF1XBXXDX
INST. BOOK - DEH-135
OUTLINE - 10056546SH2
120 VAC CLOSE
125 VDC TRIP
DRAW-OUT
MICRO-VERSA TRIP PLUS TRIP UNIT
S/N RMS9D014938
3200 AMP RATING PLUG
3200 AMP SENSOR
TYPE K332LSGZ2
CONNECTION DIAGRAM - 10057403P1
RENEWAL PARTS BULLETIN DEF-005
S/N P140000542-02-01
