1600 Amp, WESTINGHOUSE, DS416, 480 V., M/O, D/O, 120 VAC SHUNT TRIP   Our stock number: 41514

1600 Amp, WESTINGHOUSE, DS416, 480 V., M/O, D/O, 120 VAC SHUNT TRIP

Click on picture below for larger version
1600 Amp, WESTINGHOUSE, DS416, 480 V., M/O, D/O, 120 VAC SHUNT TRIP1600 Amp, WESTINGHOUSE, DS416, 480 V., M/O, D/O, 120 VAC SHUNT TRIP

CB-14879:

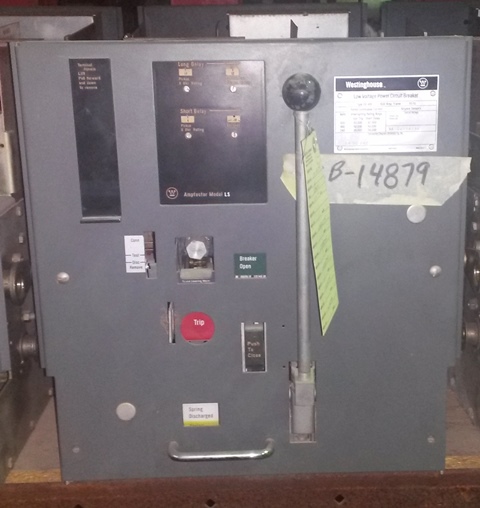

ONE (1) 1600 AMP WESTINGHOUSE DS416 AIR BREAKER

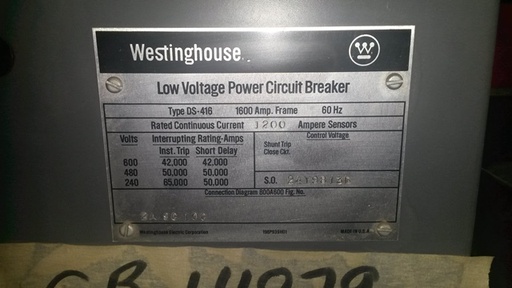

INTERRUPTING RATINGS:
635 VOLTS - 42 KA INST. TRIP - 42 KA SHORT DELAY
508 VOLTS - 50 KA INST. TRIP - 50 KA SHORT DELAY
254 VOLTS - 65 KA INST. TRIP - 50 KA SHORT DELAY
120 VAC SHUNT TRIP
MANUALLY OPERATED
DRAW-OUT

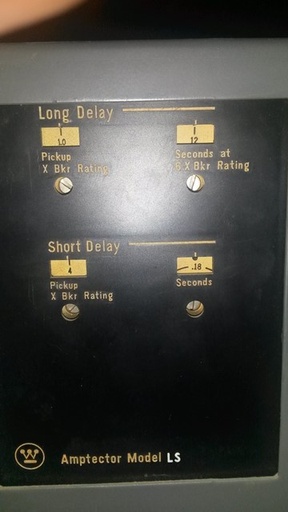

AMPTECTOR LS
1200 AMP SENSOR
