CB-14876:

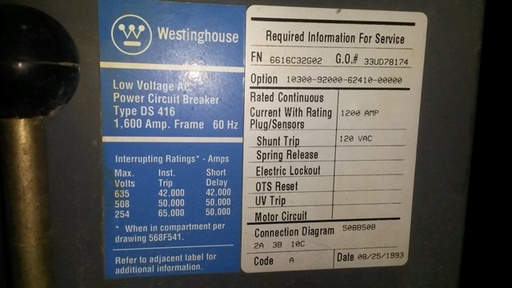

ONE (1) 1600 AMP WESTINGHOUSE DS416 AIR BREAKER
OPTION 10300-92000-62410-00000
INTERRUPTING RATINGS:
635 VOLTS - 42 KA INST. TRIP - 42 KA SHORT DELAY
508 VOLTS - 50 KA INST. TRIP - 50 KA SHORT DELAY
254 VOLTS - 65 KA INST. TRIP - 50 KA SHORT DELAY
F/N 6616C32G02
GO #33UD78174
120 VAC SHUNT TRIP
MANUALLY OPERATED
DRAW-OUT
CONNECTION DIAGRAM 508B508 2A 3B 10C
CODE A
MFG. 08/1993
AMPTECTOR LS
1200 AMP SENSOR
