1600 Amp, WESTINGHOUSE, DS-416, 480 V., 115 VAC CONTROLS, DRAW-OUT, UNUSED:1   Our stock number: 40042

1600 Amp, WESTINGHOUSE, DS-416, 480 V., 115 VAC CONTROLS, DRAW-OUT, UNUSED:1

Click on picture below for larger version
1600 Amp, WESTINGHOUSE, DS-416, 480 V., 115 VAC CONTROLS, DRAW-OUT, UNUSED:11600 Amp, WESTINGHOUSE, DS-416, 480 V., 115 VAC CONTROLS, DRAW-OUT, UNUSED:1


CG-17943:

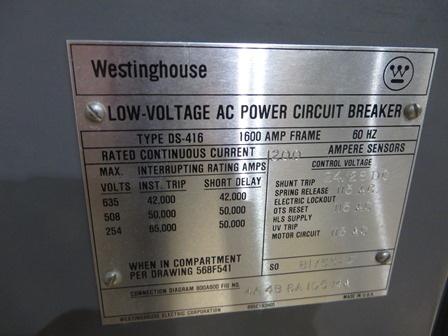

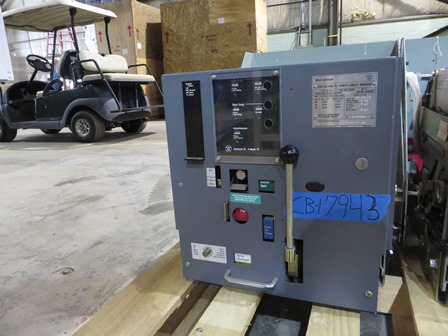

ONE (1) UNUSED 1600 AMP WESTINGHOUSE AIR BREAKER
TYPE DS-416
1200 AMP SENSOR
635 VOLT - 42 KA INST. TRIP - 42 KA SHORT DELAY
508 VOLT - 50 KA INST. TRIP - 50 KA SHORT DELAY
254 VOLT - 65 KA INST. TRIP - 50 KA SHORT DELAY
24/28 VDC SHUNT TRIP
115 VAC SPRING RELEASE
115 VAC OTS RESET
115 VAC UNDER VOLTAGE TRIP
DRAW-OUT
AMPTECTOR II A MODEL TR TRIP UNIT WITH LSI
SO #81Y5584
CONNECTION DIAGRAM 800A600 FIG NO. 4A4B6A10C14A
WHEN IN COMPARTMENT PER DRAWING 568F541
