1600 Amp, SQUARE D, DSII-616, 480 V., M/O, D/O, RMS-810D LSI   Our stock number: 37821

1600 Amp, SQUARE D, DSII-616, 480 V., M/O, D/O, RMS-810D LSI

Click on picture below for larger version
1600 Amp, SQUARE D, DSII-616, 480 V., M/O, D/O, RMS-810D LSI1600 Amp, SQUARE D, DSII-616, 480 V., M/O, D/O, RMS-810D LSI

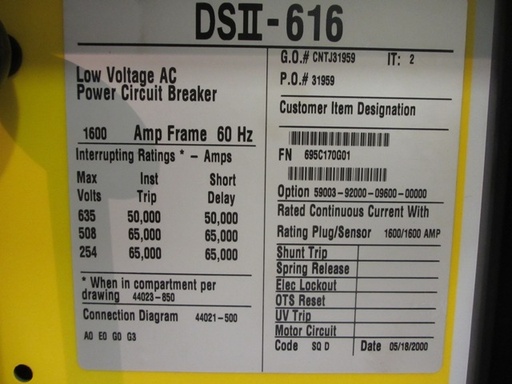

CB-17519:

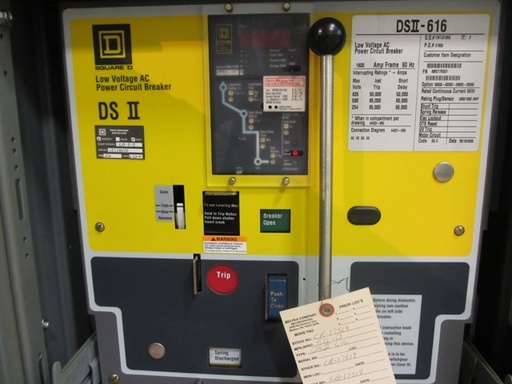

ONE (1) 1600 AMP SQUARE D AIR CIRCUIT BREAKER
TYPE DSII-616
480 VOLT
635 VOLT MAX.
60 HERTZ
MANUALLY OPERATED
DRAW-OUT
1600 AMP RATING PLUG & SENSOR
50 KA @ 635 VOLT
65 KA @ 508 VOLT
65 KA @ 254 VOLT
CONNECTION DIAGRAM 44021-850

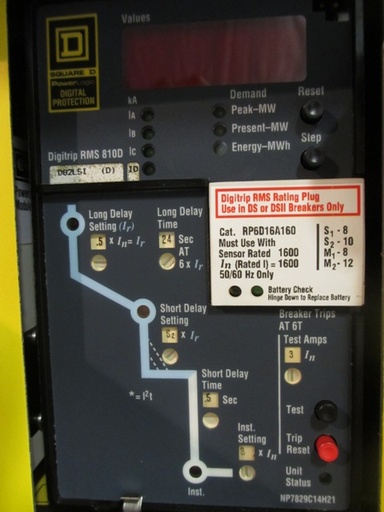

DIGITRIP RMS 810D WITH LSI FUNCTIONS
MFG. 05/2000
