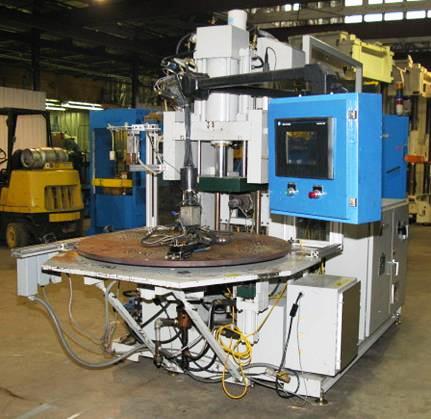

Click on picture below for larger version

General Specifications As Per Brochure (Buyers are responsible

for confirming all details below)

MODEL HCR-50.  SERIAL #AJ002029-0795.  NEW IN 1995.  22mm FRAME

WITH "B" BARREL WHICH IS 1.29 OUNCE SHOT SIZE (CAN GO UP ONE SIZE

TO 1.76 OUNCE).  48" DIAMETER ROTARY TABLE.  FOUR STATION OR TWO

STATION.  CENTER LINE OF INJECTION IS APPROX 7.375".  APPROX 36"

WORK HEIGHT.  25 HP MOTOR (460V/3PH/60HZ); PUMP GPM OF 21 AND

O.5; 46 AMPS; 11 KW HEATERS; 2950 PSI.  CLAMP CYLINDER IS APPROX

6" BORE WITH A 3" DIAMETER ROD.  TOP PLATEN IS APPROX 15.75" X

11" F TO B.  CONTROLS INCLUDE ALLEN BRADLEY PANELVIEW 900 (ON

SWING ARM); AB 5/20 PLC; PARKER APEX 6154 COMPUMOTOR; ETC.

OVERALL DIMENSIONS APPROX 156" X 78" X 102" TALL.  APPROX 9,000

POUNDS.
