 General Specifications As Per Brochure (Buyers are responsible

for confirming all details below)

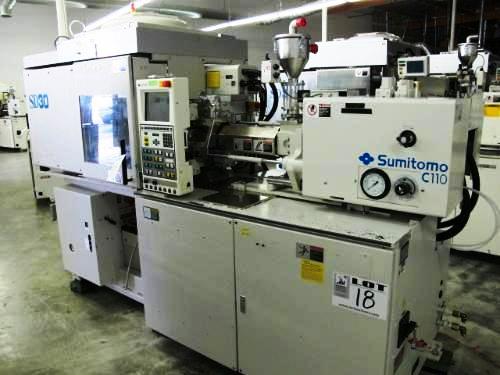

  30 TON, 1.04 OZ. SUMITOMO INJECTION MOLDER

  YEAR: 1998

 PLATEN SIZE 15.94" x 15.94"

 DISTANCE BETWEEN TIE BARS 10.23" x 10.23"

 MIN. MOLD THICKNESS 4.72"

 DAYLIGHT 15.74"

 EJECTOR STROKE 0.25"

 SCREW STROKE 1.96"

 DIMENSIONS 9'6Lx3'6Wx6'6H

 WEIGHT 3-5,000lbs


 CONTROL:

 N6

EQUIPPED WITH:

  1.04 OZ. INJECTION UNIT

  HYDRAULIC KNOCKOUTS

  KAWATA MATERIAL HOPPER

  CLOSED LOOP CONTROL

  DELAY TIMER

  V-P SWITCHOVER

  SCREW PULL BACK

  DIGITAL INDICATION OF SCREW POSITION/REVOLUTION

  TEMPERATURE CONTROL OF WATER-COOLING JACKET

  REMOTE SETTING OF BARREL TEMPERATURE

  ADJUSTABLE MOLD PROTECTION

  HYDRAULIC EJECTOR PROTUTION DELAY TIMER

  WATER COOLED PLATEN

  PLATED PLATEN

  ON SCREEN MAINTENANCE GUIDE

  SSR CONTROL CIRCUIT FOR HEATER BANDS

  SELF-DIAGNOSIS

  AUDIBLE ALARM

  INTERFACE FOR PRODUCTION QUANTITY

  ACCUMULATOR
