(2)IMPCO, No. B-30-R180, 1974, & B-30 DDH, 1984   Our stock number: 341161

(2)IMPCO, No. B-30-R180, 1974, & B-30 DDH, 1984

Click on picture below for larger version
(2)IMPCO, No. B-30-R180, 1974, & B-30 DDH, 1984(2)IMPCO, No. B-30-R180, 1974, & B-30 DDH, 1984(2)IMPCO, No. B-30-R180, 1974, & B-30 DDH, 1984(2)IMPCO, No. B-30-R180, 1974, & B-30 DDH, 1984
(2)IMPCO, No. B-30-R180, 1974, & B-30 DDH, 1984(2)IMPCO, No. B-30-R180, 1974, & B-30 DDH, 1984(2)IMPCO, No. B-30-R180, 1974, & B-30 DDH, 1984(2)IMPCO, No. B-30-R180, 1974, & B-30 DDH, 1984

General Specifications as per brochure(please verify details)

1974 Impco                                  Model B-30-R180
Number Of Heads                             2
Head Center Distance                        15.0"
Shot Size Capacity Per Head                 2.5 lbs.
Output                                      410 lbs. / hour
Maximum Die Size                            10"
Clamp Tonnage                               33
Minimum/ Maximum Daylight (in.)             12 / 35
Platen Size                                 24" High x 30" Wide
Maximum Mold Height                         44"

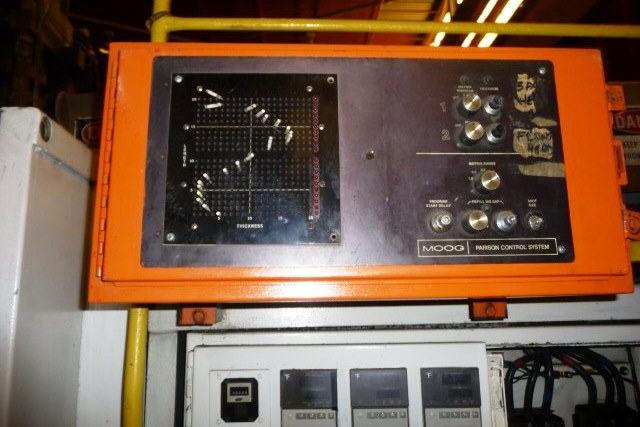

Moog Parison Controller                     20 Points / 2 Channels
Electrical Requirements                     575v - 3 ph - 60

Impco (1984)                                Model B-30 DDH
Number Of Heads                             2
Head Center Distance                        15.0"
Shot Size Capacity                          2.5 lbs.
Output                                      410 lbs. / Hour
Maximum Die Size                            10"
Clamp Tonnage                               33
Minimum / Maximum Daylight (in.)            12" / 34.5"
Platen Size                                 24" Hight x 30" Wide
Maximum Mold Height                         44"
Moog Parison Controller                     20 Points / 2 Channels
Horsepower                                  75
Electrical Requirements                     460v - 3 - 60
