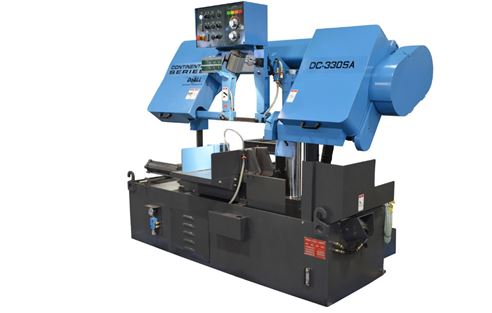

Click on picture below for larger version

All Information From OEM Brochure Should Be Verified By Buyer:

Capacity:
   Round:                                 13" (330mm)
   Rectangle:                             13" x 15 3/4" (330 x 400mm)

Saw Blade:                                Length x Width x Gage
                                           167"  x 1-1/4"x 0.042"
Band Drive:
   Motor:                                 5 HP (3.7kW)
   Speed:                                 66-262 FPM (20 - 80 m/min)

Nesting Capacity:
   Maximum:                               14 1/2" x 6-5/8" (370 x 170mm)
   Minimum:                               6 1/2" x 2" (165 x 50 mm)

Hydraulic System:
   Motor:                                 1 HP (0.75kW)
   Capacity:                              16 Gal (60 LIT)

Cutting Fluid Systems:
   Motor:                                 1/4 HP (0.2 kW)
   Capacity:                              21 Gal (80 LIT)

Dimensions:
   Material Pass Line Height:             27 1/2" (700mm)
   Machine Weight:                        3,638 lbs (1650 kg)
   Machine:                               88" x 48" x 61"

Machine Voltage:                          230/60Hz/Three Phase/Wye Config

Standard Equipment:
   PLC Control for all electric and hydraulic functions
   Speed Transmission by worn gear & shaft
   Hydraulic blade tension
   Two-step full stroke vises
   Idle wheel motion detector with blades stalling and breakage shutoff
   Carbide blade guide with roller bearing
   Length setting: Manual setting (optional powered roller and hydraulic
cylinder)
   Chip Auger
   Vertical guide rollers
   Flushing hose for machine cleaning
   Power driven blade-cleaning wire brush
   Work light
   Tool kit
   One 6.5 ft (2-meter) gravity conveyor
   Complimentary DoALL cutting fluids package
   One complimentary DoALL bi-metal saw blade
   Instruction and parts manuals on CD or USB data stick

Machine Accessories
Additional 10 ft. length (3 Meter) gravity conveyor
with 17-1/4" roller lengths................................$1,750.00

Magnetic wand chip remover.............................$152.60

Additional copy of instruction and parts manuals
on CD or USB data stick................................$75.00

DoALL blades and cutting fluids........................$POR

**Call for warranty information**
