Fanuc M900iA/350, 2011, Fanuc RJ3iC, Device Net, Teach Pendant Automatics & Machinery Co Inc

Fanuc M900iA/350, 2011, Fanuc RJ3iC, Device Net, Teach Pendant Our stock number: 404263

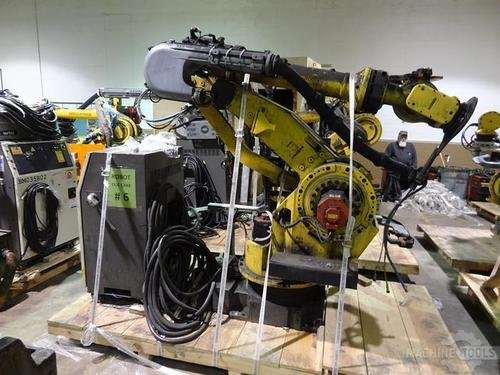

Fanuc M900iA/350, 2011, Fanuc RJ3iC, Device Net, Teach Pendant

Click on picture below for larger version

To the best of our knowledge all details listed below are deemed correct. It

is the buyer's responsibility to confirm all details and we encourage an

inspection of the machine(s) and accessories prior to purchase.

Equipped With:

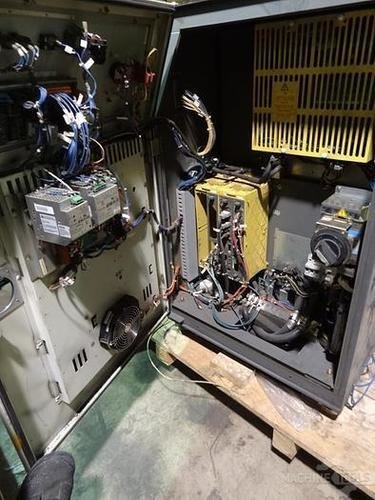

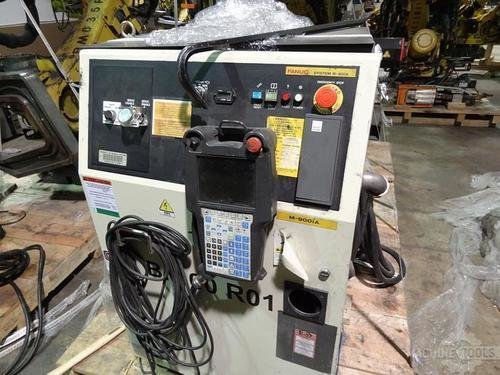

   Fanuc RJ3iC Controller
   Cables
   Teach Pendant
   Device Net

General Specifications:
   Axes:                                  6
   Payload:                               350kg
   V-Reach                                2650
   Repeatability:                         0.3mm
   Robot Mass:                            1720kg
   Structure:                             Articulated

Robot Motion Speed:
   J1:                                    100 Degrees (1.75 rad/s)
   J2:                                    95 Degrees (1.66 rad/s)
   J3:                                    95 Degrees (1.66 rad/s)
   J4:                                    105 Degrees (1.83 rad/s)
   J5:                                    105 Degrees (1.83 rad/s)
   J6:                                    170 Degrees (2.97 rad/s)

Robot Motion Range:
   J1:                                    360 Degrees
   J2:                                    150 Degrees
   J3:                                    223 Degrees
   J4:                                    720 Degrees
   J5:                                    250 Degrees
   J6:                                    720 Degrees

Weight:                                   1,720kg
