To the best of our knowledge all details listed below are deemed correct. It

is the buyer's responsibility to confirm all details and we encourage an

inspection of the machine(s) and accessories prior to purchase.

Equipped With:

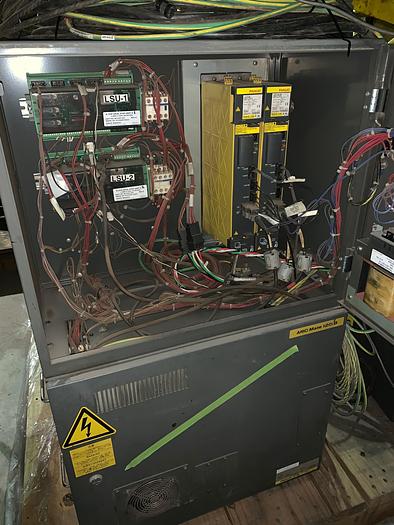

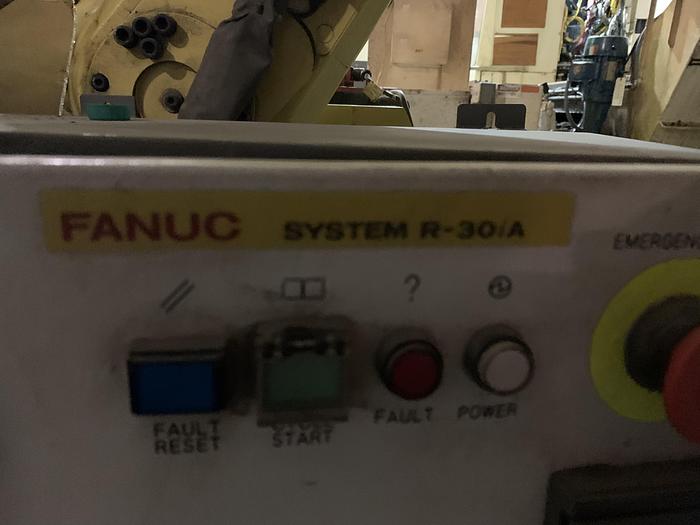

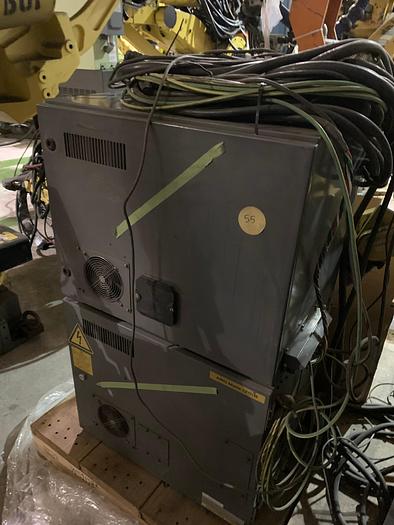

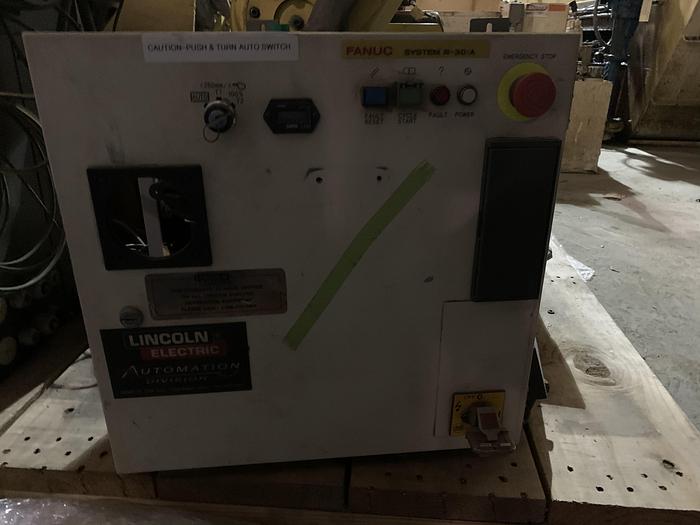

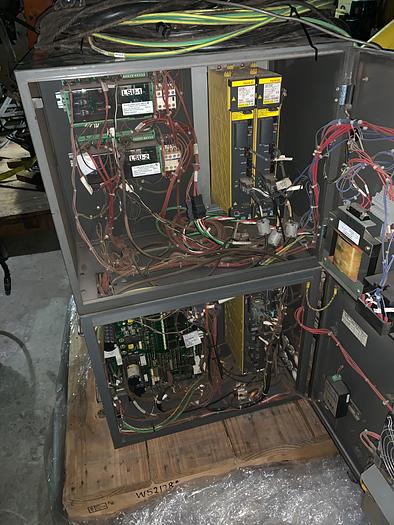

   Fanuc R30iA Controller
   Cables
   Teach Pendant

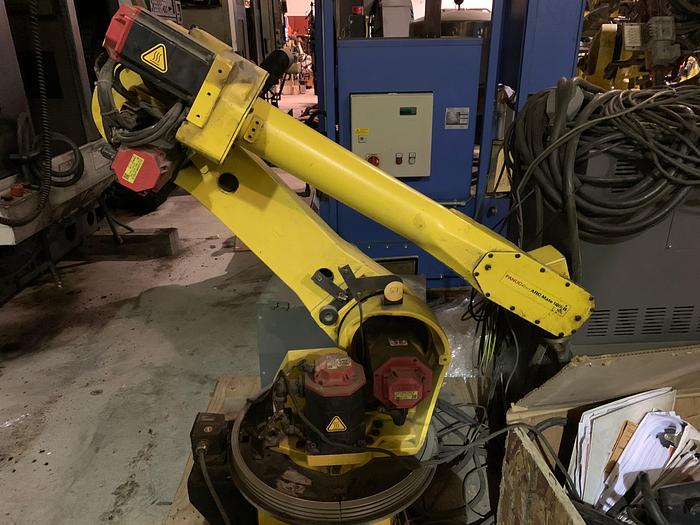

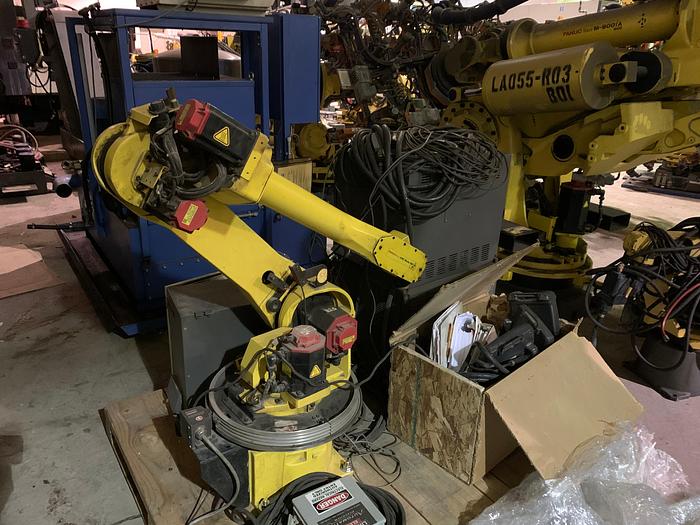

General Specifications:
Axes:                                     6
Payload:                                  10.00kg
H-Reach:                                  1885.00mm
Repeatability:                            0.1000mm
Robot Mass:                               220.00kg
Structure:                                Articulated
Mounting:                                 Floor, Inverted, Angle

Robot Motion Speed:
J1:                                       165 Degrees (2.88 rad/s)
J2:                                       165 Degrees (2.88 rad/s)
J3:                                       175 Degrees (3.05 rad/s)
J4:                                       350 Degrees (6.11 rad/s)
J5:                                       340 Degrees (5.93 rad/s)
J6:                                       520 Degrees (9.08 rad/s)

Robot Motion Range:
J1:                                       170 Degrees
J2:                                       +160 - 90 Degrees
J3:                                       +285 - 170 Degrees
J4:                                       200 Degrees
J5:                                       140 Degrees
J6:                                       450 Degrees

Robot Applications:
   MIG Welding Robots
   Plasma Welding Robots
   TIG Welding Robots
   Welding Automation Robots
   Arc Welding Robots
