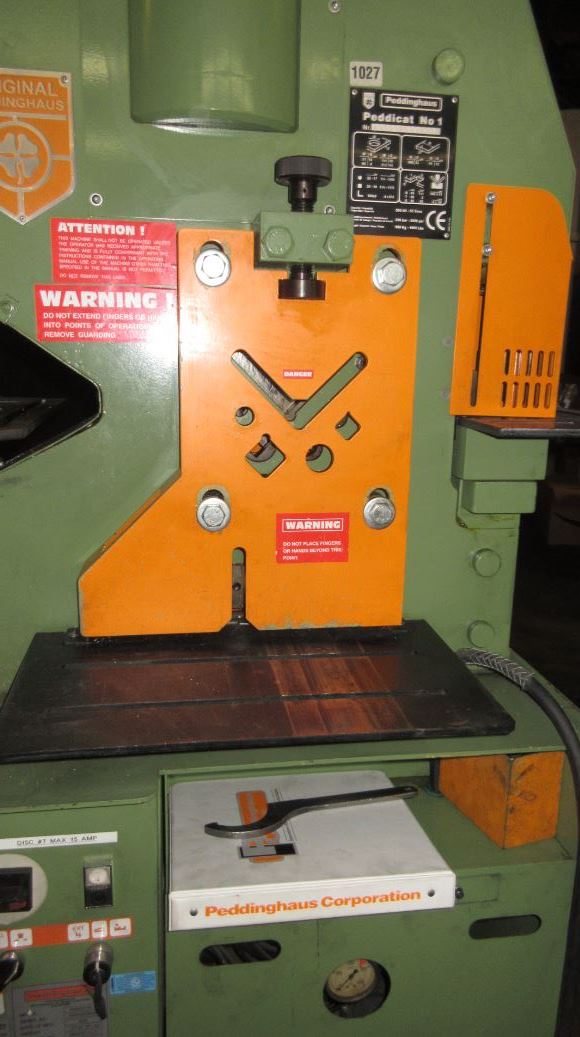

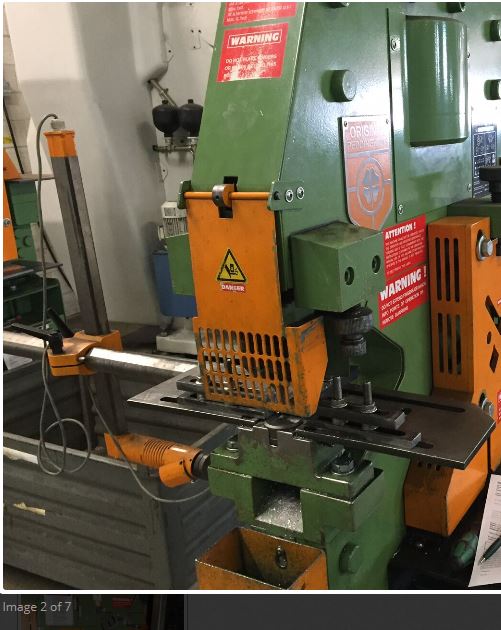

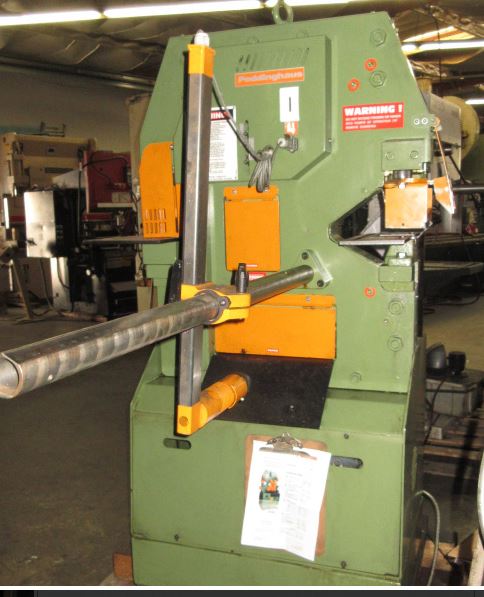

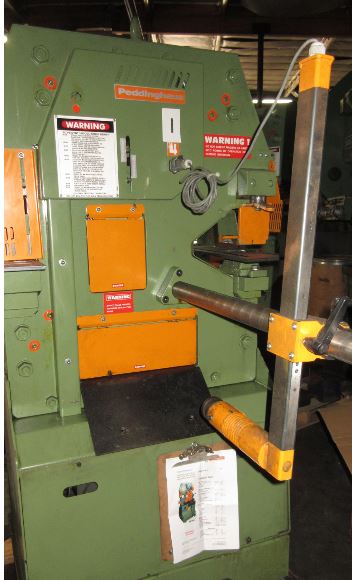

4"x4"x1/4" angle, 1-1/4" thru 1/2"MS, Peddinghaus Peddicat, 55 ton   Our stock number: 394731

4 x4 x1/4 angle, 1-1/4 thru 1/2 MS, Peddinghaus Peddicat, 55 ton

Click on picture below for larger version
4 x4 x1/4 angle, 1-1/4 thru 1/2 MS, Peddinghaus Peddicat, 55 ton4 x4 x1/4 angle, 1-1/4 thru 1/2 MS, Peddinghaus Peddicat, 55 ton4 x4 x1/4 angle, 1-1/4 thru 1/2 MS, Peddinghaus Peddicat, 55 ton4 x4 x1/4 angle, 1-1/4 thru 1/2 MS, Peddinghaus Peddicat, 55 ton

Speicications are from OEM brochure; all details should be confirmed by buyer.


SPECIFICATIONS:
Standard Punching Attachment:           up to 1-1/4" in 1/2" material
Flat Bar Shear:                         up to 14" x 1/2"
Square Notch: (Width & Depth):          1-3/4" w - 2" d
Bending Punch and Die:                  4" x 4"
Angle Iron Shear: up to                 4" x 4" x 1/4"
Round Bar Shear:                        1-1/4" and 3/4"
Square Bar Shear:                       1-3/16" and 3/4"
Throat Depth:                           8"

PRICE INCLUDES: Universal Electrical Contact, 39" Length Stop,Tilt table, Stop

Head For Use With The Shear Section And The Flat Bar Shear Station, Universal

Joint With Fine Measuring Ring
