No. 307-14, CINCINNATI, motorized overarm w/ vertical head, 14x64" table
Our stock number:
394931

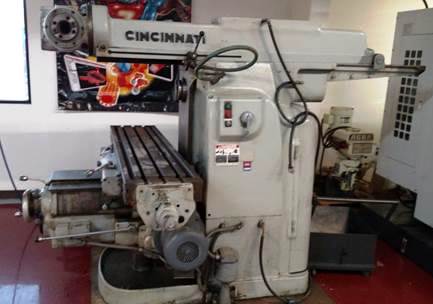

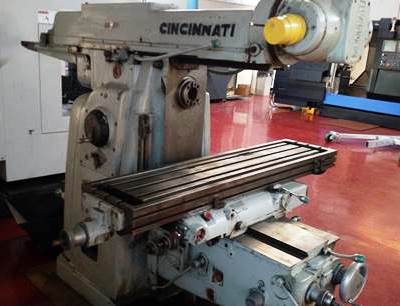

Click on picture below for larger version
Working surface of table 14" x 62 1/2"
T-slots (3) 0.68"
Distance between T-slots 2 1/4"
Longitudinal range 31.5"
Cross range 12"
Vertical range 18.5"
Centerline of spindle to top
of table (min/max) 0" / 18.5"
Spindle nose #50 Std
Hole for draw-in bolt 1 1/2"
16 Speeds 25-2000 rpm
16 Feeds Longitudinal & Cross 1/2" to 60 ipm
Spindle drive motor 7 1/2 hp
Feed drive motor 2 hp
Coolant System
Machine: 107" x 80" x 70" 6,100 lbs
