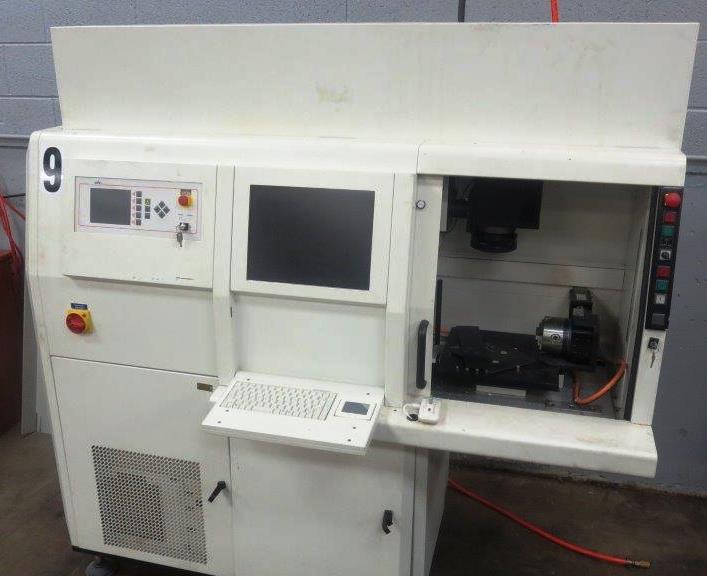

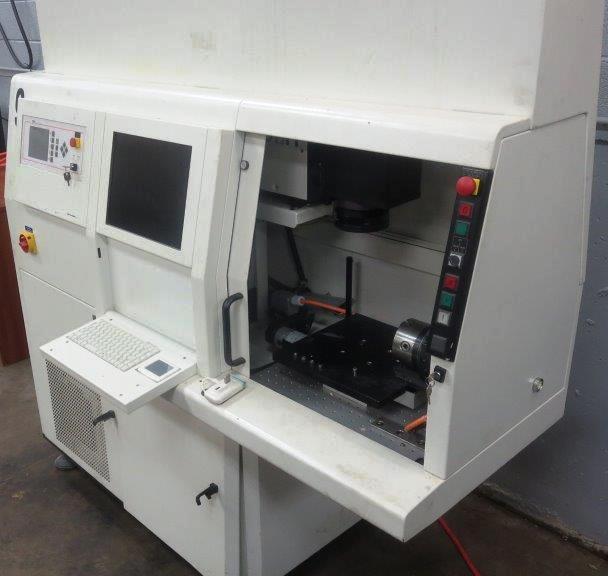

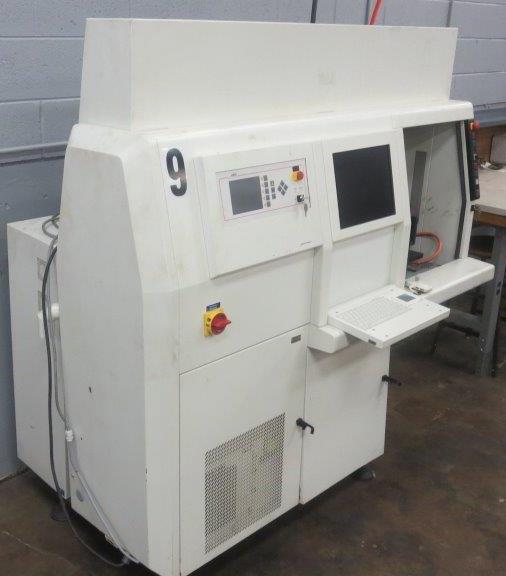

Designed to mark flats and tubing/pipe with dark marking or etching

General Specifications As Per Brochure:
Max Power:                                     10 Watts
Wave Length:                                   1064 nm
Approx Travels:
  X-axis:                                      4"
  Y-axis:                                      12"
Lens Size:                                     254mm
Focal Length:                                  254mm
Marking Area:                                  180mm x 180mm
                                               approx 7" x 7"
                                               approx 10" Circle
Voltage:                                       230 V/Single Phase, 50/60 HZ
                                               2 Mains and a Ground
Input Power Required:                          1.4 KW Max
Cooling Requirements:                          Integrated Air Cooling
                                               Heat Exchanger
Flow:                                          0.5-1.5 GPM/0.1-0.3 m/h
Unit Dimensions:                               54" x 31" x 76"


Equipped with
Pulse - fiber optic
*** Laser rebuild installed September 2013, by Rofin
New Pump at a cost of $3200
New Laser Diode & lens at a cost of $14,800

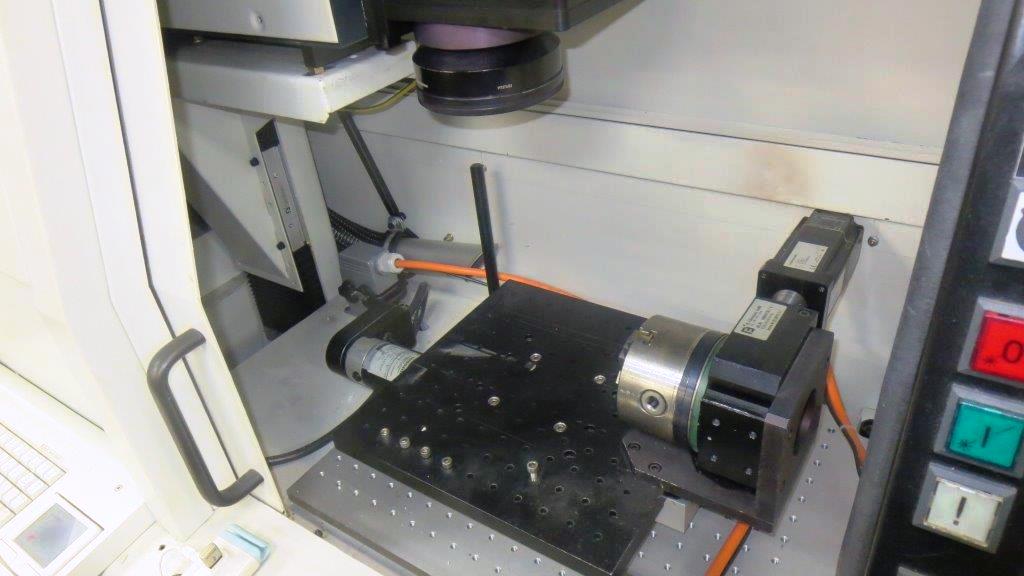

Rotary axis with Full 360,000 deg (AKA: .001 deg rotation or full C-axis)

Work platform with X-axis servo

Techical CD's includee:
Laser CAD software 2.33.125.10.2005)
Operation manual
Unit specifications
Installation instructions
Unit instructionsSystem documentation,

(Original purchase price per Rofin over $98,000)

Dimensions on Pallet for shipping:  76" x 44" x 70" 3,000 lbs
