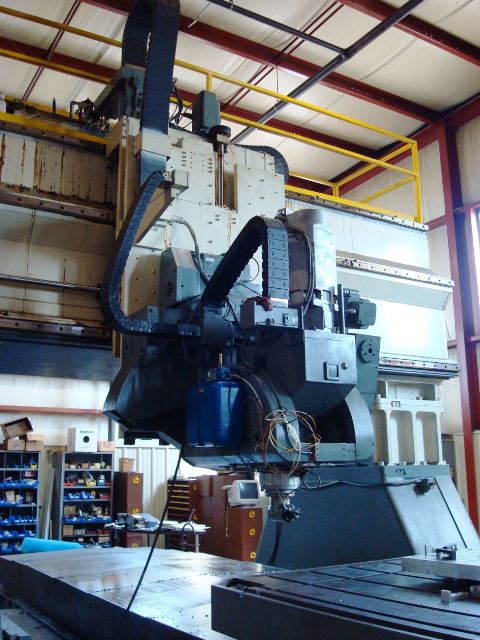

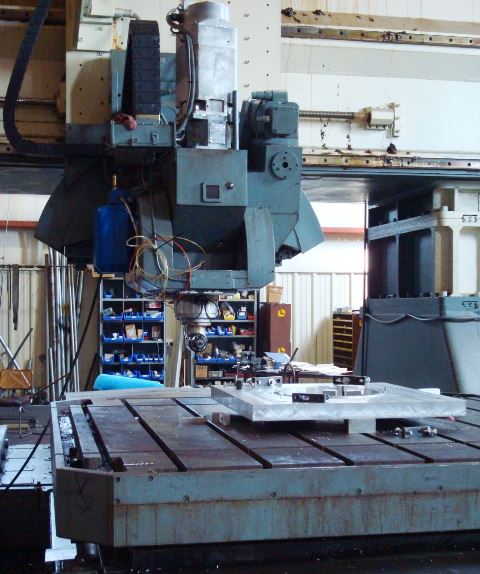

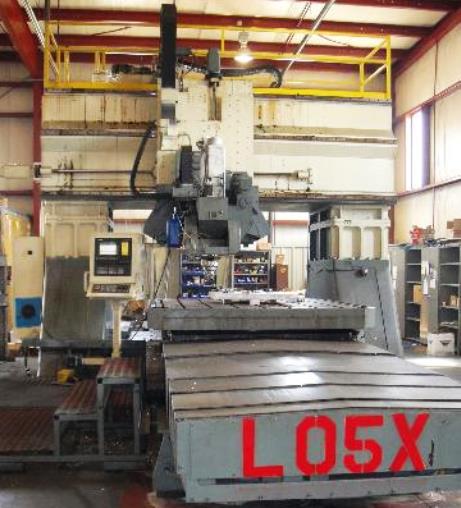

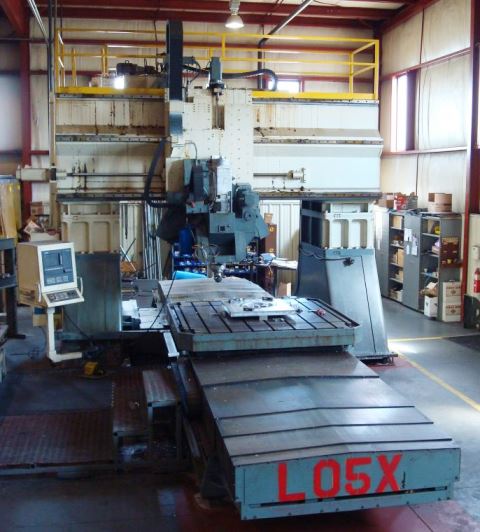

315"X, 92"Y, 54"Z, Giddings & Lewis Numerimil, 1969, Right Angle Head   Our stock number: 338784

315 X, 92 Y, 54 Z, Giddings & Lewis Numerimil, 1969, Right Angle Head

Click on picture below for larger version
315 X, 92 Y, 54 Z, Giddings & Lewis Numerimil, 1969, Right Angle Head315 X, 92 Y, 54 Z, Giddings & Lewis Numerimil, 1969, Right Angle Head315 X, 92 Y, 54 Z, Giddings & Lewis Numerimil, 1969, Right Angle Head
315 X, 92 Y, 54 Z, Giddings & Lewis Numerimil, 1969, Right Angle Head315 X, 92 Y, 54 Z, Giddings & Lewis Numerimil, 1969, Right Angle Head315 X, 92 Y, 54 Z, Giddings & Lewis Numerimil, 1969, Right Angle Head

General Specifications As Per Brochure (Please Verify Details):

X-Axis Travel:                                 315"
Y-Axis Travel:                                 92"
Z-Axis Travel:                                 54"
Rotary Table:                                  87" x 87"

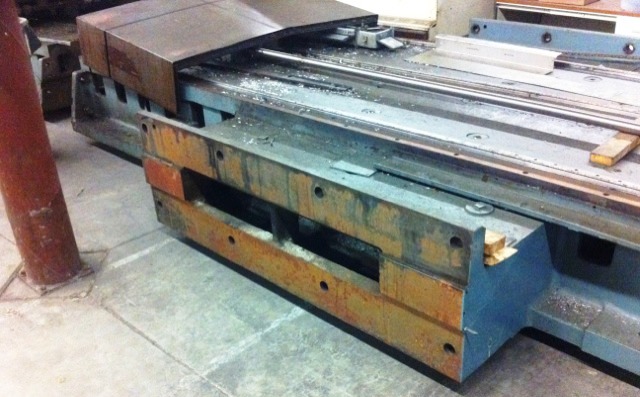

Rotary Table Ways:                             391" Long (Travel Wear 315")
Height of Columns:                             89"
Distance Between Columns:                      133"

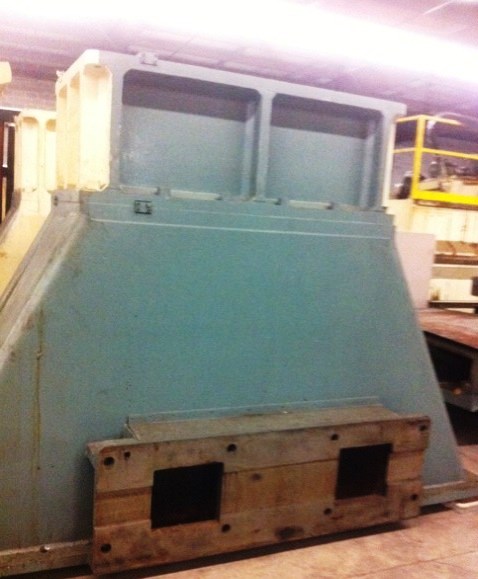

Column Bases:                                  52-3/4" Wide, Each Side
Bridge Travel:                                 92"
Rotary Table Top:                              45 3/4"
A-Axis:                                        30 Deg.
B-Axis:                                        45 Deg.
C-Axis:                                        360,000 Deg.
Motor Power:                                   37 HP
Spindle Speed:                                 4,000 RPM
Spindle Taper:                                 50 Taper

Equipped With:

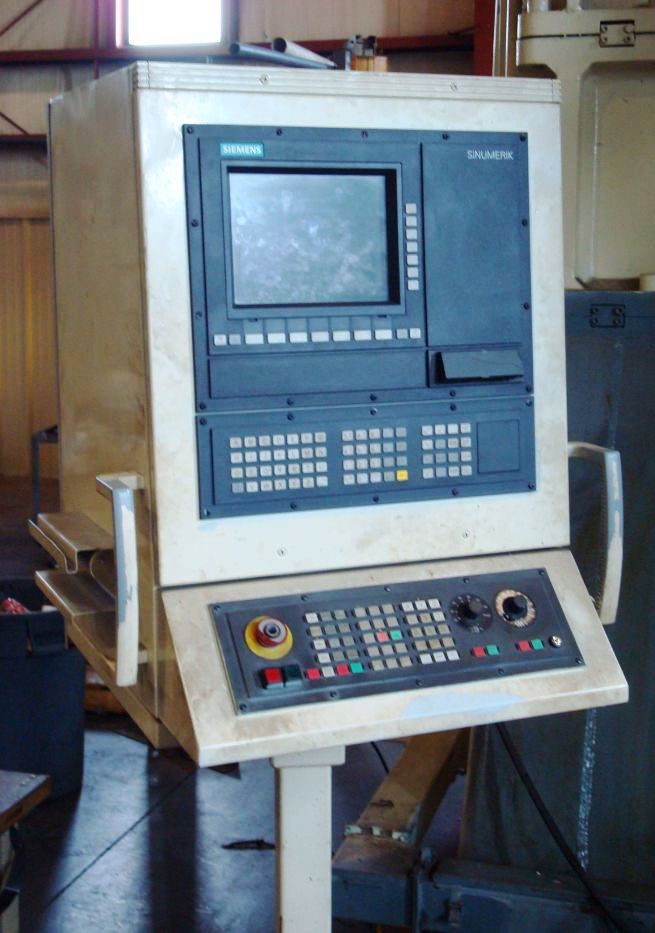

  Seimens Sinumerik CNC Control
