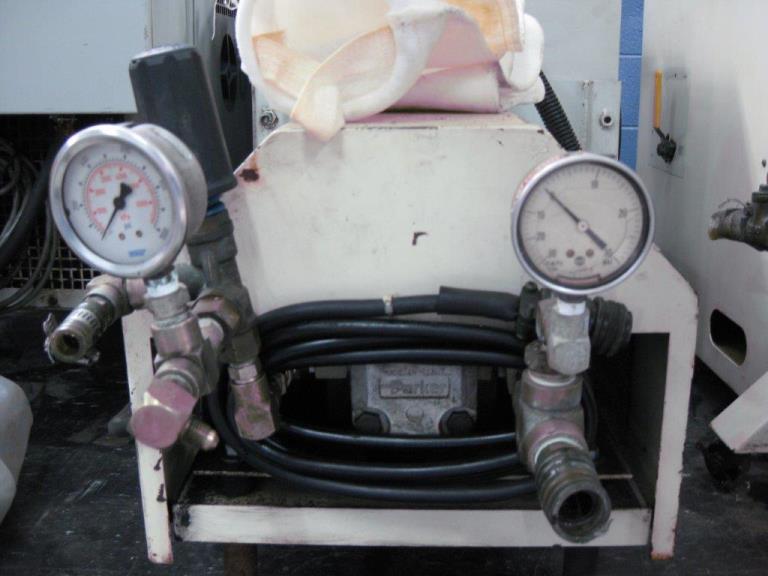

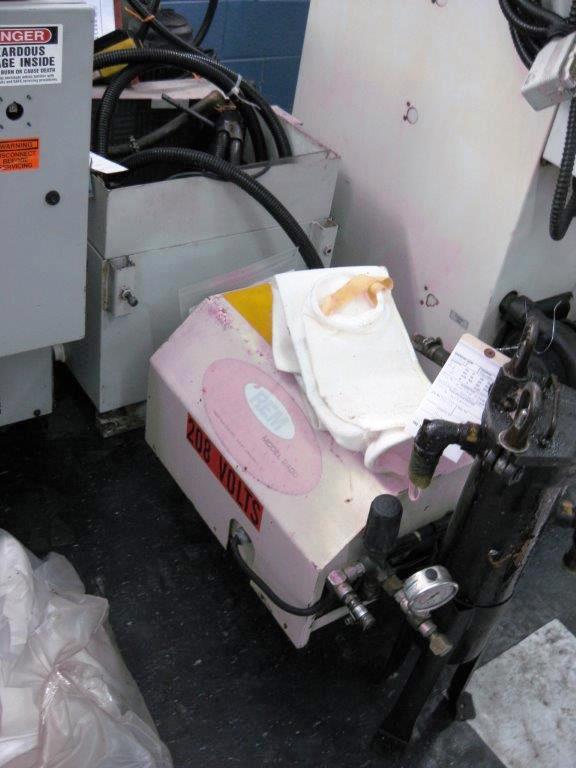

Click on picture below for larger version

General Specifications per Brochure:

Power: =                                      =2 HP
Flow:  =                                      =4.33 gpm pump
Pressure:                                     =100 - 350 PSI
Equipped With (To be Confirmed by Buyer):
  =75 micron bag type filter & electricals

Usage: This pump is the standard coolant supply to the "bushing blaster" unit
on BS20/26/32 model machines. Also may be supplied as a general purpose,
general use pump system for oil or water soluble coolant.
+
If used for Water Soluble coolant hook up a T-connector to the coolant line
and connect one leg to the bag filter and the other leg to the inlet pump.
This will assist in decreasing any cavitation.

Coolant System:  14.5" x 27" x 18.5" 96 lbs
Aux Filter Housing:  11" x 8.5" x 28.5" 25 lbs
