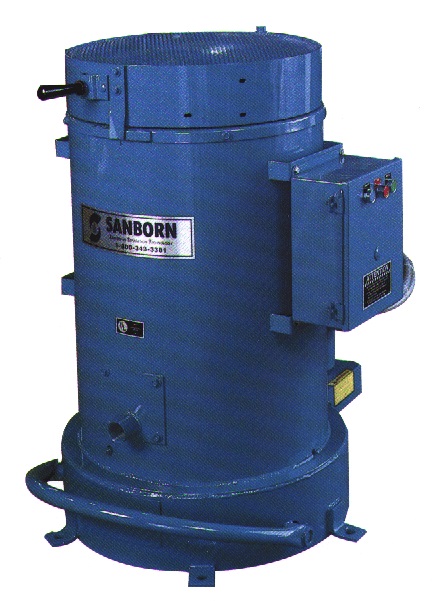

Click on picture below for larger version

General Specifications per Manufacturer brochure:

Basket Size: .......................... 12" x 12"
Basket Capacity: ...................... 75 lbs
Motor: ................................ 1 HP
RPMs: ................................. 825
Voltage (standard) .................... 230V, 3 Ph, 60 Hz
Aperage:............................... 13.4A (approx)
Bearings: ............................. Tapered Roller
Reversable: ........................... Yes
Control Drive: ........................ 2 V-Belts


Dimension (approx): ................... 24" x 37" x 36.5"
Weight (approx): ...................... 400 lbs

Options (prices subject to change without notice):

Baskets (not included with new unit):
Polyethylene: ..................$ (3/16" mesh size)
SS 304: ........................$ 860  *
Carbon Steel: ..................$ 395  *
* 1/4", 1/8", 1/16" or 1/32" perforation openings available
Add $470/basket for drop bottom in carbon steel
Add $790/basket for srop bottom in SS 304.

Soft Start: ....................$3055
Timer: .........................$1200

Alternative Voltages available..$ 375

Replacement Belts: .............$  88/pair
