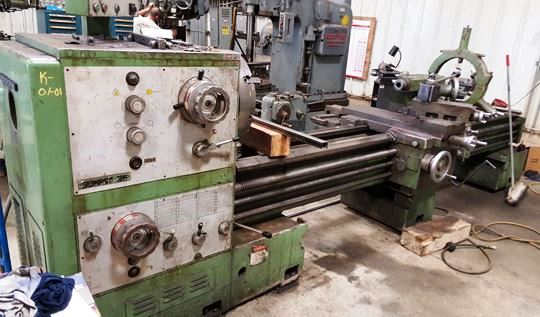

26"/38"x 120" cc, SUMMIT Mdl 25, 4" bore, Chuck, tailstock, SR, taper attch   Our stock number: 396327

26 /38 x 120 cc, SUMMIT Mdl 25, 4 bore, Chuck, tailstock, SR, taper attch

Click on picture below for larger version
26 /38 x 120 cc, SUMMIT Mdl 25, 4 bore, Chuck, tailstock, SR, taper attch

Includes:
   12" 4-Jaw Chuck
   Steady Rest
   Taper Attachment


Chuck Size.............                  20" 4 Jaw/ 12" 3 Jaw
Swing Over Bed.........                  26"
Swing Over Cross Slide..........         17"
Length in Gap/ in front of faceplate...  19.25" / 14/5"
Center Distance.........                 120"
Spindle Nose..........                   D1-8 Camlock
Spindle Bore..........                   4.1"
Spindle Speeds..........                 14 - 1,010 RPM
Spindle Motor...........                 15 HP
Speed Ranges............                 16 Ranges
Metric Threads............               61
Number of Longitudinal Crossfeeds.       70
Tailstock Quill Travel/Taper             9.5"/ MT #5
Machine Dimensions........               164" x 60" x 70"
Machine Weight............               6800 lbs.
