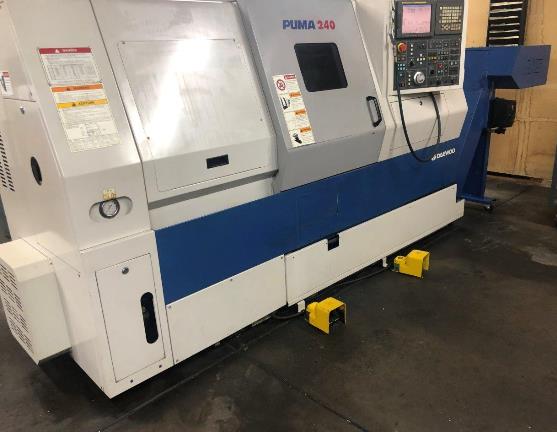

Doosan PUMA 240C, FANUC 21TB, 8"Chk, 2 1/2", 2004, Chip Conveyor, Tail Automatics & Machinery Co Inc

Doosan PUMA 240C, FANUC 21TB, 8"Chk, 2 1/2", 2004, Chip Conveyor, Tail Our stock number: 403695

Doosan PUMA 240C, FANUC 21TB, 8 Chk, 2 1/2 , 2004, Chip Conveyor, Tail

Click on picture below for larger version

Click the link below to view a video demonstration of this machine
https://youtu.be/AzDnoMyI2fo

To the best of our knowledge all details listed below are deemed correct.
It is the buyers responsibility to confirm ALL details prior to purchase.

Equipped With:

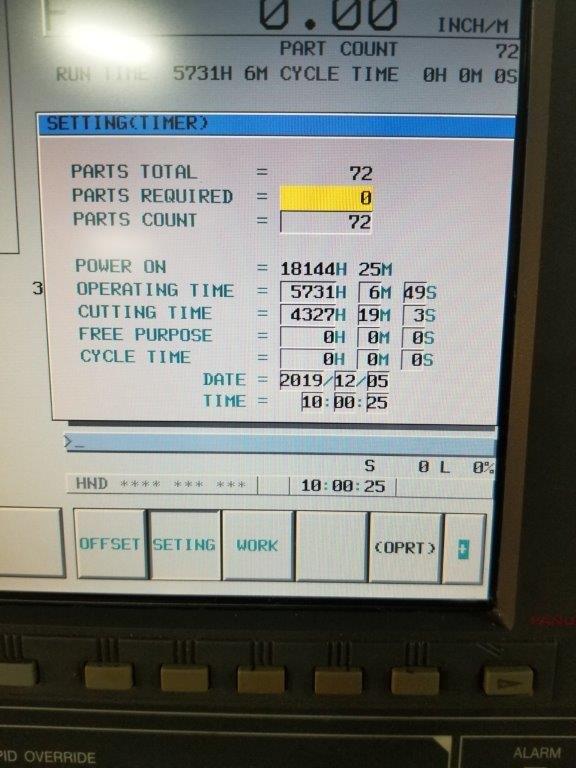

 Fanuc 21i-TB

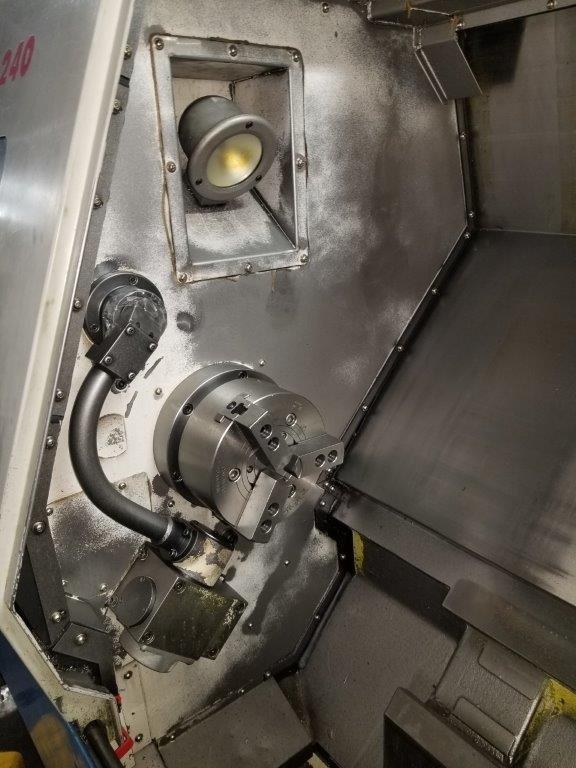

 8" 3-Jaw Samchully Chuck
 Royal 5C Pull Back Style Collet Chuck

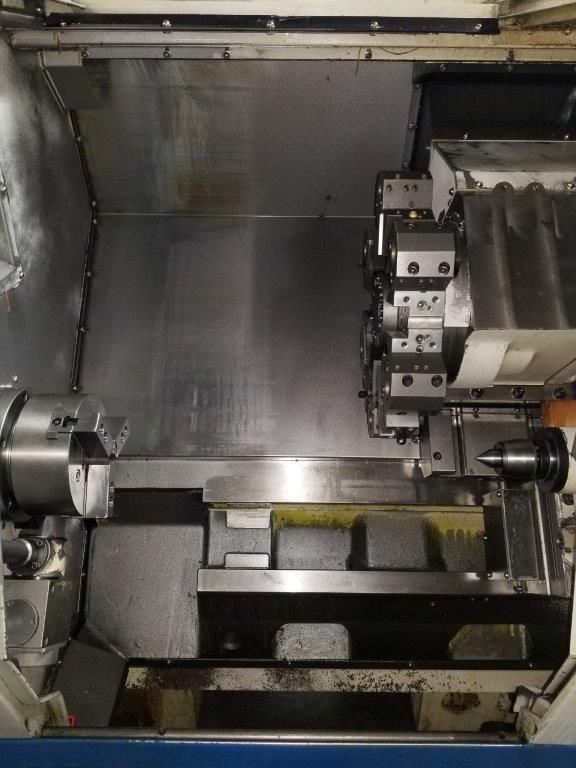

 Tail Stock
 Tool Setter
 LNS Chip Conveyor


Specifications:
Chuck Size                                 8" 3-Jaw Hydraulic
Swing Over Bed                             21.7"
Swing over Saddle                          15.4"
Maximum Turning Diameter                   13.8"
Maximum Machining Length                   22.1"
X-Axis Travel                              9.5"
Z-Axis Travel                              22.8"
Spindle Motor                              25 HP
Spindle Speed                              45 - 4,500 RPM
Spindle Nose                               A2 - 6"
Spindle Bore                               3"
Maximum Bar Capacity                       2.5"

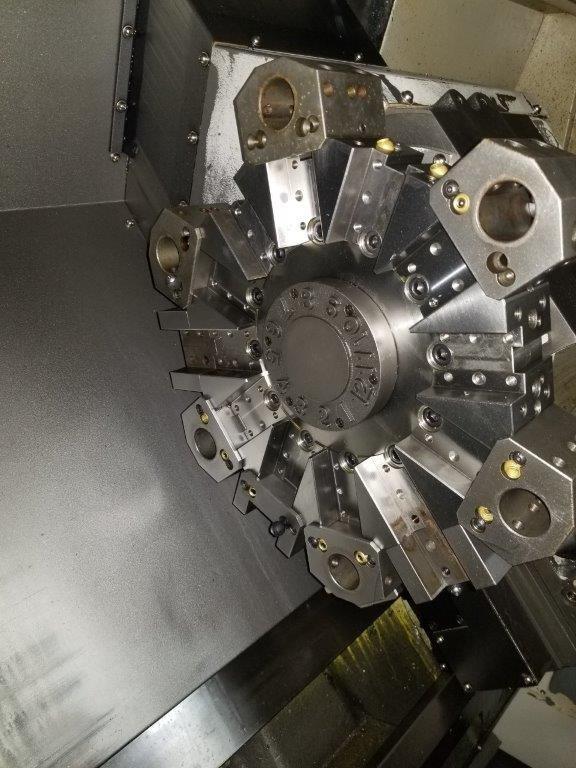

Turret Type                                12 Position Turret
Rapid Traverse X, Z                        945 / 1200 IPM
Tailstock Quill Quill Diameter/Taper       3.0" / MT # 4

Machine:  123" x 74" x 73" 9,900 lbs
Coolant pan w/tooling:  85" x 45" x 20" 420 lbs
Chip Conveyor:  120" x 28" x 58" 1,500 lbs
