Hwacheon Hi Tech 550A, FANUC 18iTB, 2008, 24"Chk   Our stock number: 341374

Hwacheon Hi Tech 550A, FANUC 18iTB, 2008, 24 Chk

Click on picture below for larger version
Hwacheon Hi Tech 550A, FANUC 18iTB, 2008, 24 ChkHwacheon Hi Tech 550A, FANUC 18iTB, 2008, 24 ChkHwacheon Hi Tech 550A, FANUC 18iTB, 2008, 24 ChkHwacheon Hi Tech 550A, FANUC 18iTB, 2008, 24 Chk
Hwacheon Hi Tech 550A, FANUC 18iTB, 2008, 24 ChkHwacheon Hi Tech 550A, FANUC 18iTB, 2008, 24 ChkHwacheon Hi Tech 550A, FANUC 18iTB, 2008, 24 Chk

Equipped With (Buyer Must Verify Details):

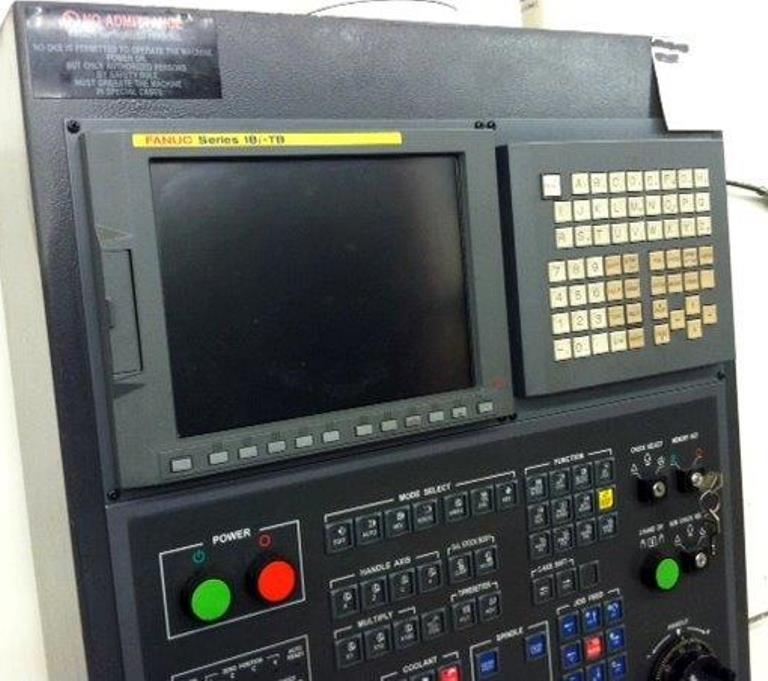

FANUC 18iTB CNC Control

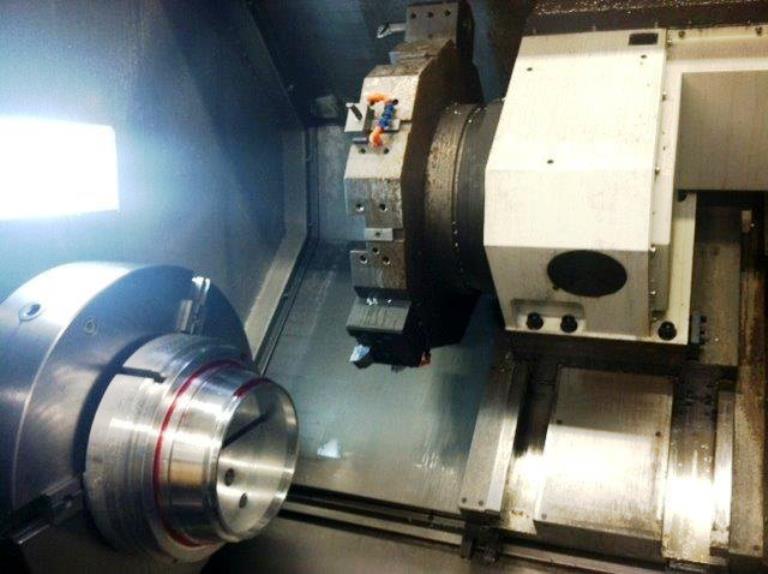

24" 3-Jaw Chuck

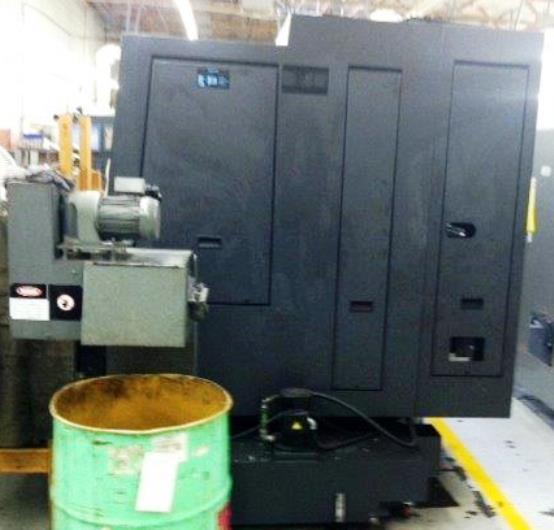

Chip Conveyor
All Tool Holders
All Manuals

Specifications As Per Brochure:

Max Swing:                             31.8"
Max Swing Over Carriage:               27.16"
Max Turning Lenght:                    43.3"
Spindle Bore Diameter:                 5.20"
Spindle Bar Capacity:                  4.61"
Spindle Nose:                          A2-11"
Spindle Speed:                         1400RPM
Max Spindle Torque:                    1,150 ft/lb

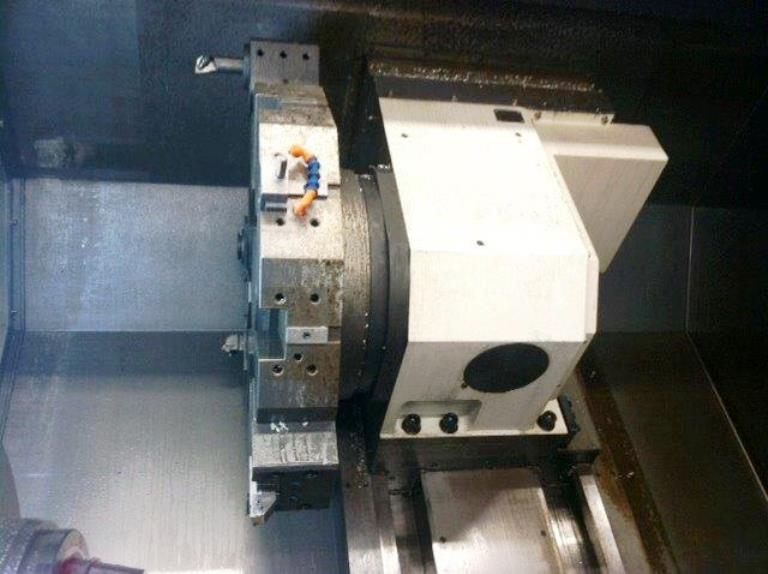

Turret Configuration:                  10 Station
X-Axis Travel:                         13.58"
Z-Axis Travel:                         43.3"
Rapid Traverse Rate:                   787/ X-Axis, 944 Z-Axis
Main Motor:                            40/30 HP AC
Machine Weight:                        20,000lbs.
