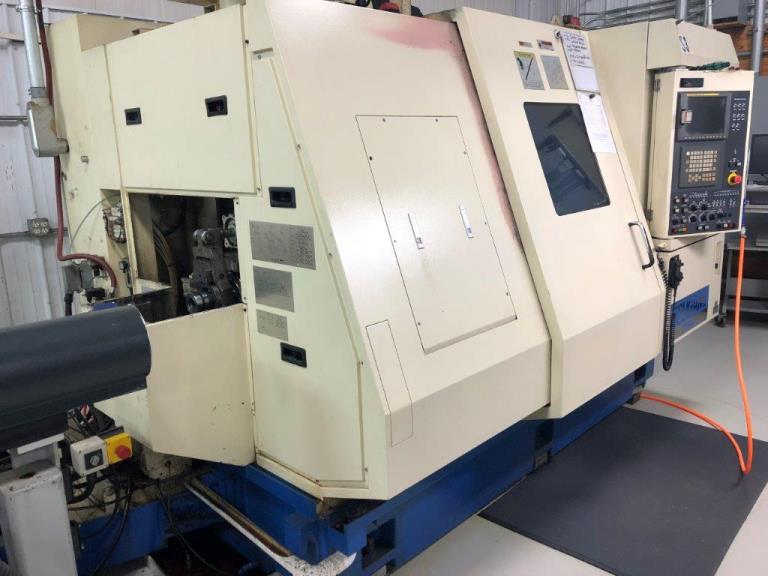

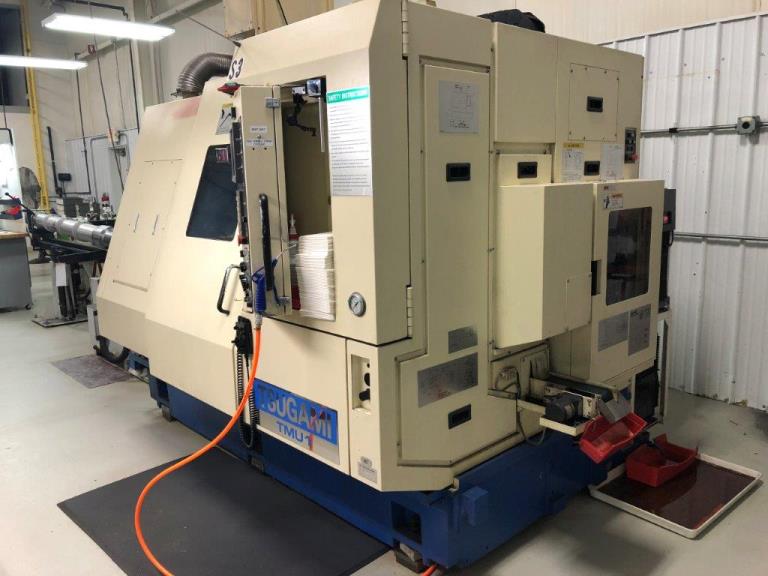

1 5/8" TSUGAMI TMU1, FANUC 18iTB, 2007, Low Hours, 9-Axis, B Axis, LNS HYS   Our stock number: 397340

1 5/8 TSUGAMI TMU1, FANUC 18iTB, 2007, Low Hours, 9-Axis, B Axis, LNS HYS

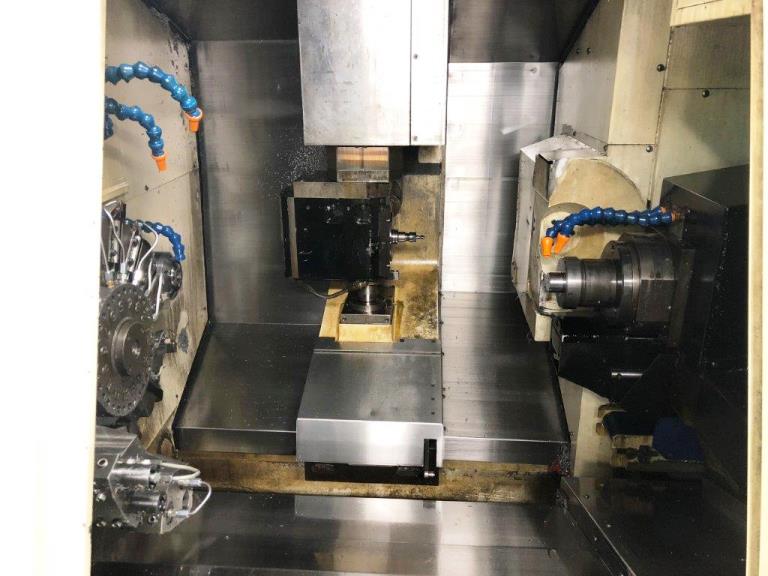

Click on picture below for larger version
1 5/8 TSUGAMI TMU1, FANUC 18iTB, 2007, Low Hours, 9-Axis, B Axis, LNS HYS1 5/8 TSUGAMI TMU1, FANUC 18iTB, 2007, Low Hours, 9-Axis, B Axis, LNS HYS1 5/8 TSUGAMI TMU1, FANUC 18iTB, 2007, Low Hours, 9-Axis, B Axis, LNS HYS
1 5/8 TSUGAMI TMU1, FANUC 18iTB, 2007, Low Hours, 9-Axis, B Axis, LNS HYS1 5/8 TSUGAMI TMU1, FANUC 18iTB, 2007, Low Hours, 9-Axis, B Axis, LNS HYS

All details must be conformed by the buyer


Equipped With:
    LNS HYS Bar Feed

    Chip Conveyor
    Part Conveyor
    Mist Collector
    MP Systems High Pressure Coolant System
    Coolant Chiller
    Extra High Volume Pump for flood coolant
    B Axis w/ +/- 115 degree movement
    60 Position ATC (KMX 40 Taper Tooling)
    Misc Tooling


General Specifications per Manufacturer's Brochure
(all details must be confirmed)

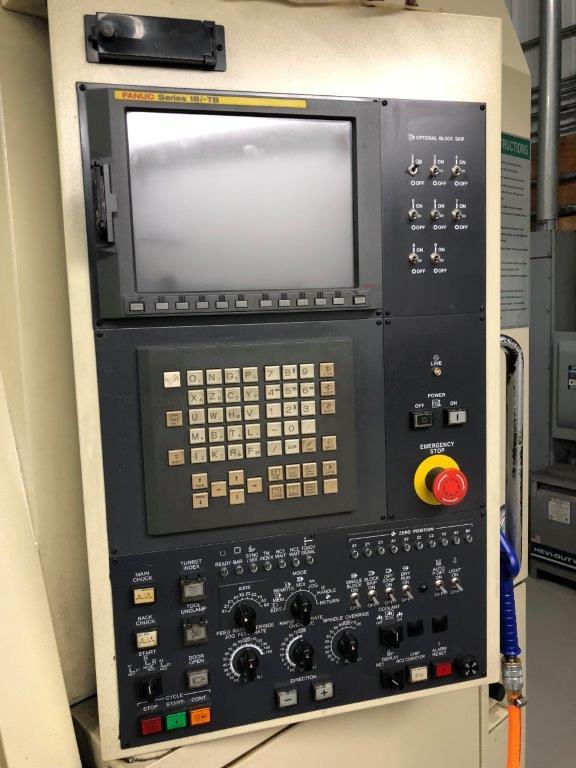

Control:                                     Fanuc 18iTB
Axes:                                        9-Axis
                                             (X1,X2,Y,A1,A2,Z1,Z2,C1,C2)
Max. stock dia.:                             38mm (1 1/2")
Max Machining length:                        250mm (9.84")
Main Spindle
    Main Spindle Sprre:                      6000 rpm
    Drive Motor output:                      11.5/7.5 kW (15HP)
    Spindle Indeing:                         C-Axis - 0.001 degree
Tool Spindle
    Type:                                    1 spindle with ATC
    B Axis Index Angle/position              -15 to 195 dgree / .001 degree
    Spindle Index Angle/position:            90 degree/ 4 postions
    Max Tool Spindle Speed:                  10,000 rpm
    Drive Motor Output:                      5.5/2.2 kW (7.5 HP)

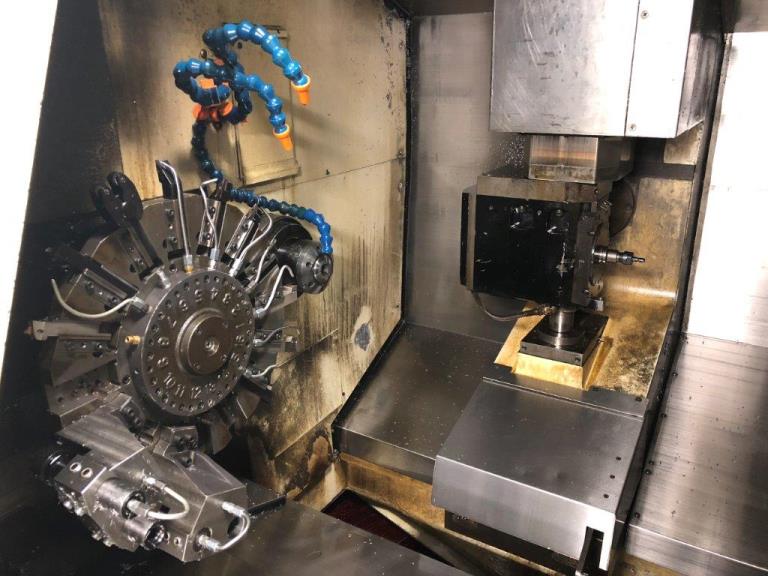

Turret
    Number of Tool Stations                  16
    Squart Tool Size:                        3/4 x 3/4 x 5"
    Drill Holder Sleeve Diam:                1 1/4"
    Indexing Method:                         Servo Motor
Back Spindle
    Max Spindle Speed:                       6000 rpm
    Drive Motor Output:                      11.5/7.5 kW (15HP)
    Spindle Index Angle:                     C Axis - .001 degree
Stroke:
    X1 (Tool Spindle):                       380mm (14.96")
    Y1 (Tool Spindle):                       4.33" (+/- 2.16")
    A1 (Tool Spindle):                       22.05 + 5.32 for ATC
    X2 (Turret):                             130mm (5.12")
    A2 (Turret):                             800mm (31.49"
    Z1 (Main Spindle):                       250mm (9.84")

    Z2 (Back Spindle):                       800mm (31.49")
Feed Rate
    A1, A2, Z2:                              40 m/min (1574 ipm)
    X1, X2, Y1, Z1:                          24 m/min (945 ipm)
ATC
    Tool Shank Shape:                        Kennametal KM40XTS
    Max Tool dim:                            80mm x 150 mm (4kg)
                                             3.15: x 5.9" (8.82 lbs)
    Number of tools stored:                  60 (ops: 30 & 118)
    Tool Change Time:                        0.8 sec
Power
    Weight:                                  6000 kg ( 13,300 lbs)
    Power Source Requirements:               40 KVA
    Pnuematuc Pressure:                      0.4 Mpa (58 psi)
    Air Consumption:                         100 ML/min (3.5 cfm)
    Dimensions (LxWxH):                      3650 x 2200 x 2000 mm
                                             144" x 86.6" x 78.7"
