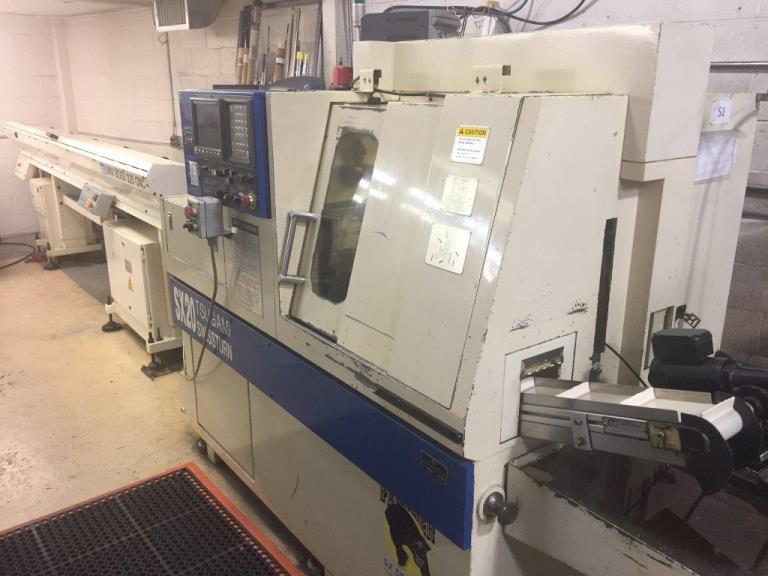

3/4" TSUGAMI BS20B (SX20B) 1995, Fanuc LA-1, 3Rot/7OD/4ID/3BW. Iemca Loader Automatics & Machinery Co Inc

3/4" TSUGAMI BS20B (SX20B) 1995, Fanuc LA-1, 3Rot/7OD/4ID/3BW. Iemca Loader Our stock number: 394770

3/4 TSUGAMI BS20B (SX20B) 1995, Fanuc LA-1, 3Rot/7OD/4ID/3BW. Iemca Loader

Click on picture below for larger version

Click the link below to view a video demonstration of this machine
https://www.youtube.com/watch?v=iqY81jYuodM&feature=youtu.be

All detail must be confirmed by the buyer


Equipped with:

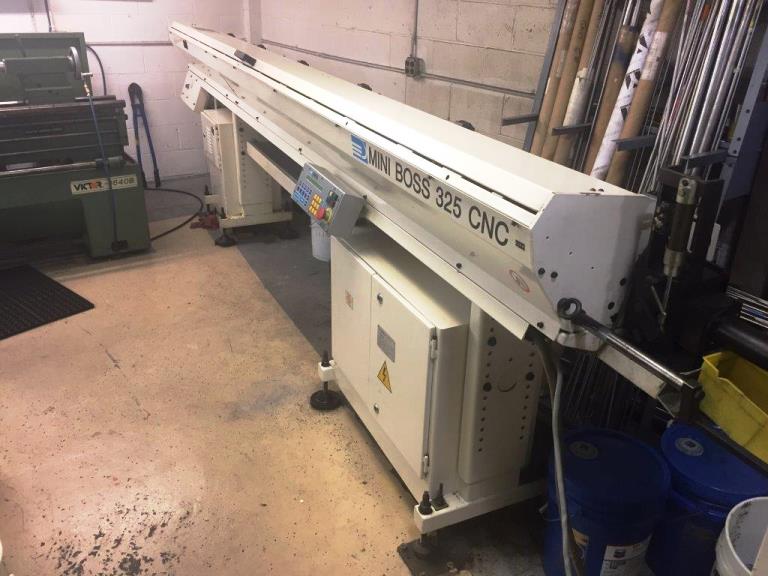

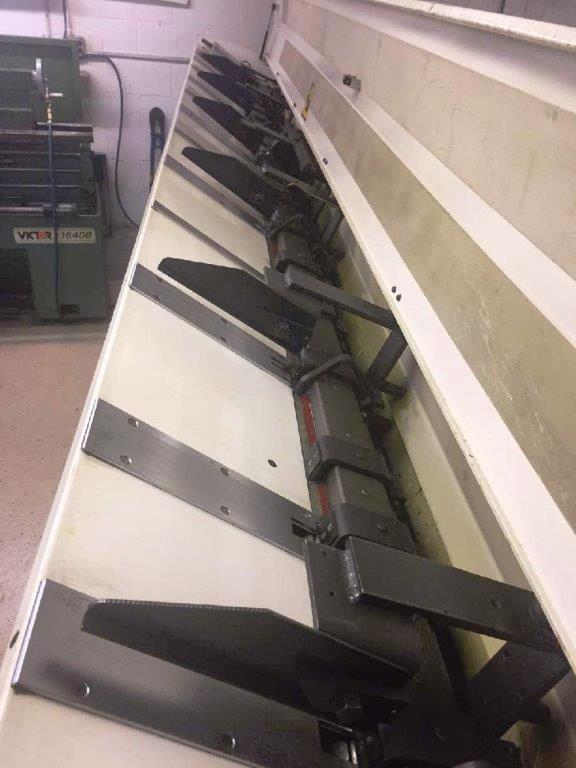

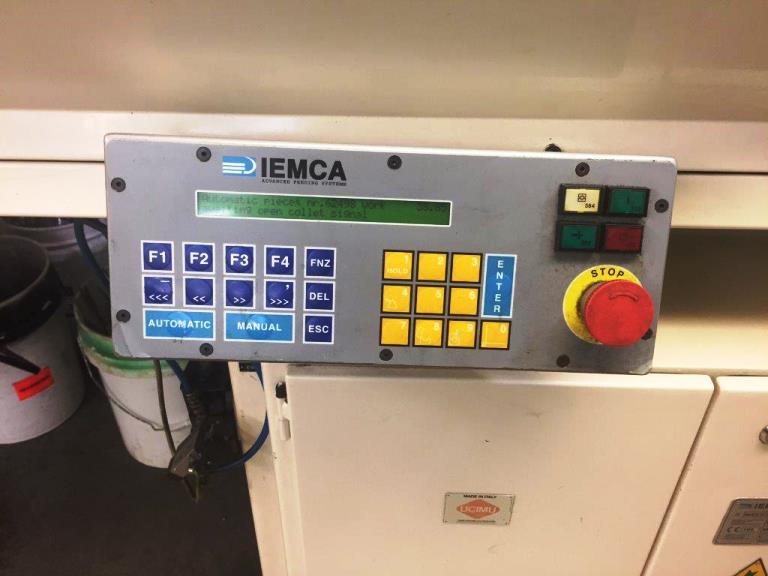

  =Iemca Mini Boss 325 Hydrostatic Magazine Bar Loader
  =Signal Light

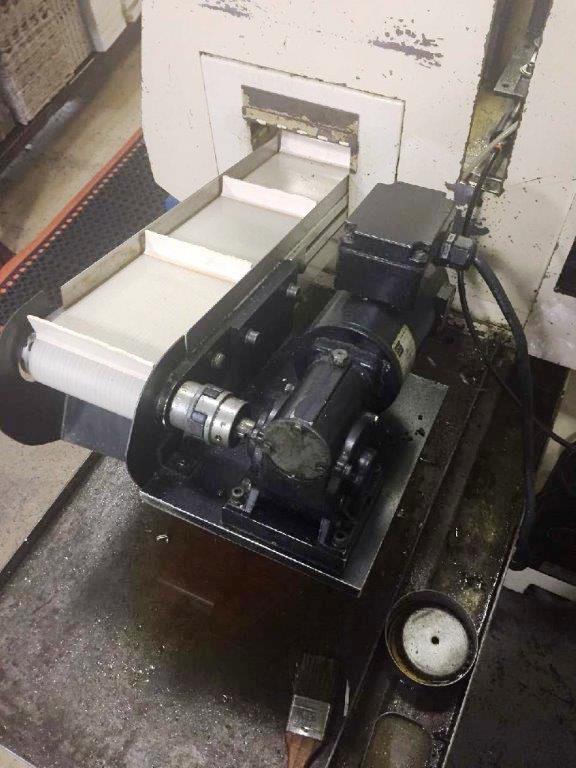

  =Part Chute
   This has 2 year old, linier guides on Z2 and X2



General Specifications:

Control:                                    Fanuc LA-1
Maximum Bar Diameter:                       20mm (3/4")
Tooling Sizes, turning:                     5/8" square
Z2 Axis Travel, In and Out (Synch to Z1)    7.88"
Z1 Axis Travel:                             8.21"
Main Spindle Indexing:                      5 degree
Speed Range of Main Spindle:                200 to 8000 rpm
Main Motor:                                 5 HP
Sub-spindle Specifications:
   Maximum Diameter:                        3/4" (20mm)
   Speed Range:                             200-6000 rpm
   Power Rating:                            2.0/2.9 HP AC
Dimensions (approx):                        72" x 46" x 67"
Weight (approx):                            5100 lbs.

Equipped with:
   Iemca Mini Boss 325 Hydrostatic Magazine Bar Loader
   Signal Light
   Part Chute
