Trumpf Trulaser 2025, 2008, 4' x 10', Siemens, Robotic Load/Unload   Our stock number: 399595

Trumpf Trulaser 2025, 2008, 4' x 10', Siemens, Robotic Load/Unload

Click on picture below for larger version
Trumpf Trulaser 2025, 2008, 4' x 10', Siemens, Robotic Load/UnloadTrumpf Trulaser 2025, 2008, 4' x 10', Siemens, Robotic Load/UnloadTrumpf Trulaser 2025, 2008, 4' x 10', Siemens, Robotic Load/UnloadTrumpf Trulaser 2025, 2008, 4' x 10', Siemens, Robotic Load/Unload
Trumpf Trulaser 2025, 2008, 4' x 10', Siemens, Robotic Load/UnloadTrumpf Trulaser 2025, 2008, 4' x 10', Siemens, Robotic Load/UnloadTrumpf Trulaser 2025, 2008, 4' x 10', Siemens, Robotic Load/Unload

All Information From OEM Brochure Should Be Verified By Buyer:

Equipped With:
   Siemens Sinumerik 840D Control

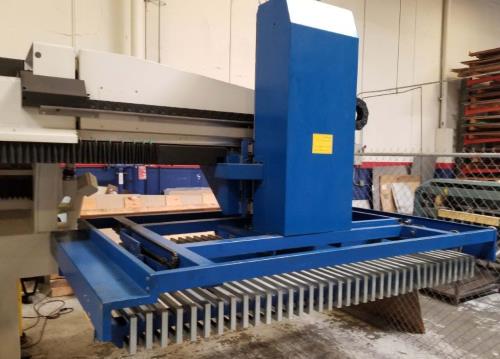

   Compact Robotic Load/Unload

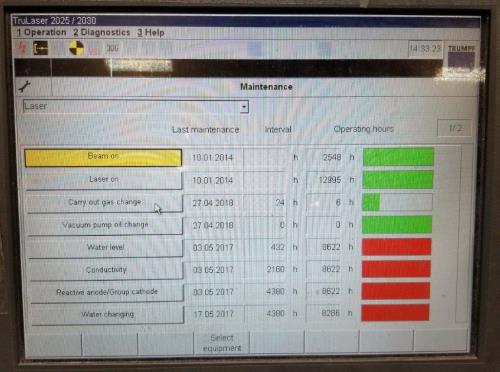

   Laser On Hours:                        12,724
   Beam On Hours:                         2,479

General Specifications As Per Brochure:
Laser Power:                              3200 Watts
Table Size:                               4' x 10'
Positioning System Design:                Flying Optic Resonator
                                          Trumpf Trucoax
X-Axis Travel:                            120"
Y-Axis Travel:                            48"
Z-Axis Travel:                            4.5"
Number of Tables:                         1
Machine Weight:                           35,000 lbs
