TRUMPF TRULASER 2030, 2007, 120"X, 60"Y, 4.5"Z, Siemens 840D, Chiller   Our stock number: 394816

TRUMPF TRULASER 2030, 2007, 120 X, 60 Y, 4.5 Z, Siemens 840D, Chiller

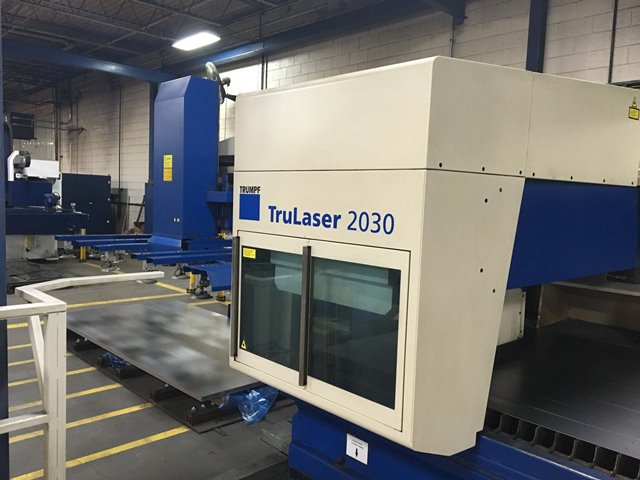

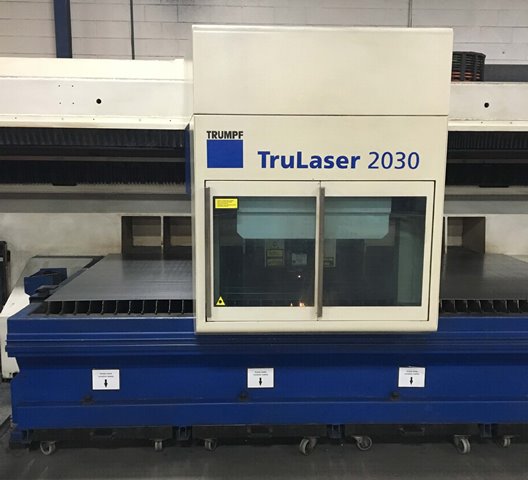

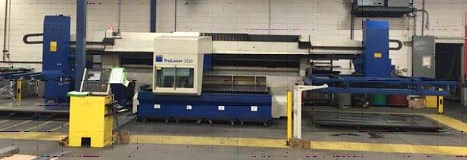

Click on picture below for larger version
TRUMPF TRULASER 2030, 2007, 120 X, 60 Y, 4.5 Z, Siemens 840D, ChillerTRUMPF TRULASER 2030, 2007, 120 X, 60 Y, 4.5 Z, Siemens 840D, ChillerTRUMPF TRULASER 2030, 2007, 120 X, 60 Y, 4.5 Z, Siemens 840D, Chiller
TRUMPF TRULASER 2030, 2007, 120 X, 60 Y, 4.5 Z, Siemens 840D, ChillerTRUMPF TRULASER 2030, 2007, 120 X, 60 Y, 4.5 Z, Siemens 840D, ChillerTRUMPF TRULASER 2030, 2007, 120 X, 60 Y, 4.5 Z, Siemens 840D, Chiller

Specification from OEM brochure (all details should be confirmed by buyer):

Equipped with:

  New 2Kw Resonator Installed May 2012
  Beam On Hours: 3,848

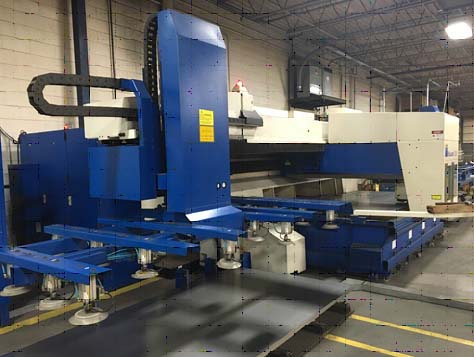

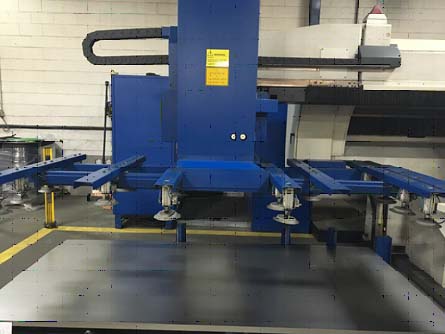

  Dual Automatic Pallet Changer
  Dust Collector
  Chiller

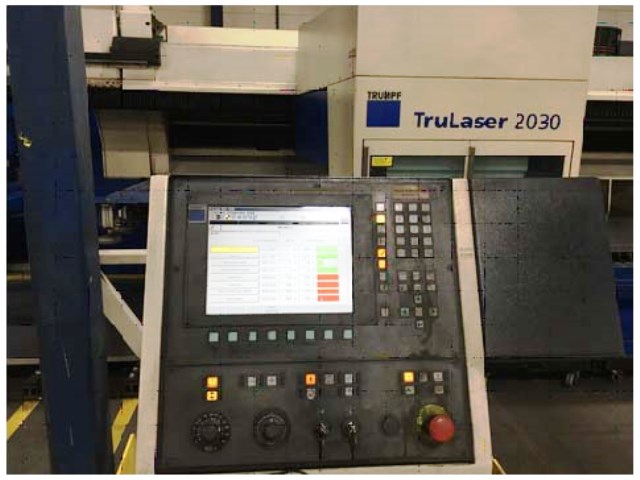

  Siemens Sinumerik 840D Control

Specifications:
  Maximum Speed Simultaneous:                  6,693 IPM
  Maximum Workpiece Weight:                    1,257 lbs
  Maximum Sheet Thickness:
    Mild Steel:                                0.5"
    Stainless Steel:                           0.25"
    Aluminum:                                  0.2"
Working Range:
  X-Axis:                                      120"
  Y-Axis:                                      60"
  Z-Axis:                                      4.5"
Overall Dimensions (approx.):                  449"l x 252"w x 108"h
Overall Weight (approx.):                      33,731 lbs
