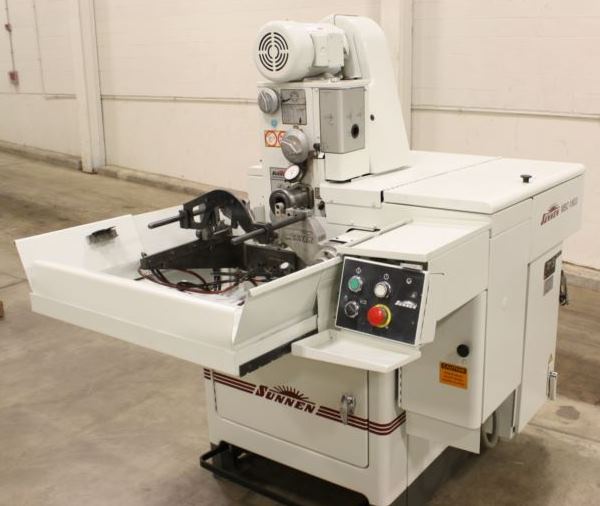

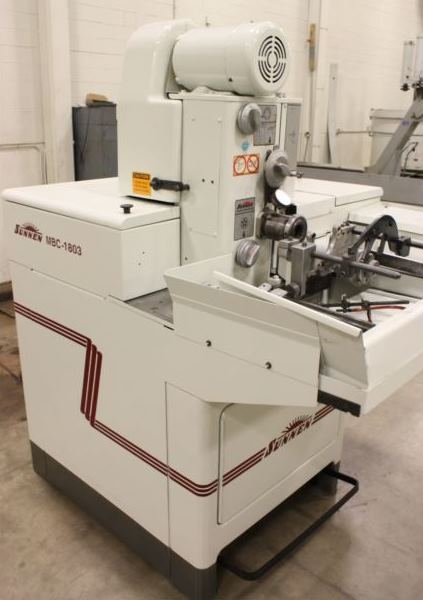

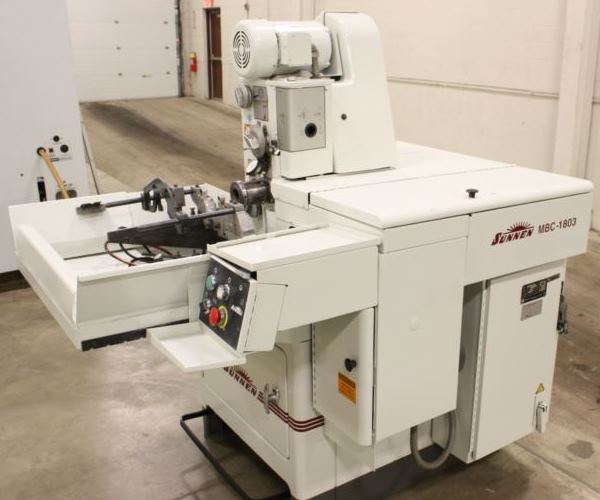

MBC-1803D Sunnen, 0.060"-3.75", '95, Power Str, Autosize, Stone Saver
Our stock number:
399196
Click on picture below for larger version
Serial No. 1T1-93642
*Preliminary Specifications Subject to Verification.
CATALOGUE SPECIFICATIONS:
I.D. Range:
For Auto Sizing.................................................1/8" - 2"
For Power Stroking........................................0.060" - 3-3/4"
For Manual Stroking.......................................0.060" - 6-1/2"
Main Spindle Motor.....................................................1HP
Length Range:
Open Bores using Auto Sizing..........................................10"
Open or Blind Bores using Power Stroking..............................16"
Spindle Speeds (12)..........................200, 250, 320, 400, 500, 640,
800, 1000, 1270, 1600, 2000,
2500 RPM
Stroking Rates......................................80,110,160,220,310 SPM
Power Stroker Motor.................................................1/2 HP
Electrics....................................................230V/3Ph/60Hz
Dimensions - Actual...........................39"(L-R) x 53"(F-B) x 62"(H)
Weight - Approximate............................................1,200 Lbs.
EQUIPPED WITH:
Power Stroking (Can also be Manually Stroked)
Stone Saver
Automatic Cycling
Heavy & Light Cutting Pressure Controls
Adjustable Length Work Tray
