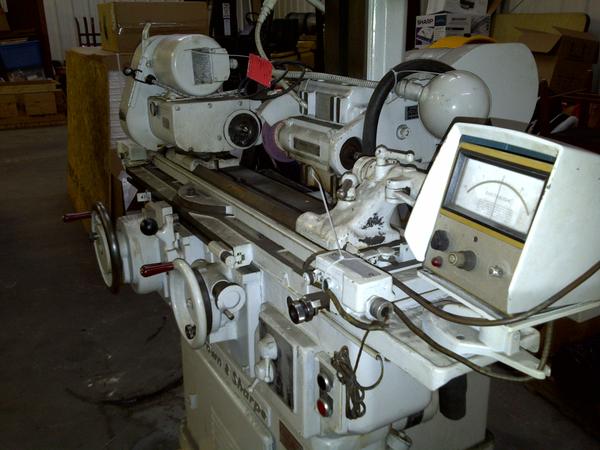

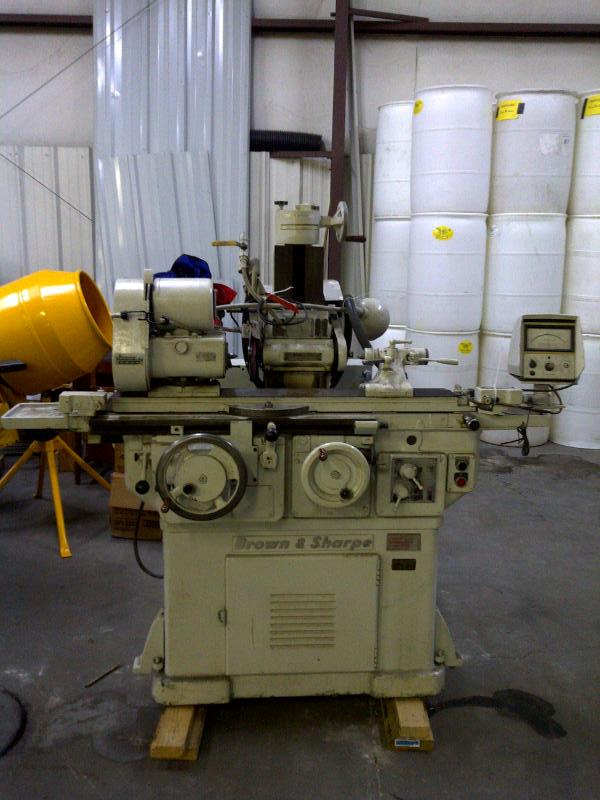

Click on picture below for larger version

To the best of our knowledge all details listed below are deemed correct. It

is the buyer's responsibility to confirm all details and we encourage an

inspection of the machine(s) and accessories prior to purchase.

Equipped With:
   Universal Wheelhead, Table & Workhead
   Double Ended Wheel Spindle
   Dual Live/Dead Headstock Spindle
   Fine Cross Feed Knob (.0001" on Work Diameter)
   Vertical Handwheel Graduated to Read .0005"
   Collet Attachment Using Brown & Sharpe #11 Collets
   Anti-Friction Bearing Wheelhead Spindle
   Can be Used w/ 5", 7" or 10" Diameter Grinding Wheels

General Specifications:

Capacity:
   Grinding Diameter:                     8"
   Grinding Length:                       14"
   Distance Between Centers:              24"

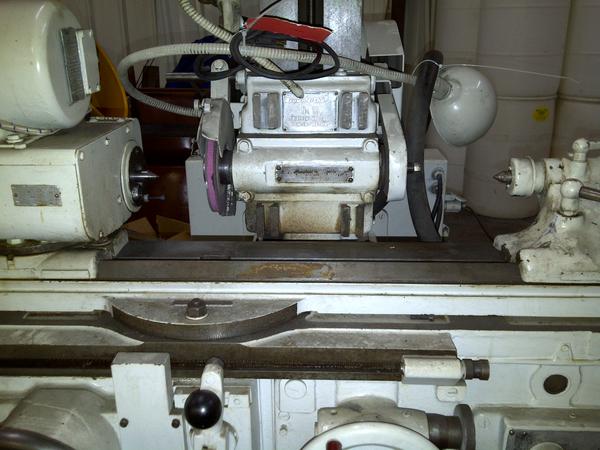

Wheelhead:
   Grinding Wheel Size:                   7" x 1/2"W x 1-1/4B"
   Grinding Wheel Speeds:                 2,730, 3,600, 5,150 RPM
   Wheelhead Travel:                      8-3/8"
   Wheelhead Swivels, Left & Right:       110 Degrees
   Vertical Adjustment:                   8-3/8"

Swivel Table:
   Angular Setting Left to Right:         90 Degrees
   Fine Screw Adj. for Setting Tapers:    3" Per Foot
   Table Travel:                          22"
   Power Table Speeds (6):                7-3/4" to 100" IPM
   Travel Per Rev. of Handwheel:          1/4" Slow - 6-1/4" Fast

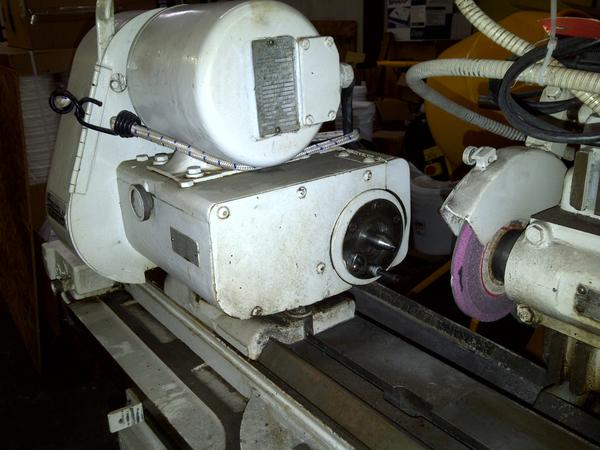

Headstock
   Swivels Left to Right:                 100 Degrees
   Spindle Speeds (4):                    128 - 540 RPM
   Spindle Taper:                         B&S No. 7
   Tailstock:                             B&S No. 7

Machine Dimensions:                       65" x 55" x 64"
Machine Weight:                           2,900 lbs
