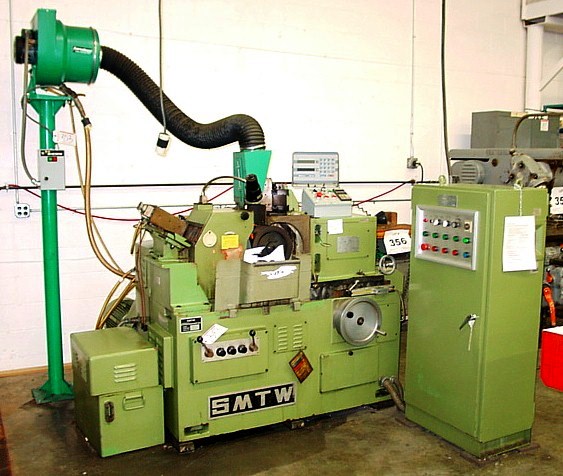

General Specifications As Per Brochure (Buyers are responsible for confirming

all details below)

Equipped With:

Automatic Infeed of the Regulating Wheel (Option)

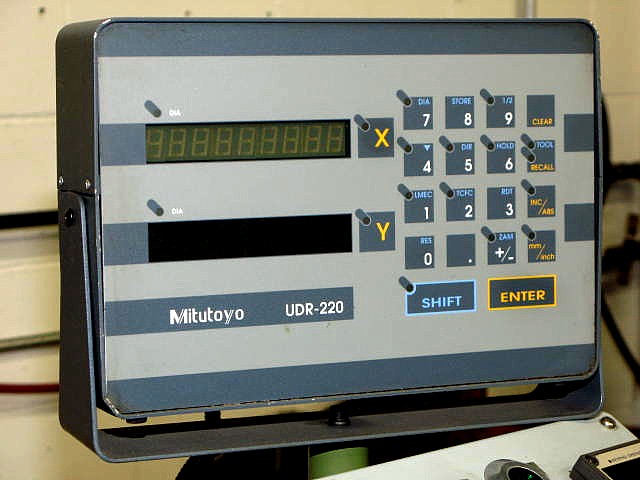

"MITUTOYO" Digital Readout Display for the Movement of the Regulating
Wheel
Hydraulic Dressing of Both Grinding and Regulating Wheels
GE Electronic Variable Speed Drive Providing Infitely Variable
Spindle Speeds for the Regulating Wheel

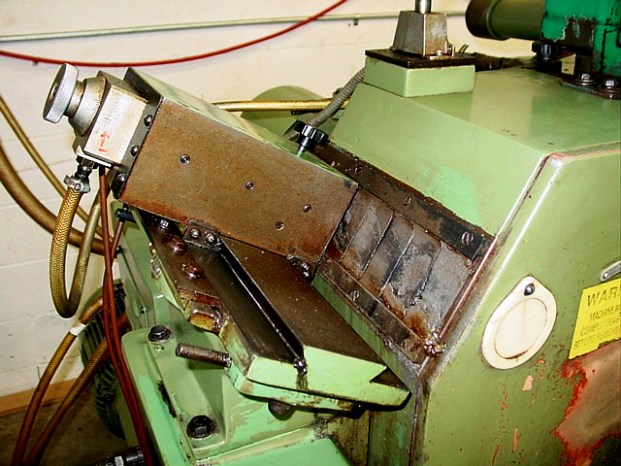

Work Rest, For Infeed, with Parts Ejector
Work Light

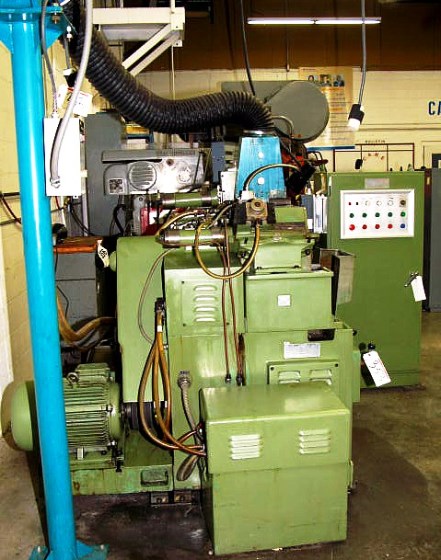

Coolant System
14.74 H.P. Grinding Wheel Motor
2 H.P. Regulating Wheel Motor
1  H.P. Hydraulic Pump Motor

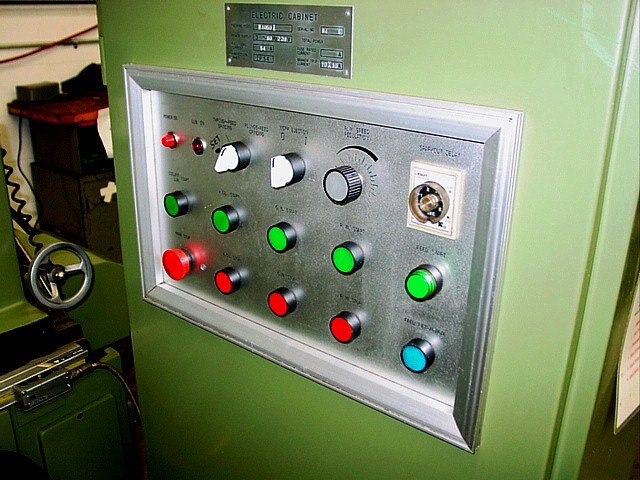

Machine is Presently Wired for 3/60/220 Volts

Specifications:

Capacity, Diameter Range ........................0.02" to 2"

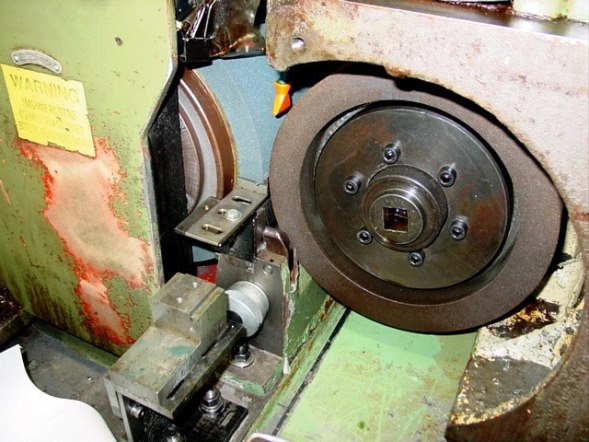

Grinding Wheel Size .............................15.7" x 6" x 8"
Regulating Wheel Size .......................... 12" x 6" x 5"
Grinding Wheel Speed ............................1668 RPM
Infinitely Variable Regulating Wheel Speed...... 20-200 RPM
Regulating Wheel Swivel in Vertical Plane ...... -2-+5
                        in Horizontal Plane .... -1-+3

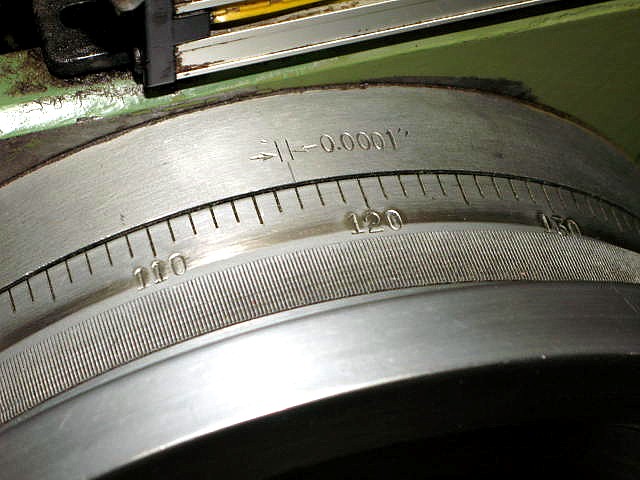

Feed per Division of Handwheel ..................0.0001"
Feed per Turn of Handwheel ......................0.016"
Feed per Division of Dressing Dial ..............0.0005"
Height from Connected Line Between (2) Wheel
Axes to Workrest Bottom .......................  8.66"


Approx. Weight ................................  7,000 lbs
Approx. Floor Space ............................ 97.6"L x 83.5"W x 58.2"H
