(New) BAR CHAMP #108-JB-3, 3HP, 360 RPM, 1/2" - 4-1/4" ROUND, 41" BAR HEIGHT Automatics & Machinery Co Inc

(New) BAR CHAMP #108-JB-3, 3HP, 360 RPM, 1/2" - 4-1/4" ROUND, 41" BAR HEIGHT Our stock number: 400840

(New) BAR CHAMP #108-JB-3, 3HP, 360 RPM, 1/2 - 4-1/4 ROUND, 41 BAR HEIGHT

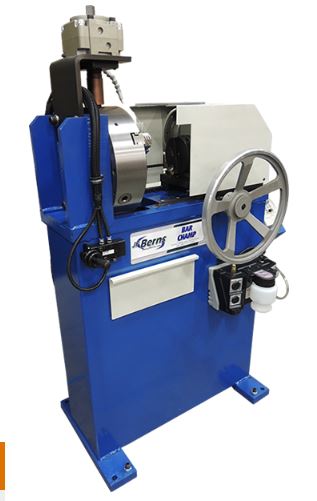

Click on picture below for larger version

General Specifications As Per Brochure

Bar Capacity:
   Round:                               1/2" - 4-1/4"
   Hex:                                 3-3/4"
   Square:                              3"
Bar Height:                             41"
HP:                                     3
RPM:                                    360
Min. Part Length:                       18"
Mach. Width:                            41"
Mach. Length:                           40"
Weight (Approx):                        530 lbs
Equipped with (must be verified by buyer):
   30 degree Chamfer tool standard w/3/4" square 8 sided carbide insert
   3-jaw chuck.  Chuck & bar remain stationary, the cutter revolves around
     the bar.
   Single speed positive drive gear box (no blets to slip or adjust)
   230/460 volt, 3 phase, 60hz motor & switch
   Adjustable bar & slide stops for consistent chamfering
   Ball bearing ways
   Removable chip pan
   Bar support stand
Optional Equipment

** Prices subject to change without notice ***

Air Operated Chucking (Actuators, Valves, & Brackets Included) $1,695.00
Variable Speed (AC Inverter with 3 HP Motor) (58 - 700 R.P.M.)
For deep chamfers on hard or difficult to machine materials ...$1,450.00
Mist Spray Coolant System (May be recommended for deep chamfers on
difficult to machine materials) ...............................$  445.00
Cutting Oil Drip System+
(For deep chamfers on difficult to machine materials) .........$  695.00
Square Stock Adapter (Up To 2") (One Needed For Each Dia) .... $  325.00
Castors .......................................................$  895.00
Additional Bar Support Stand, 2,000 Lb. Capacity ..............$  235.00

Turn and Chamfer Toolholder (#5279) with Inserts
 (Fits in Standard Cutterhead)................................ $  425.00
-Replacement Inserts (TPMT 3252MF) .....................(each) $   29.00
Additional 30-Degree Chamfer Toolholder (#5069)
 with 3/4" Carbide Insert .....................................$  345.00
-Replacement 3/4" insert for #5069 Toolholder (SNMP-643) ......$   27.00
-Replacement Insert Screw for #5069 Toolholder (0530641) ......$   16.50
Tube Head Assembly (For simultaneous ID & OD Deburring and Facing
of Tubing) This Clamps Into the standard 300-1 series cutterhead
(ID, OD, and Facing Cartridges & Inserts included) ............$  975.00
Special Toolholders (Alternate degree chamfer, Special length Turn and
Chamfer, Chamfer and Face, etc.) ..............................   Quoted
Heat Treated crate for Int'l Shipments ........................$  625.00
