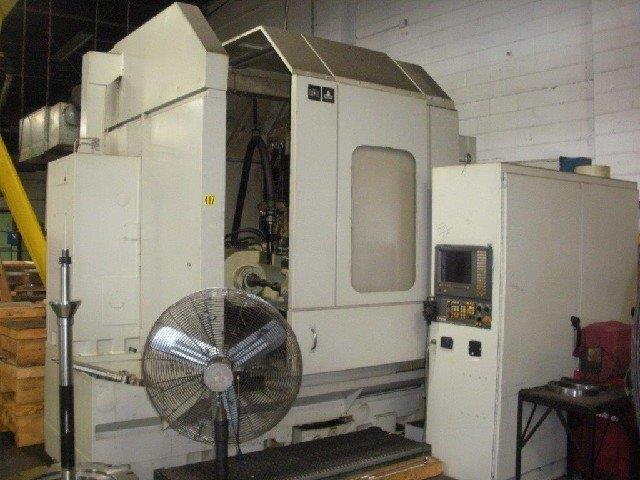

WMW ZFWZ08, Fanuc 15M, Tailstock, Conveyor   Our stock number: 337965

WMW ZFWZ08, Fanuc 15M, Tailstock, Conveyor

Click on picture below for larger version
WMW ZFWZ08, Fanuc 15M, Tailstock, ConveyorWMW ZFWZ08, Fanuc 15M, Tailstock, ConveyorWMW ZFWZ08, Fanuc 15M, Tailstock, ConveyorWMW ZFWZ08, Fanuc 15M, Tailstock, Conveyor

General Specifications As Per Brochure (Please Verify Details):

Workpiece Diameter
DP - Hobbing Method                            1.8
DP - Single Indexing                           1.4
Axial Feeding Travel                           22"
Tangential Feeding Travel                      8.7"
Helix Angle                                    45

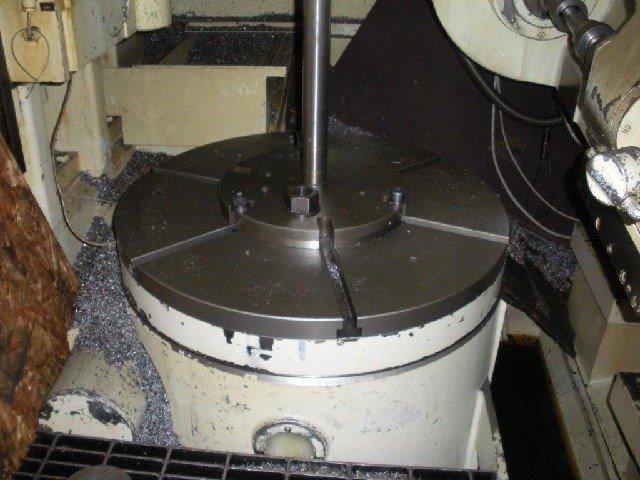

Work Table Diameter:                           31.5"
Work Table Speed:                              15 RPM
Minimum Number of Teeth (single indexing)      6
Work Table Load:                               3,970 lbs
Hob Diameter:                                  11.8"
Hob Length:                                    13.8"
Hob Speeds (variable):                         20-400 RPM
Main Motor:                                    64 HP
Machine Weight:                                35,270 lbs
Machine Dimensions:                            16' x 11"

Equipped With:
  Fanu 15M CNC Control

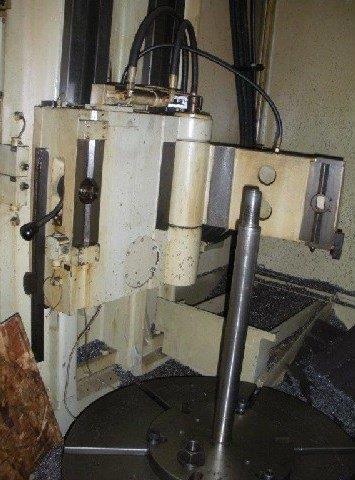

  Tailstock
  Chip Conveyor
  Full Enclosure
