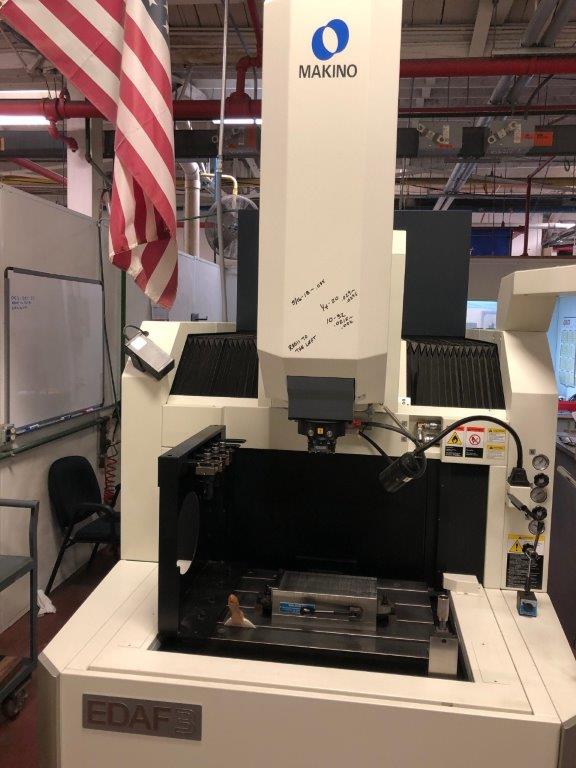

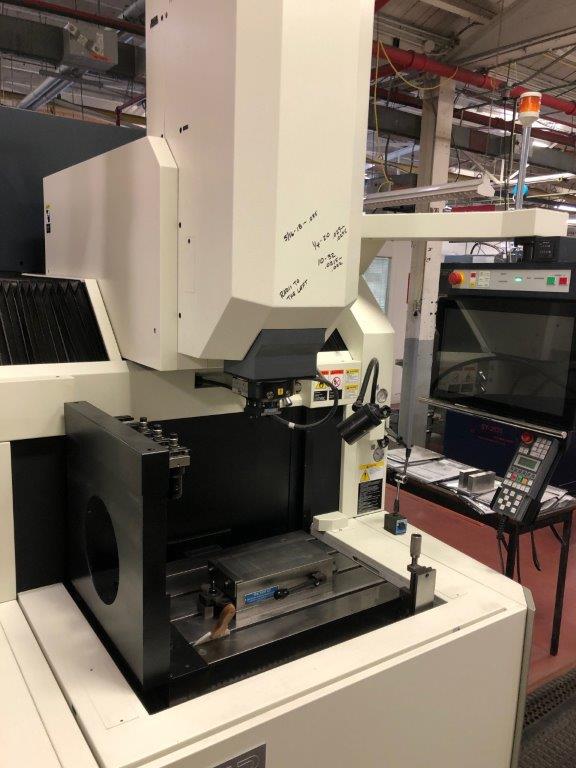

Click on picture below for larger version

Specification from OEM Brochure (All details should be confirmed by buyer)

OEM spec. Nothing confirmed yet
Equipped With:
 MGH6 CNC Controller W/ Super Spark IV
 16-Electrode Magazine ATC
 Auto Chuck - EROWA ITS
 Dielectric Fluid Cooling Unit
 Centering Probe Measuring Probe Set
 Fire Extingusher
 Chiller Air Deflector
 Single Point Flushing Nozzle Set
 Portable Control Panel (FPB2)
 Clamp Set


Table Size 27.5" x 19.7"
X 17.7"
Y 13.8"
Z 13.8"
Tank Size 33.46" x 25.6" x 15.75"
Drop Tank Yes
Max Electrode Weight 165 lbs
Power Supply 60 AMP
Voltage 480 3-Phase
