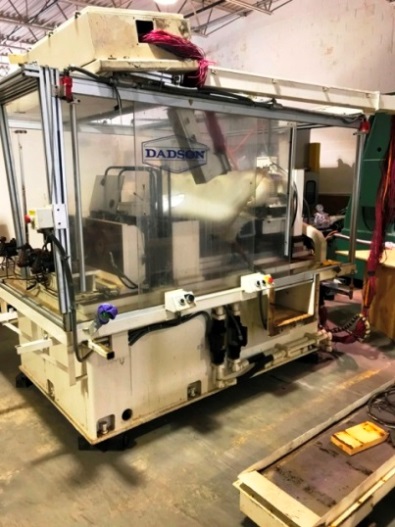

Upto 1.375"x 30", DADSON, #DS (6)1030-BTA, 1999, 4-spindle servo drive, HPC   Our stock number: 398263

Upto 1.375 x 30 , DADSON, #DS (6)1030-BTA, 1999, 4-spindle servo drive, HPC

Click on picture below for larger version
Upto 1.375 x 30 , DADSON, #DS (6)1030-BTA, 1999, 4-spindle servo drive, HPCUpto 1.375 x 30 , DADSON, #DS (6)1030-BTA, 1999, 4-spindle servo drive, HPCUpto 1.375 x 30 , DADSON, #DS (6)1030-BTA, 1999, 4-spindle servo drive, HPC
Upto 1.375 x 30 , DADSON, #DS (6)1030-BTA, 1999, 4-spindle servo drive, HPCUpto 1.375 x 30 , DADSON, #DS (6)1030-BTA, 1999, 4-spindle servo drive, HPCUpto 1.375 x 30 , DADSON, #DS (6)1030-BTA, 1999, 4-spindle servo drive, HPC

Capacity:                             0.2 - 1.375" diam
Stroke:                               30"
Distance between spindles             9"

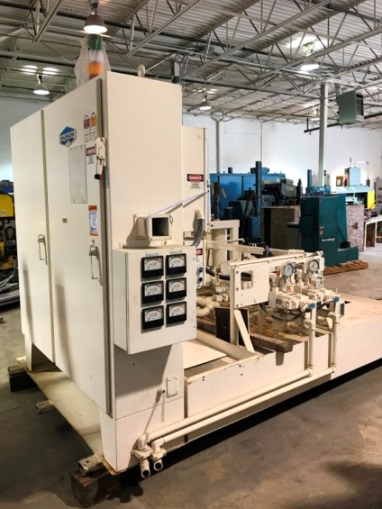

High Pressure Coolant system, #DS.2.60.650
Rotating Support

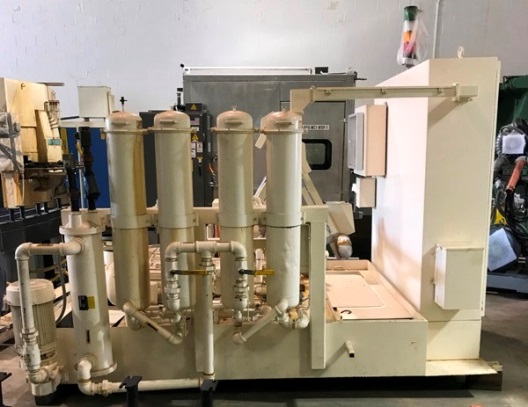

Large coolant tank & with pump, 4-filtration units

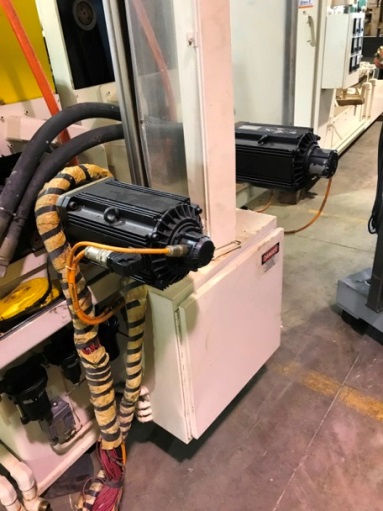

Servo Feed Motors

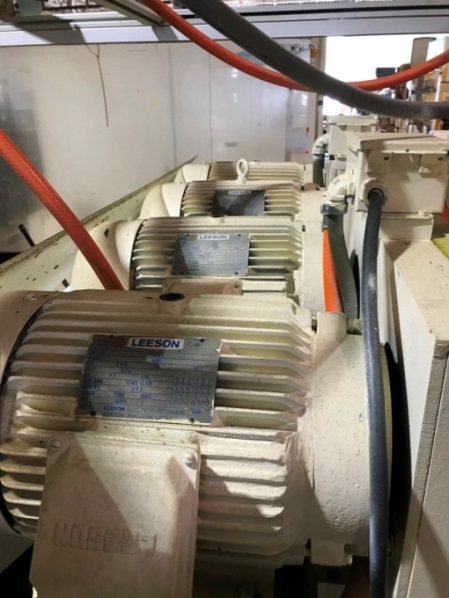

Leeson Drive Motors

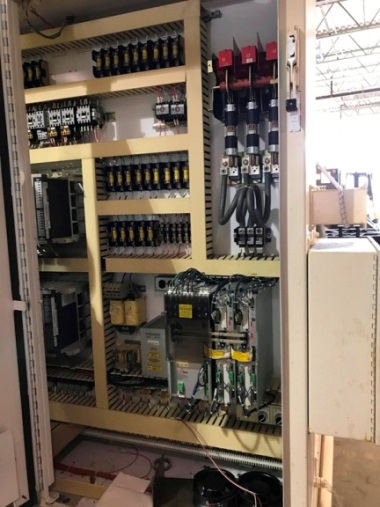

Electrical cabinet

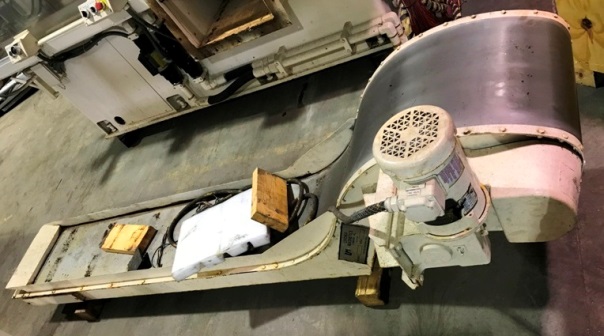

Magnetic Chip Conveyor

Motes: Last job this machine ran was drilling a part that was 29 inches
long and they were drilling a 19 inch deep hole.
Assorted drawings, schematics & manuals (not sure if they are complete)
