Click the link below to view a video demonstration of this machine
https://youtu.be/7bf0ZmTCJdc
Replacement Cost $70K
Specifications

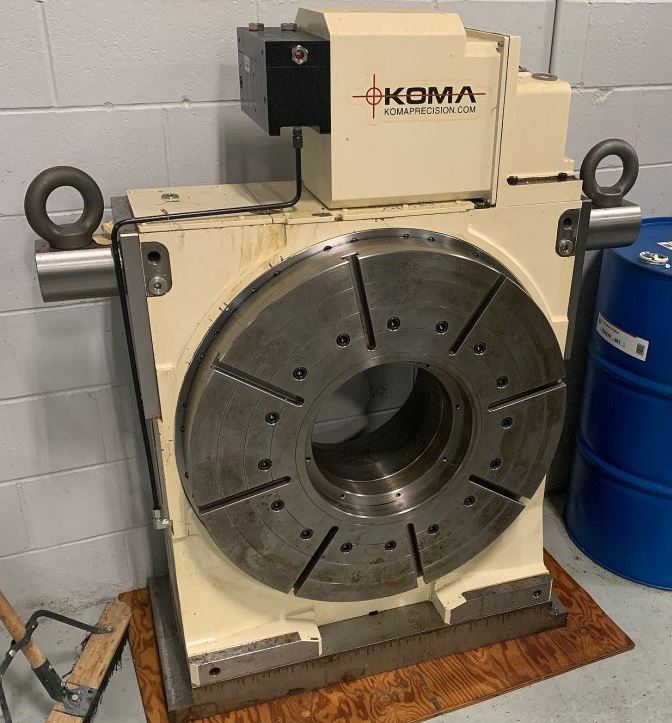

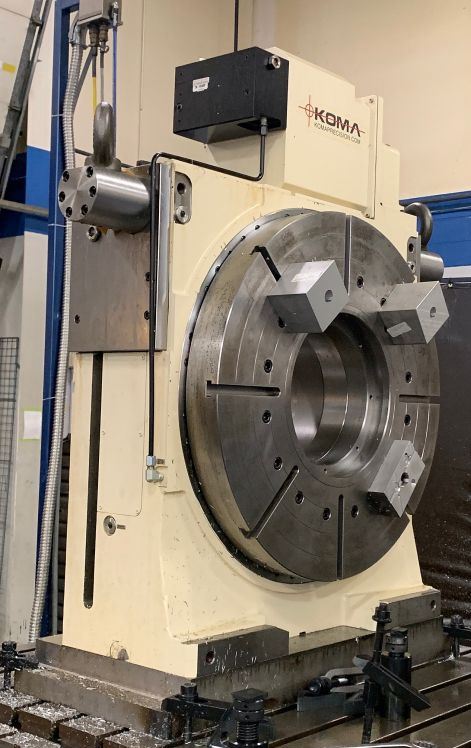

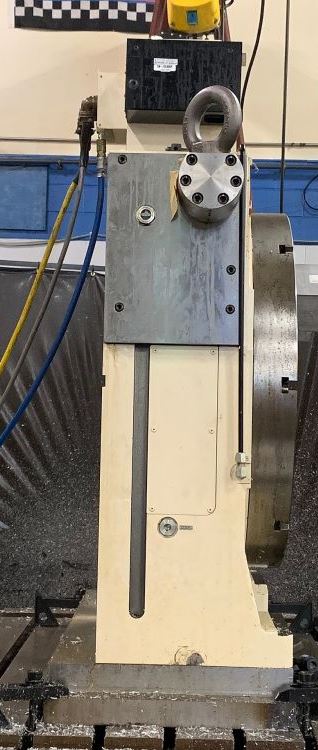

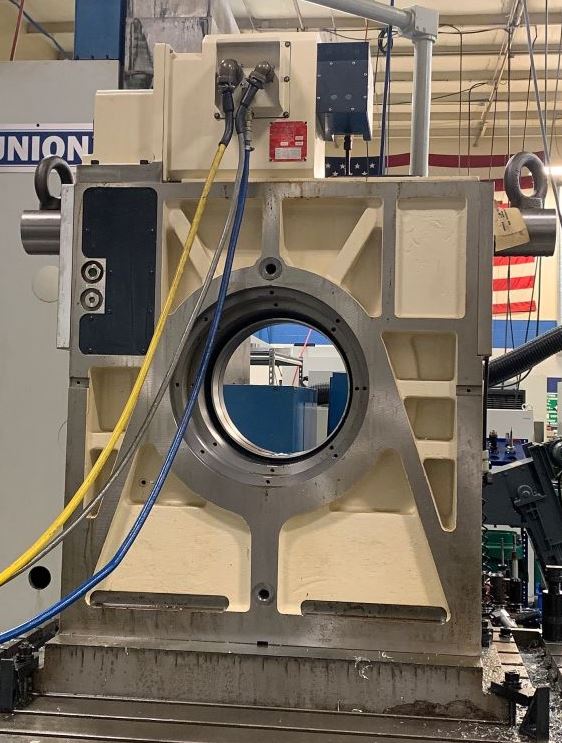

Table Model RCV-800K
Table diameter 800mm (31.5")
Center height 530mm (20.86")
Center bore thru diameter 310mm (12.2")
Table T-slot width w18 x H7
Guide block width w22 x H7
Servo motor Alpha 12i
Maximum motor speed 3000 RPM
Speed reduction ratio 1/360
Maximum table speed 8.33 RPM
Clamp system Hydraulic
Clamp torque @500psi Nm (ft. lbs.) 7,000 (5,159)
Indexing accuracy +,- 7.5 arc/sec
Repeatability +,- 2.0 arc/sec
Allowable wheel torque 7,840Nm (5,778 ft/lbs)
Net Weight 1450Kg, (3,190lbs)
Overall dimensions 47.5"W x 51.3"H x 14.8"D
Equipped With:
Alpha 12i Motor for Fanuc OS
