84"X, 40"Y, 30"Z, Haas VF-9, 2003, Rigid Tap, 10K RPM, Chip Auger   Our stock number: 404905

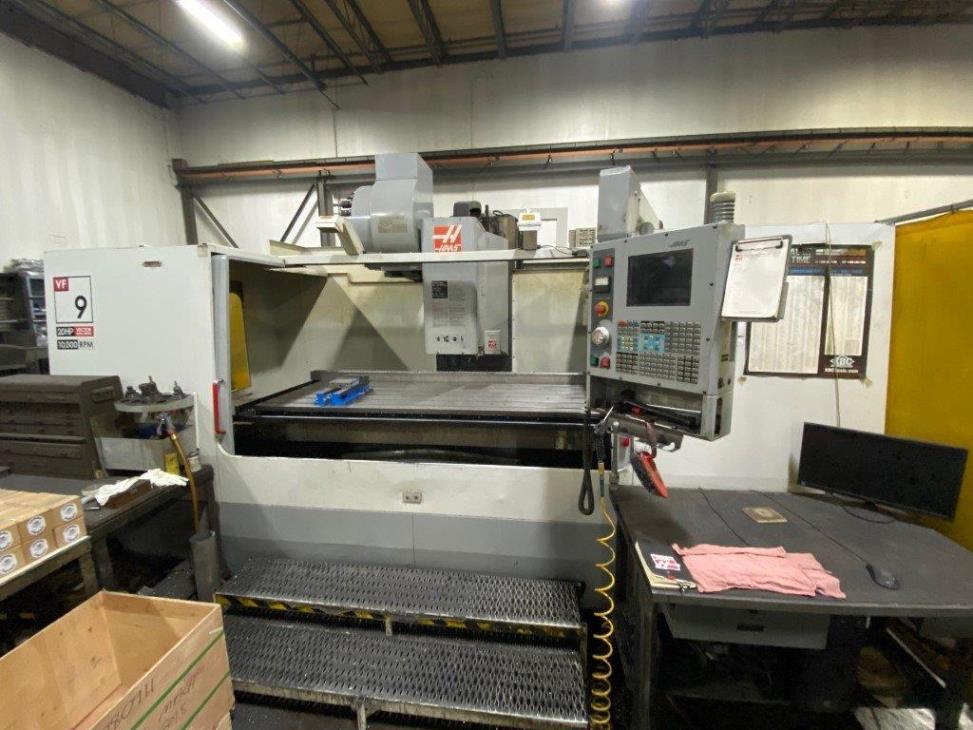

84 X, 40 Y, 30 Z, Haas VF-9, 2003, Rigid Tap, 10K RPM, Chip Auger

Click on picture below for larger version
84 X, 40 Y, 30 Z, Haas VF-9, 2003, Rigid Tap, 10K RPM, Chip Auger84 X, 40 Y, 30 Z, Haas VF-9, 2003, Rigid Tap, 10K RPM, Chip Auger84 X, 40 Y, 30 Z, Haas VF-9, 2003, Rigid Tap, 10K RPM, Chip Auger84 X, 40 Y, 30 Z, Haas VF-9, 2003, Rigid Tap, 10K RPM, Chip Auger

To the best of our knowledge all details listed below are deemed correct. It

is the buyer's responsibility to confirm all details and we encourage an

inspection of the machine(s) and accessories prior to purchase.

Equipped With:

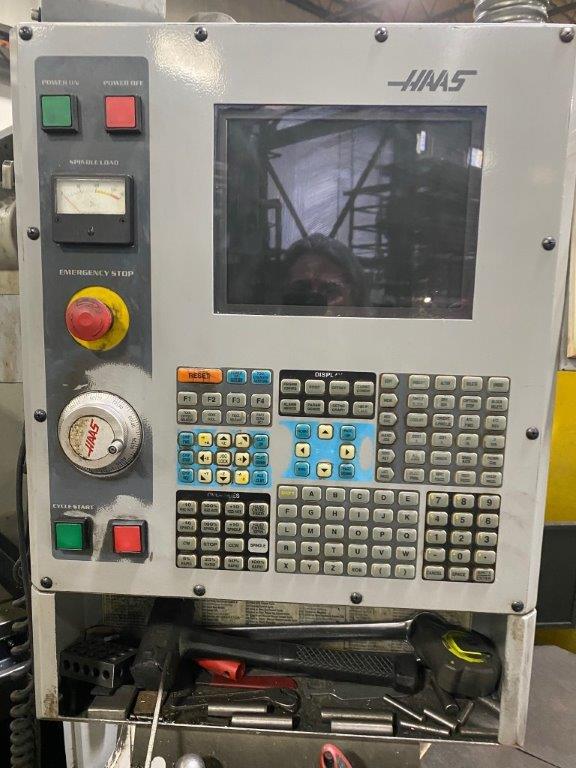

   Haas CNC Control
   Rigid Tap
   High Intensity Lighting
   3.5" Floppy Drive
   Chip Auger

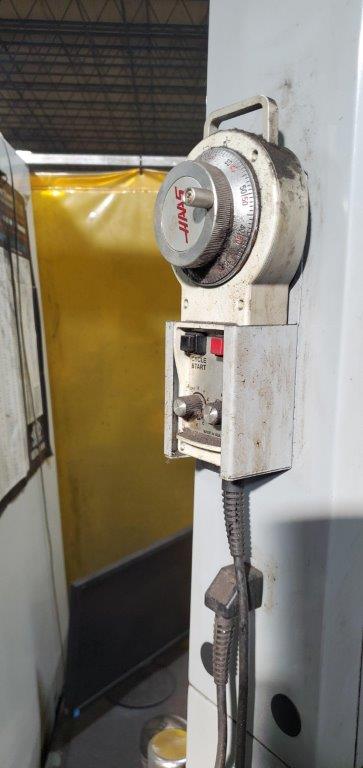

   Remote Jog Handle
   Coolant Tank & Pump

General Specifications:
   Table Size:                            84" x 36"
   Table Load:                            4,000 lbs
   X-Axis Travel:                         84"
   Y-Axis Travel:                         40"
   Z-Axis Travel:                         30"
   Spindle Nose to Table Top:             4" - 34"
   Spindle Taper:                         CT 40
   Spindle Speed:                         10,000 RPM
   Spindle Motor:                         20 HP

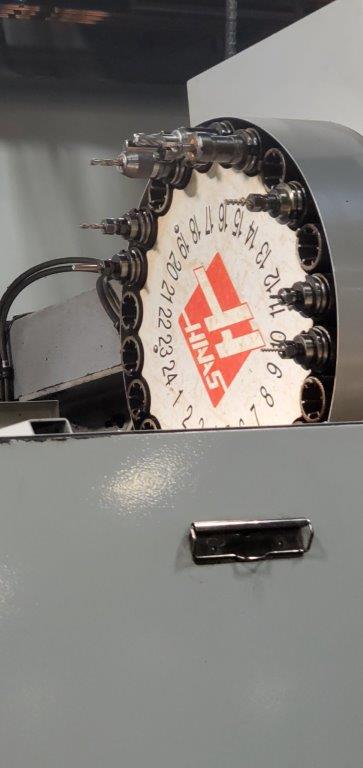

   Tool Positions:                        24+1

Machine Power:                            480 Volt
Machine Dimensions:                       183" x 139"
Machine Weight:                           25,000 lbs
