To the best of our knowledge all details listed below are deemed correct. It

is the buyer's responsibility to confirm all details and we encourage an

inspection of the machine(s) and accessories prior to purchase.

Equipped With:
   Haas CNC Control
   Rigid Tapping
   Hinge Belt Type Chip Conveyor (Left Side Exit)
   5-Axis Simultaneous Contouring Capability
   Integral Rotary Tilt Trunnion Table
   Through Spindle Coolant (300 psi)
   Wireless Intuitive Probing System
   Programmable Coolant Nozzles
   Remote Jog Handle
   1 GB Memory
   User Macros
   Coordinate Rotation & Scaling
   Spindle Orientation
   High Speed Machining
   750 MB Expanded Memory
   Second Home Button
   All Available Manuals

General Specifications:
   Table Size:                            24.8" x 19.7"
   X-Axis Travel:                         30"
   Y-Axis Travel:                         20"
   Z-Axis Travel:                         20"
   B-Axis Trunnion Tilt:                  -35 - 110
   C-Axis:                                .001 Degree
   Spindle Speed:                         15,000 RPM
   Spindle Motor:                         30 HP
   Spindle Taper:                         CAT 40
   Turret Positions:                      40

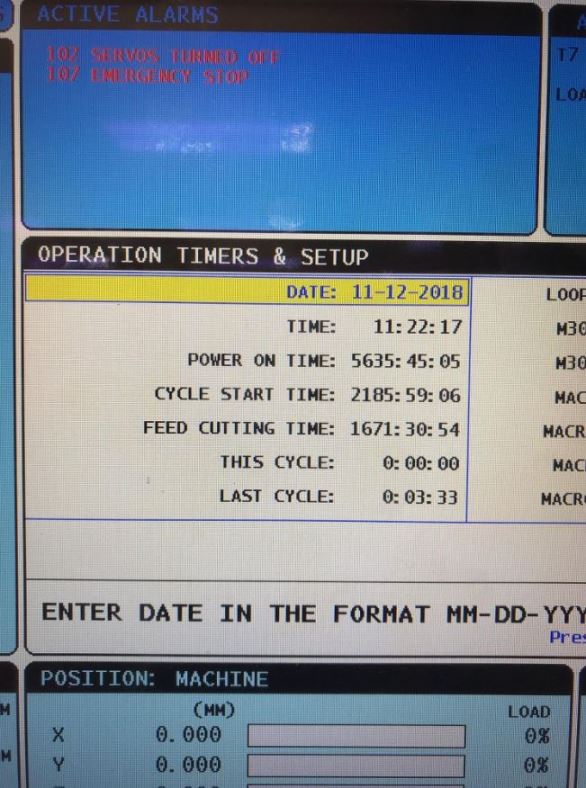

Hours:
   Power On:                              5,635
   Cycle Start:                           2,185
   Cutting:                               1,671

Machine Dimensions:                       162" x 113" x 120"
Machine Weight:                           19,200 Lbs
