To the best of our knowledge all details listed below are deemed correct.  It

is the Buyer's responsiblity to confirm all details prior to purchase.

-------------------------
Excellent Condition and top quality performance as this machine
is built in the same plant as Mori Seiki machines
==================================================

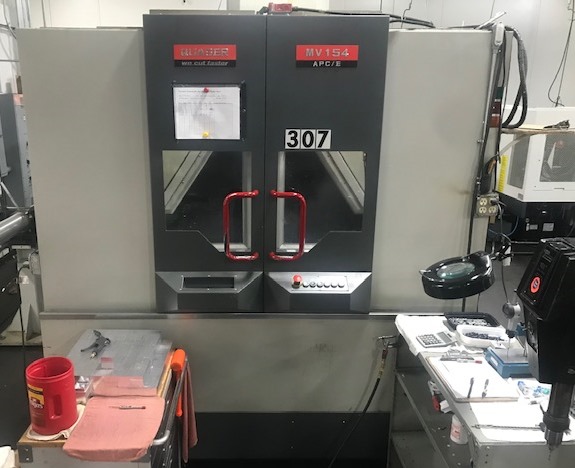

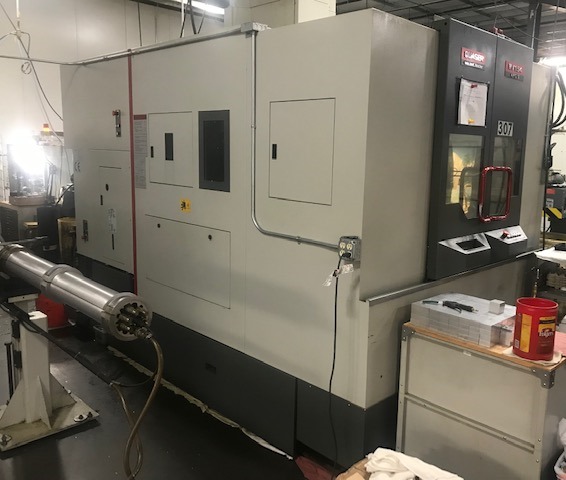

This machine is a 2-Pallet Switcher type Vertical Machining Center

Equipped with (must be verified by buyer):
  Fanuc 0i-MD Control W/(2)

   -40 Block Look Ahead / 1280 Meters Of Memory
   -Remote Manual Pulse Generator (MPG)
   -(2 ea) Ethernet RJ45 and (1) RS232 port
   -PCMCIA Slot For Memory Expansion & Modem
  12,000 RPM High-Low Spindle Speed, AC Digital Servo & Spindle Drives
  Spindle Chiller
  290 psi Through Spindle Coolant
  Air Blow Through Spindle / Coolant Gun
  Ceiling, Saddle and Wand Wash Down
  48 Tool Swing Arm Type ATC

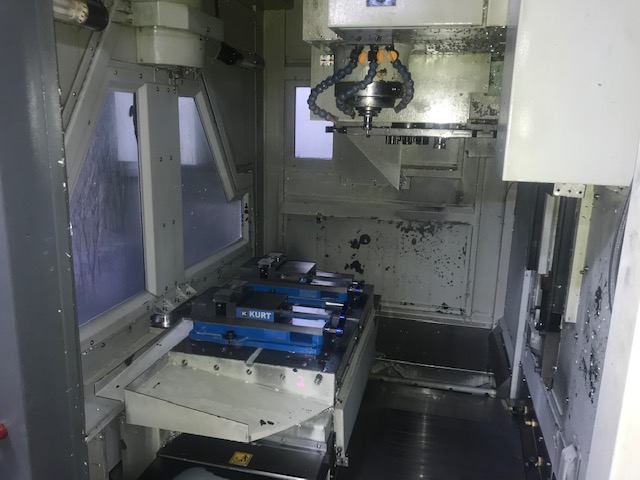

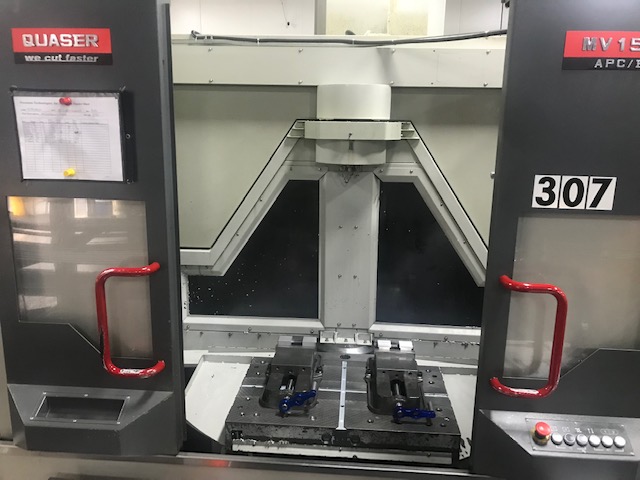

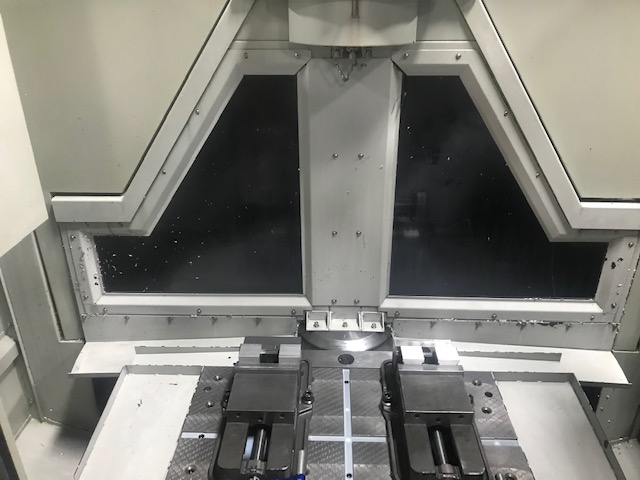

  2 Pallet Swing Type APC System
  HRV Servo Drive Technology
  Fine ACC and DEC Control Function
  AI Contouring Control
  Rigid Tapping & Helical Interpolation Function
  High Quality Rigid Meehanite Casting
  Dual Chip Augers AND Chip Conveyor
  Door Interlocks
  Manual Pulse Generator (MPG)

General Specifications:

HEADSTOCK:
  Motor:                                      FANUC AC Digital Spindle
  Horse Power:                                20 HP / Belt Drive
  Maximum Spindle Speed:                      12,000 RPM
  Spindle Center to Pallet Surface:           5.9" - 27.9"

PALLET:
  Size:                                       31" x 19.5"
  No. of Pallets:                             2 pallets

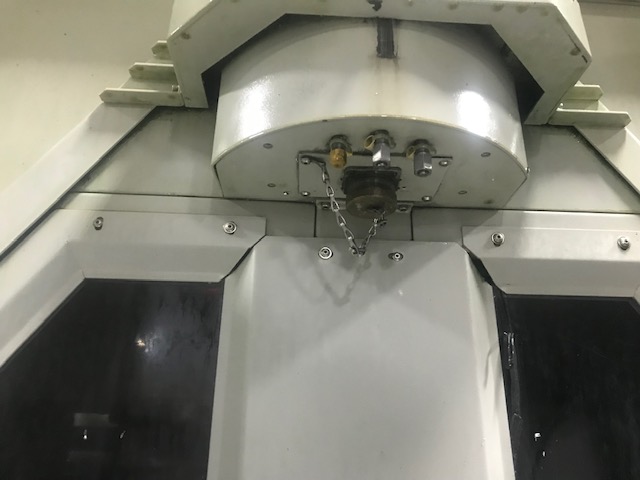

  Pallet Indexer:                             180 Degrees
  Max. Work Piece Size:                       31.4" x 19.6" x 14.5"

ATC SYSTEM (2-point Face & taper contact on spindle (AKA Big Plus)
  Tool Type:                                  CT-40 (BT-40 option)
  Tool Selection:                             Random Programmable
  Magazine Tool Capacity:                     48 (race track type)

AXES SPECIFICATIONS:
  Travel, Rapid Rate, Cutting Feed)
  X Axis  27.5" 1,260 ipm / 787 ipm
  Y Axis  19.6" 1,260 ipm / 787 ipm
  Z Axis  22.0" 1,260 ipm / 787 ipm

GENERAL:
Machine Net Weight(approx):                   19,700 lbs. (with chip conveyor)
Power Consumption:                            25 kVA
Floor Spacing (W x D x H) (approx):           106" x 157" x 118"
Chip Conveyor/Tank:                           125" x 92" x 62"; 2,000 lbs
Chiller:                                      24" x 24" x 51";    450 lbs

Machine:  146" x 94" x 105" 18,739 lbs
Chip Pan 1:  116" x 22" x 36" 395 lbs
Chip Pan 2:  116" x 22" x 23" 440 lbs
Coolant/Chip Pan:  108" x 49" x 61" 1,380 lbs
Chiller:  31" x 29" x 53" 1,000 lbs
