64"X, 32"Y, 30"Z, Haas VF6B/40, 2004, Probing Package, 10,000 RPM, 4th Wired Automatics & Machinery Co Inc

64"X, 32"Y, 30"Z, Haas VF6B/40, 2004, Probing Package, 10,000 RPM, 4th Wired Our stock number: 401302

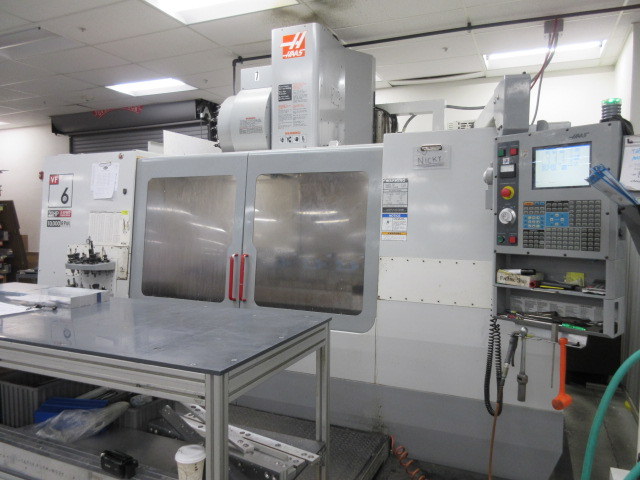

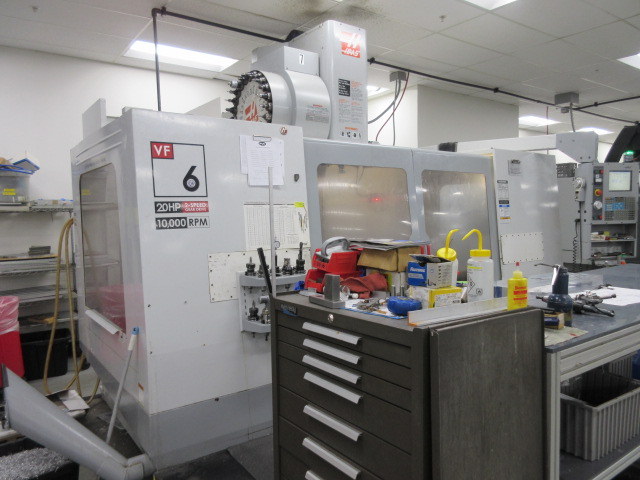

64 X, 32 Y, 30 Z, Haas VF6B/40, 2004, Probing Package, 10,000 RPM, 4th Wired

Click on picture below for larger version

Specifications from OEM brochure and equipped with are described to the best

of our knowledge. ALL items should be verified by buyer.

Equipped With:

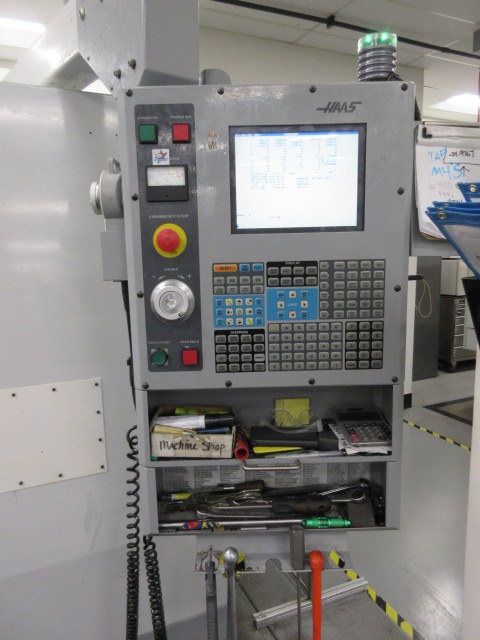

   Haas 32 Bit CNC Control
   RS-232C Port Interface for DNC operation
   24+1 Position Side Mount Tool Changer
   Probing Package (Tool and Part Probes)

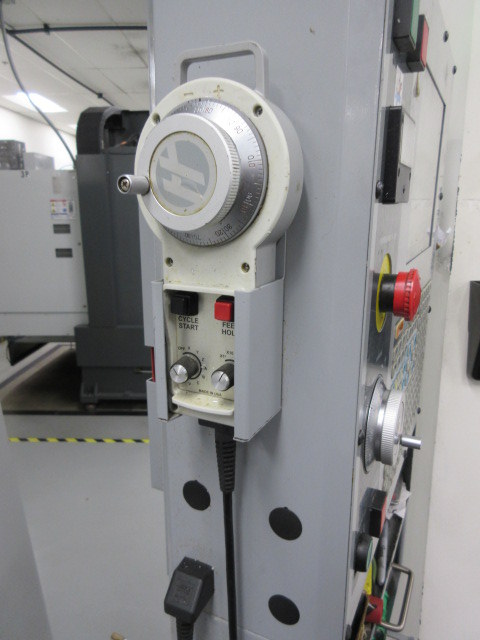

   Rmote Jog Handle/Remote Pulse Generator
   Wired for 4th Axis
   Chip Removal Auger
   Fully Enclosed Splash & Safety Gaurding
   Standard Coolant System with Tank & Pump
   Coolant Oil Skimmer
   All Available Manuals

**No Tooling or Vices Included**

General Specifications:

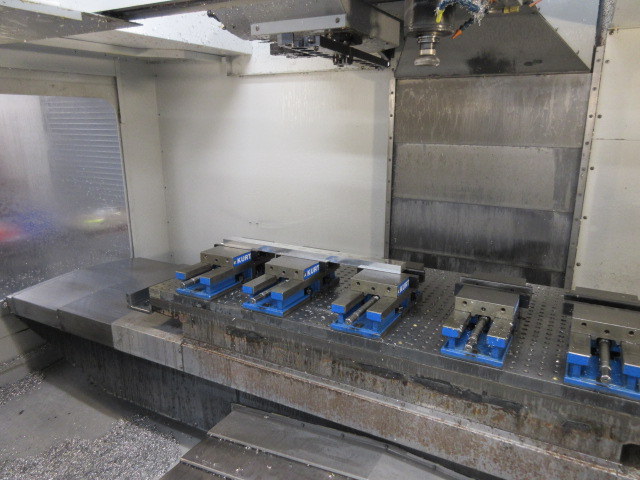

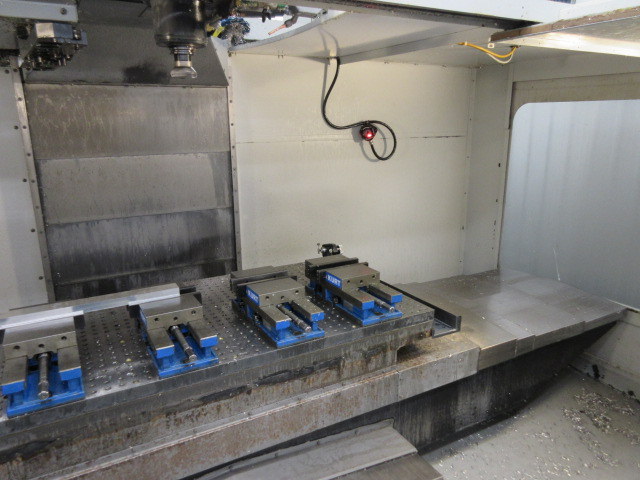

   Table Size:                            64" x 28"
   Table Load:                            4,000 lbs
   Spindle Nose to Table Top:             4" - 34"
   X-Axis Travel:                         64"
   Y-Axis Travel:                         32"
   Z-Axis Travel:                         30"
   Rapid Traverse (X-Axis):               540 IPM
   Rapid Traverse (Y&Z Axis):             600 IPM
   Cutting Feed Rate:                     0.1 - 300 IPM
   Spindle Speed:                         10,000 RPM
   Spindle Taper:                         CAT 40
   Spindle Motor:                         20 HP
   Tool Changer Capacity:                 24+1 Stations


Machine Dimensions:                       156" x 94" x 129"
Machine Weight:                           22,500 lbs
