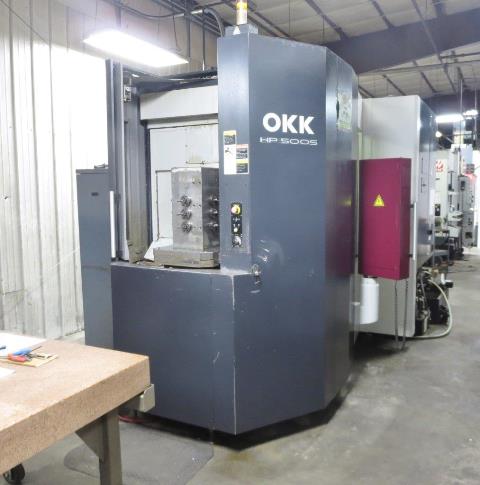

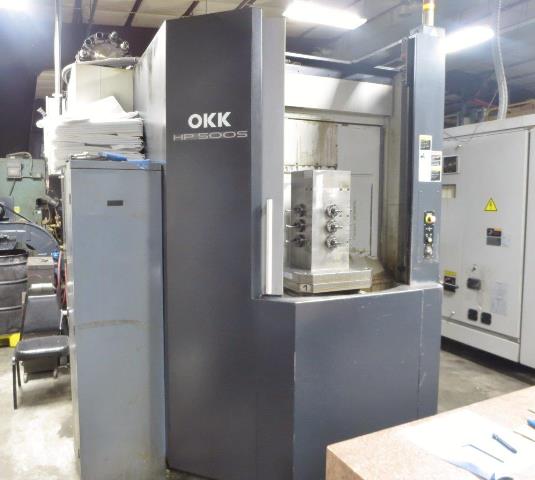

24.8"X, 24.4"Y, 27.9"Z, OKK HP500S, 2006, Fanuc 180i, Conveyor, 12,000 RPM   Our stock number: 400386

24.8 X, 24.4 Y, 27.9 Z, OKK HP500S, 2006, Fanuc 180i, Conveyor, 12,000 RPM

Click on picture below for larger version
24.8 X, 24.4 Y, 27.9 Z, OKK HP500S, 2006, Fanuc 180i, Conveyor, 12,000 RPM24.8 X, 24.4 Y, 27.9 Z, OKK HP500S, 2006, Fanuc 180i, Conveyor, 12,000 RPM24.8 X, 24.4 Y, 27.9 Z, OKK HP500S, 2006, Fanuc 180i, Conveyor, 12,000 RPM24.8 X, 24.4 Y, 27.9 Z, OKK HP500S, 2006, Fanuc 180i, Conveyor, 12,000 RPM
24.8 X, 24.4 Y, 27.9 Z, OKK HP500S, 2006, Fanuc 180i, Conveyor, 12,000 RPM24.8 X, 24.4 Y, 27.9 Z, OKK HP500S, 2006, Fanuc 180i, Conveyor, 12,000 RPM24.8 X, 24.4 Y, 27.9 Z, OKK HP500S, 2006, Fanuc 180i, Conveyor, 12,000 RPM

To View A Video Demonstration Of This Video, Use The Link Below.

https://youtu.be/_AsofEI_J0k

All Information From OEM Brochure Should Be Verifed By Buyer:

Equipped With:

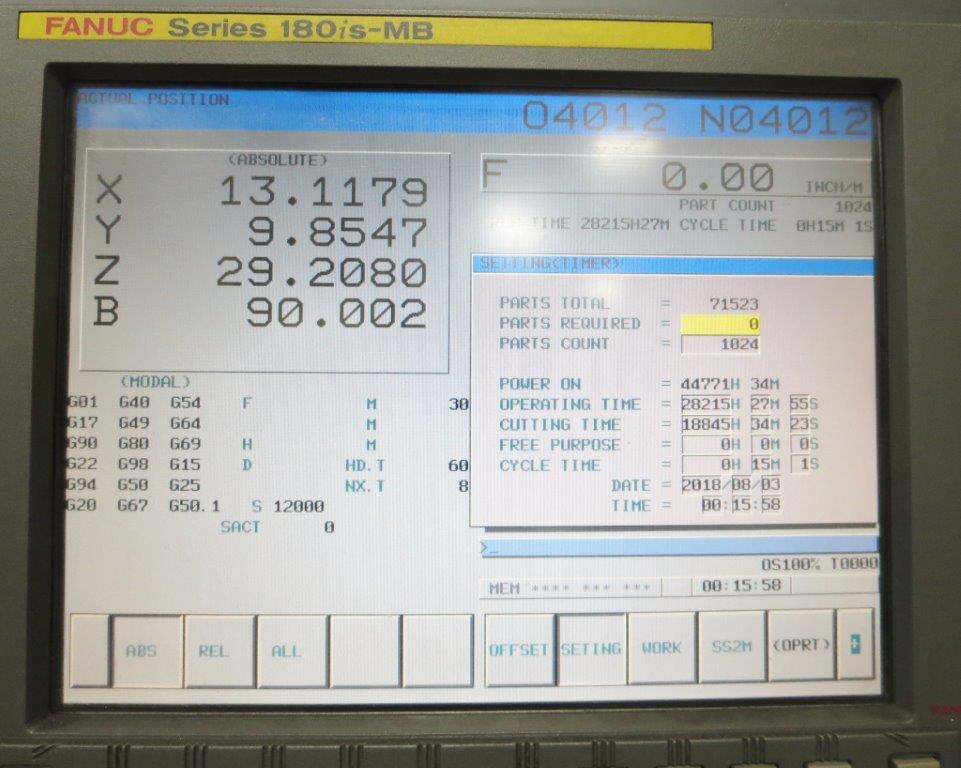

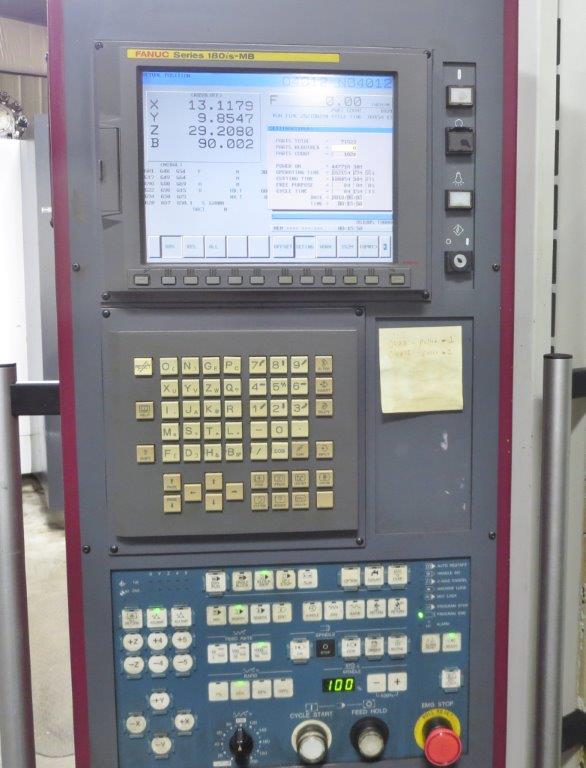

   Fanuc 180i CNC Control

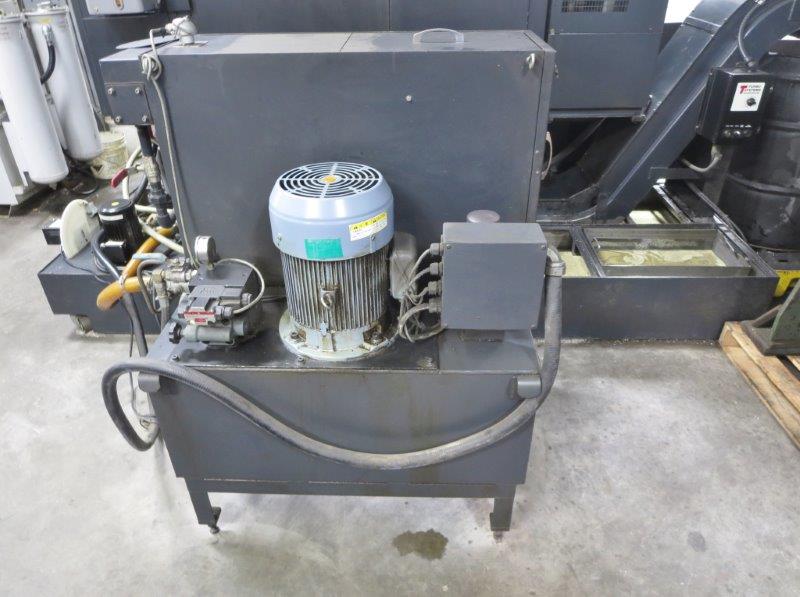

   High Pressure Coolant Through Spindle (1,000 PSI)
   1-Degree Indexing
   60 Tool Positions
   Overhead Shower Coolant
   Tool Breakage Detection
   Chip Conveyor
   Box Way

Specifications:
   Pallet Size:                           19.7" x 19.7"
   Pallet Indexing:                       1 Degree
   Number Of Pallets:                     2
   X-Axis Travel:                         24.8"
   Y-Axis Travel:                         24.4"
   Z-Axis Travel:                         27.9"
   Spindle Speed:                         12,000 RPM
   Spindle Motor:                         30 HP
   Spindle Taper:                         CT-40
   Rapid Traverse Rate:                   2,362 IPM
   Tool Postions:                         60-ATC

*Machine Cut Primarily Stainless Steel
*In Plant, Under Power
