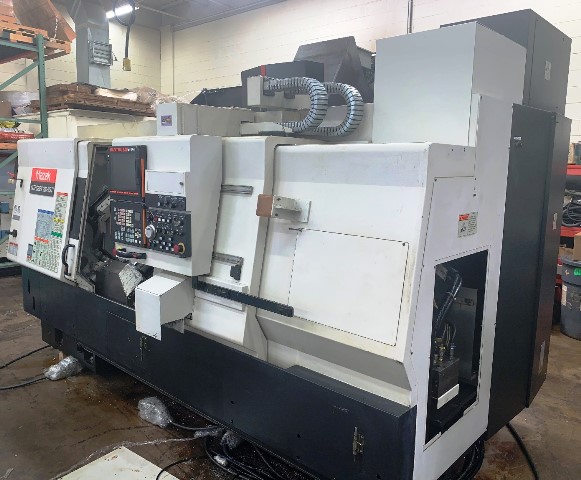

MAZAK INEGREX 200IIIST, FUSION 640MT, 2", 2003, B-Axis Milling Head, HP, Iemca   Our stock number: 402880

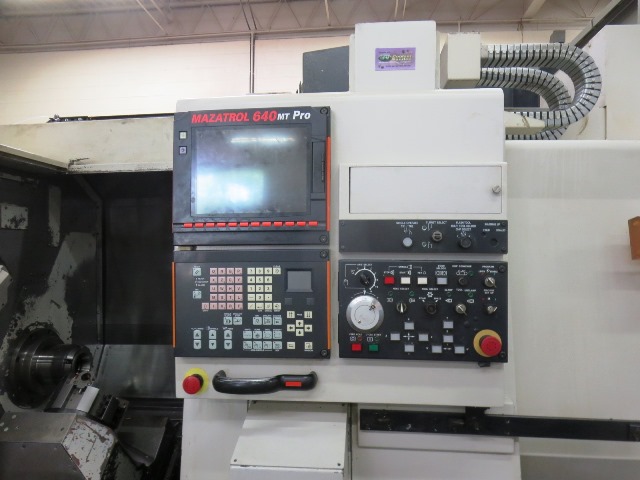

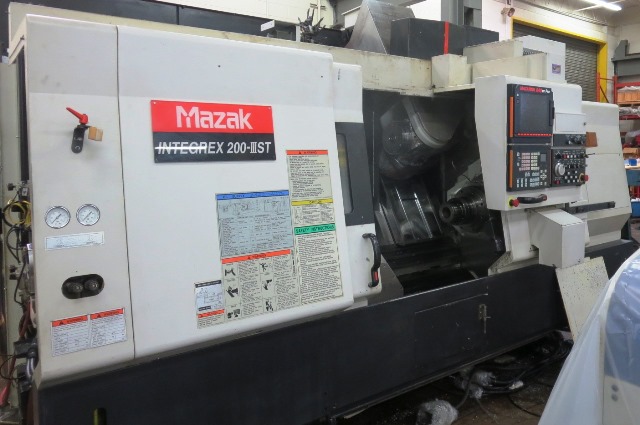

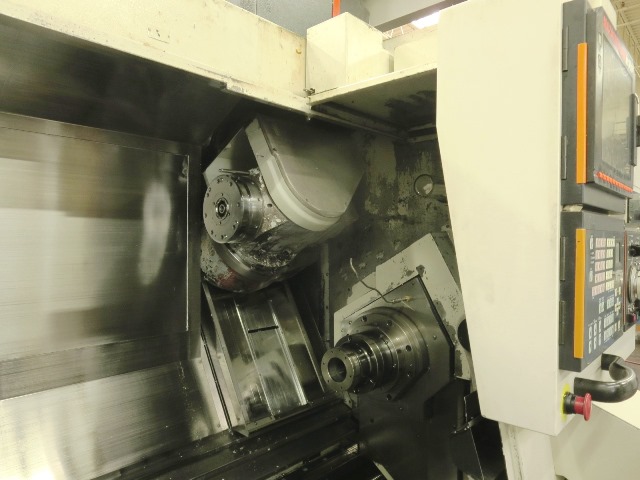

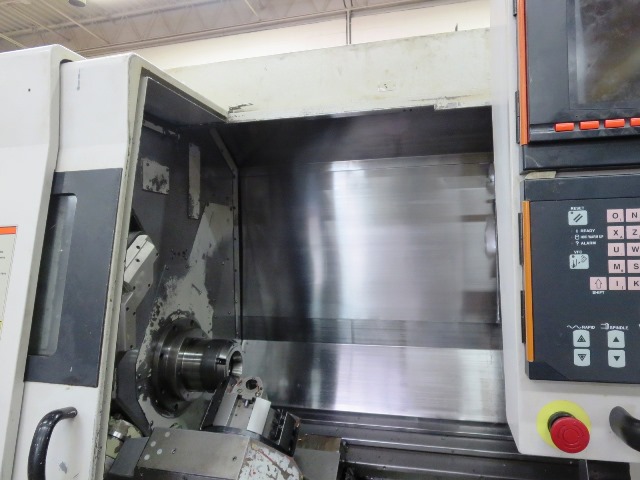

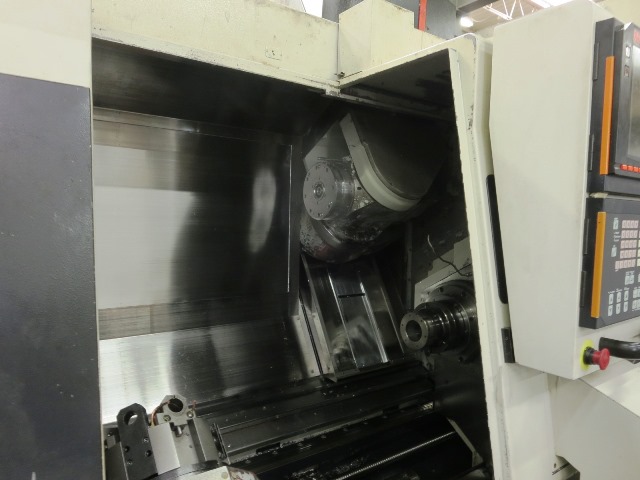

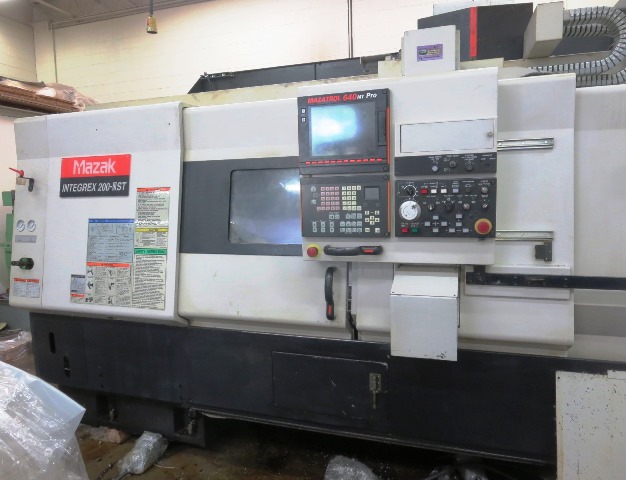

MAZAK INEGREX 200IIIST, FUSION 640MT, 2 , 2003, B-Axis Milling Head, HP, Iemca

Click on picture below for larger version
MAZAK INEGREX 200IIIST, FUSION 640MT, 2 , 2003, B-Axis Milling Head, HP, IemcaMAZAK INEGREX 200IIIST, FUSION 640MT, 2 , 2003, B-Axis Milling Head, HP, IemcaMAZAK INEGREX 200IIIST, FUSION 640MT, 2 , 2003, B-Axis Milling Head, HP, IemcaMAZAK INEGREX 200IIIST, FUSION 640MT, 2 , 2003, B-Axis Milling Head, HP, Iemca
MAZAK INEGREX 200IIIST, FUSION 640MT, 2 , 2003, B-Axis Milling Head, HP, IemcaMAZAK INEGREX 200IIIST, FUSION 640MT, 2 , 2003, B-Axis Milling Head, HP, IemcaMAZAK INEGREX 200IIIST, FUSION 640MT, 2 , 2003, B-Axis Milling Head, HP, IemcaMAZAK INEGREX 200IIIST, FUSION 640MT, 2 , 2003, B-Axis Milling Head, HP, Iemca

To the best of our knowledge all details listed below are deemed correct.
It is the buyers responsibility to confirm ALL details prior to purchase.

Specifications
  Main Spindle Chuck                        Collet
  Maximum Swing                             26"
  Maximum Machining Length                  40"
  Maximum Bar Size                          2"
  Main Spindle HP                           AC 20/30
  Main Spindle RPM                          5,000
  Main Spindle Nose                         A2-6
  Main Spindle Bore                         2.99"
  Main Spindle Min. Indexing Increment      0.0001 Deg.
  Spindle Taper                             KM 63
  2nd Spindle HP                            AC 20/25
  2nd Spindle RPM                           5,000
  2nd Spindle Chuck                         Collet
  Number of Tool Stations                   40
  Maximum Tool Diameter                     3.54"
  Max Tool Adjacent Pockets Empty           4.72"
  Maximum Tool Length                       9.84"
  Maximum Tool Weight                       22 lbs
  Lower Turret Positions                    9
  X-Axis Travel                             22.83"
  Y-Axis Travel                             +/- 3.15"
  Z-Axis Travel                             41.1"
  B-Axis Travel                             225 Deg.
  W-Axis Travel                             41.34"

Equipped With:
  Microcentric CB65-ND/A6 Collet Chuck
  Automatic Parts Catcher
  Workpiece Conveyor for parts Catcher
  Thru Hole Chuck Package for 2nd Spindle
  Chip Conveyor
  Mazak Super Flow II ( 1000 PSI ) Upper Turret
  213 PSI Lower Turret
  Coolant Temperarture Control System
  Iemca VIP 80E Barfeed
  Overload Detection
  Tool Breakage Detection Inside The Magazine
