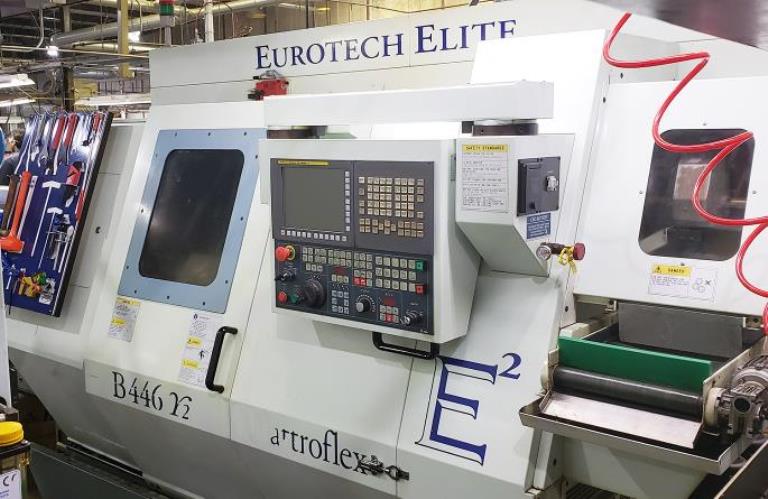

Equipped With:
  Iemca Boss 551E 12' magazine Bar Feed

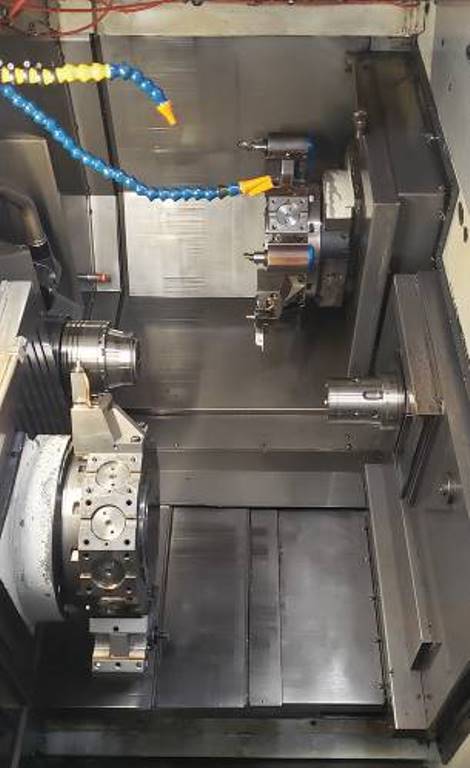

  Approx Tooling

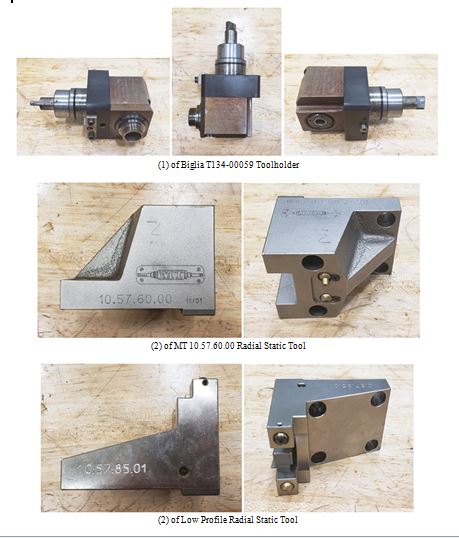

    (1) of Biglia T134-00059 Toolholder
    (2) of MT 10.57.60.00 Radial Static Tool
    (2) of Low Profile Radial Static Tool

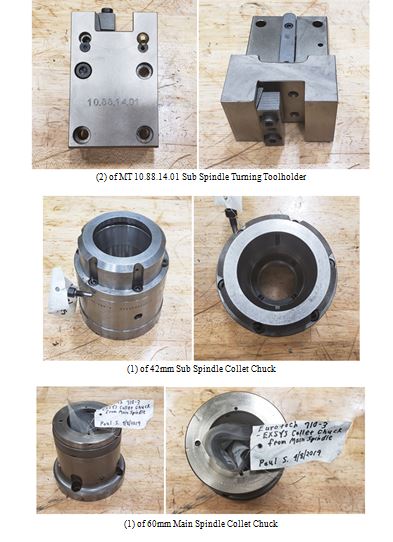

    (2) of MT 10.88.14.01 Sub Spindle Turning Toolholder

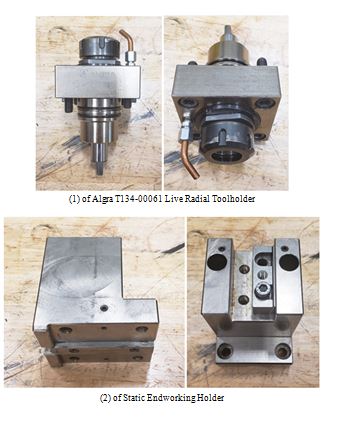

    (1) of Algra T134-00061 Live Radial Toolholder
    (2) of Static Endworking Holder
    (1) of 42mm Sub Spindle Collet Chuck
    (1) of 60mm Main Spindle Collet Chuck


General Specifications As Per Brochure (Please Verify Details):

Number of Axes:                                8

Bar Capacity:                                  2"

Machining Diameter:                            9.6"
Swing Over Diameter:                           20"

Main Spindle
Spindle Speed:                                 5,000 RPM
Spindle Nose:                                  5"
Spindle Bore:                                  2.17"
Chuck Diameter:                                8"
Motor Power:                                   20 HP
C-Axis Least Input Value:                      0.001 Deg.

Sub Spindle
Spindle Speed:                                 5,000 RPM
Spindle Nose:                                  5"
Spindle Bore:                                  2.17"
Chuck Diameter:                                6.5"
Motor Power:                                   15 HP
C-Axis Least Input Value:                      0.001 Deg.
Clear Shift Travel:                            4.72"

Upper Turret
Number of Stations:                            12
Number of Static Tools:                        96
Turret Indexing:                               0.10
Number of Live Tools:                          24
Live Tool Speeds:                              4,000 - 60,000 RPM
Motor Power (30 Min Rating):                   5 Geared

Lower Turret
Number of Stations:                            12
Number of Static Tools:                        96
Turret Indexing:                               0.10
Number of Live Tools:                          24
Live Tool Speeds:                              4,000 - 60,000 RPM
Motor Power:                                   5 Geared

Cooling System Tank Capacity:                  120 Gallons

Machine Dimensions:                            173" x 85" x 89"
Machine Weight:                                15,855

Equipped With:

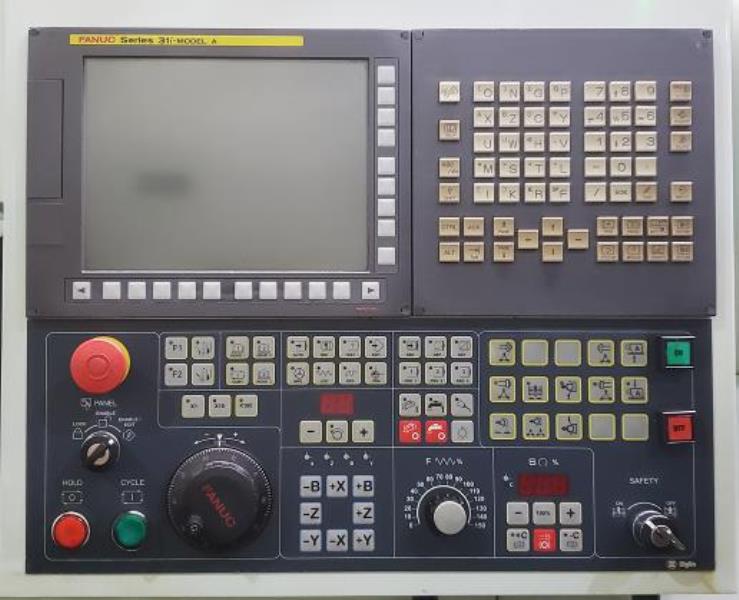

  Fanuc 31iT CNC Control, 8-axis (to be confirmed)
  Spindle option for 2" cap
  Spindle liner
  FMB Turbo 5-55 Magazine Bar Loader (set up for 2" cap); w/ remnant retract
  Full Length Vari-Speed Parts Conveyor w/90 degree exit conveyor
  Dual Turrets
  Coolant-thru-the-turret option
  (2) Renishaw Tool Setting Probes
  Y-Axis on Upper/Lower Turret
  Sub Spindle
  Main & Sub Spindle Collet Chucks
  3-High flow coolant pumps
  CoolBlaster Dual High Pressure Coolant System w/ Filter (1/turret)
  Accu Chiller Coolant Refrigeration System w/ Filter
  Combination Chip Conveyor/Coolant-chip tank
  approx list of Tooling (to be confirmed)
  (13) OD turning tools
  (2)  2-position ID Tool Holders
  (2)  4-position ID Tool Holder
  (6)  1-position ID Tool Holder
  (6)  1-position Rotary X-axis Mill-Drill Tool Holders
  (4)  Adjustable Z-axis Live Angle Tool
  (4)  Z-Axis Rotary Tools
  (3)  2-Position X-Axis Mill/Drill Tools
