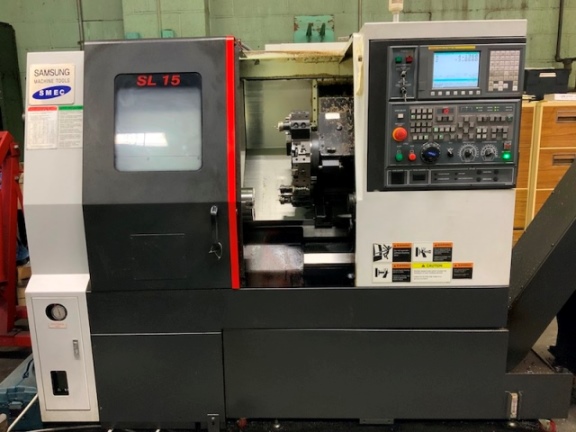

Samsung SL-15, Fanuc 0i-Mate, 6"Chk, 1 3/4", 2016, Tailstock, Tool Setter   Our stock number: 402100

Samsung SL-15, Fanuc 0i-Mate, 6 Chk, 1 3/4 , 2016, Tailstock, Tool Setter

Click on picture below for larger version
Samsung SL-15, Fanuc 0i-Mate, 6 Chk, 1 3/4 , 2016, Tailstock, Tool SetterSamsung SL-15, Fanuc 0i-Mate, 6 Chk, 1 3/4 , 2016, Tailstock, Tool SetterSamsung SL-15, Fanuc 0i-Mate, 6 Chk, 1 3/4 , 2016, Tailstock, Tool Setter

To the best of our knowledge all details listed below are deemed correct.
It is the buyers responsibility to confirm ALL details prior to purchase.

Equipped With:

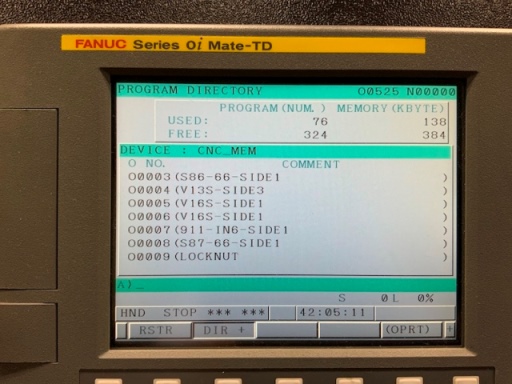

   Fanuc 0i-MATE TD CNC Control
   8.4" TFT Color LCD Monitor
   Programmable Tailstock
   Tool Setter
   Chip Conveyor
   6" Chuck
   Bar Feed Interface

General Specifications:
   Swing Over Bed/Cross Slide:            17.72" / 11.81"
   Turning Length:                        11.81"
   Turning Diameter:                      11.81"
   X-Axis Travel:                         7.09"
   Z-Axis Travel:                         13"
   Spindle Speed:                         6,000 RPM
   Spindle Bore:                          2.09"
   Bar Capacity:                          1.77"
   Spindle Motor:                         20/15 HP
   Spindle Nose:                          A2-6
   Turret Stations:                       10 Stations

Machine Dimensions:                       133" x 60"
Machine Weight:                           8,175 lbs
